Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS22921YZPRIC PWR SWITCH P-CHAN 1:1 6DSBGA |
139,757 |
|
Datasheet |
6-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 0.9V ~ 3.6V | Not Required | 2A | 14mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA |
|
TPS2546RTERIC PWR SWITCH N-CHAN 1:1 16WQFN |
8,031 |
|
Datasheet |
16-WFQFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 3A | 73mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WQFN (3x3) |
|
DRDNB21D-7IC PWR DRIVER BIPOLAR 1:1 SOT363 |
3,246 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | Low Side | Bipolar | On/Off | 50V (Max) | Not Required | 100mA | - | - | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|

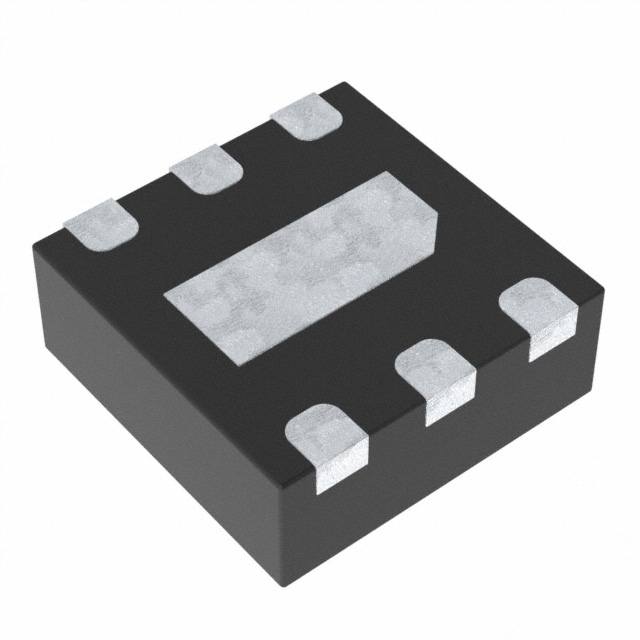

AP22653FDZ-7LOAD SWITCH,W-DFN2020-6,T&R,3K |
338,904 |
|
Datasheet |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 3.5V ~ 5.5V | Not Required | 2.1A | 65mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | W-DFN2020-6 (Type A1) |
|
|
AP22652FDZ-7LOAD SWITCH,W-DFN2020-6,T&R,3K |
172,151 |
|
Datasheet |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 3V ~ 5.5V | Not Required | 2.1A | 65mOhm | Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | W-DFN2020-6 (Type A1) |
|
AP2511MP-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
55,591 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2.5A | 70mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP-EP |
|

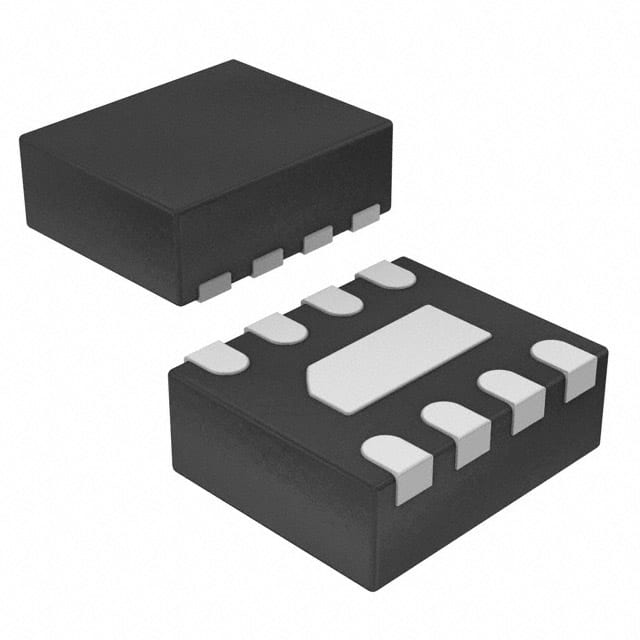

SIP32414DNP-T1-GE4IC PWR SWITCH N-CHAN 1:1 8TDFN |
9,450 |
|
Datasheet |
8-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 1.1V ~ 5.5V | Not Required | 2.4A | 62mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Reverse Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-TDFN (2x2) |
|
AP22653AFDZ-7LOAD SWITCH DFN2020 |
9,073 |
|
Datasheet |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 3V ~ 5.5V | Not Required | 2.1A | 65mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | W-DFN2020-6 (Type A1) |
|
ULN2003ANTRANS 7NPN DARL 50V 0.5A 16DIP |
7,578 |
|
Datasheet |
16-DIP (0.300", 7.62mm) | ULx200xA | Tube | Active | Relay, Solenoid Driver | 7 | 1:1 | Low Side | Darlington | Parallel | 50V (Max) | Not Required | 500mA | - | Inverting | - | - | -40°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
MIC2004-1.2YM5-TRIC PWR SWITCH P-CHAN 1:1 SOT23-5 |
4,397 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.2A | 70mOhm | Non-Inverting | Load Discharge | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
XC8110AA01MR-GLOAD SWITCH IC WITH IDEAL DIODE |
3,272 |
|
Datasheet |
SC-74A, SOT-753 | XC8110 | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.5V ~ 6V | Not Required | 500mA | 430mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 105°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
TPS22963CYZPRIC PWR SWITCH N-CHAN 1:1 6DSBGA |
2,800 |
|
Datasheet |
6-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1V ~ 5.5V | Not Required | 3A | 13.3mOhm | Non-Inverting | Slew Rate Controlled | Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA (1.39x.89) |
|

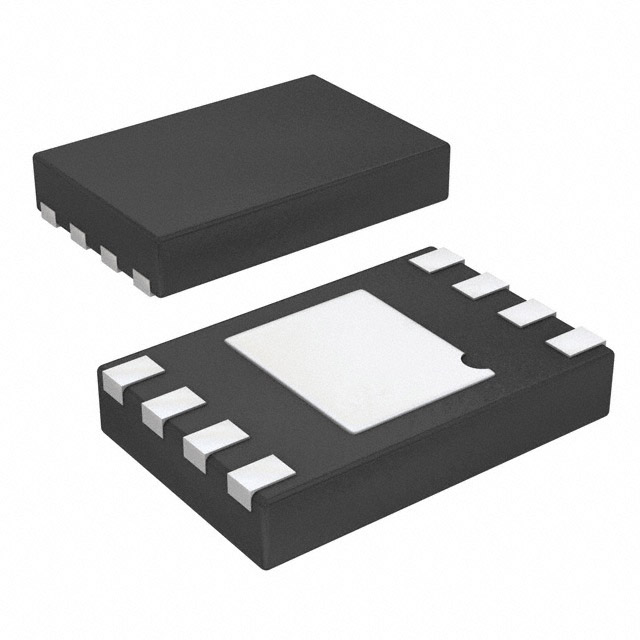

AP22800HB-7IC PWR SWITCH N-CHAN 1:1 8UDFN |
157,039 |
|
Datasheet |
8-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.5V ~ 5.5V | Not Required | 4A | 19mOhm | Non-Inverting | Power Good, Slew Rate Controlled | UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2116-8 |
|
AP2161WG-7IC PWR SWITCH P-CHAN 1:1 SOT25 |
83,861 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 95mOhm | Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
AP22814ASN-7IC PWR SWITCH P-CHAN 1:1 6UDFN |
31,589 |
|
Datasheet |
6-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 3A | 50mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2020-6 |
|
TPS22919DCKTIC PWR SWITCH N-CHAN 1:1 SC70-6 |
11,282 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.6V ~ 5.5V | Not Required | 1.5A | 89mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Short Circuit | -40°C ~ 105°C | - | - | Surface Mount | SC-70-6 |
|
ULN2003V12T16-13IC PWR RELAY N-CHAN 1:1 16TSSOP |
9,272 |
|
Datasheet |
16-TSSOP (0.173", 4.40mm Width) | ULx200xA | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 7 | 1:1 | Low Side | Darlington | Parallel | 20V (Max) | Not Required | 700mA | - | Inverting | - | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TPS2041BDRIC PWR SWITCH N-CHAN 1:1 8SOIC |
3,254 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 70mOhm | Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AP22811AW5-7IC PWR SWITCH P-CHAN 1:1 SOT25 |
97,722 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 50mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
TPS22960DCNRIC PWR SWITCH P-CHAN 1:1 SOT23-8 |
50,097 |
|
Datasheet |
SOT-23-8 | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | P-Channel | On/Off | 1.62V ~ 5.5V | Not Required | 500mA | 342mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
Power Distribution Switches, Load Drivers Electronic Components
Explore Power Distribution Switches, Load Drivers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
