Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

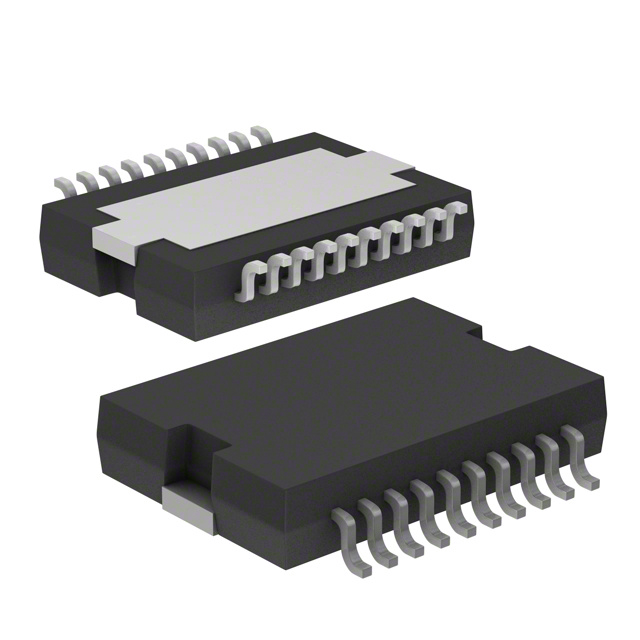

BTS840S2IC PWR SWITCH N-CHAN 1:1 DSO-20 |
0 |
|
Datasheet |
20-PowerSOIC (0.433", 11.00mm Width) | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 11A | 27mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-20-12 |
|
TLE4226GNUMA1IC PWR SWTCH BIPOLAR 1:1 PDSO-24 |
0 |
|
Datasheet |
24-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 6 | 1:1 | Low Side | Bipolar | On/Off | 4.75V ~ 5.25V | Not Required | 50mA | - | Non-Inverting | - | Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-24-3 |
|
TLE6217GAUMA1IC PWR SWITCH N-CHAN 1:1 DSO-20 |
0 |
|
Datasheet |
20-PowerSOIC (0.433", 11.00mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | Low Side | N-Channel | On/Off | 4.8V ~ 32V | Not Required | 3A, 5A | 200mOhm, 350mOhm | Non-Inverting | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-20-12 |
|

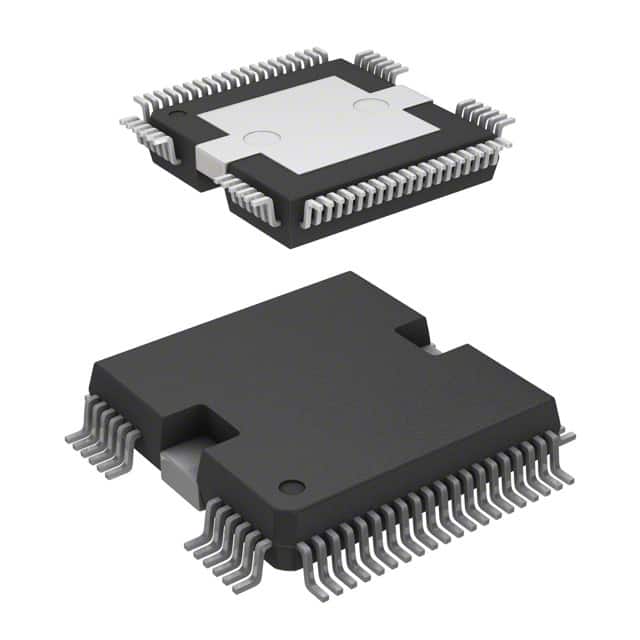

TLE6244XAUMA1IC PWR SWITCH N-CHAN 1:1 MQFP64 |
0 |
|
Datasheet |
64-BQFP Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 18 | 1:1 | Low Side | N-Channel | SPI | 4.5V ~ 5.5V | - | - | - | - | - | Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-MQFP-64-10 |
|
|
TLE7232GXUMA1IC PWR DRIVER N-CHAN 1:8 PDSO-24 |
0 |
|
Datasheet |
24-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:8 | Low Side | N-Channel | SPI | 4.5V ~ 5.5V | 3V ~ 5.5V | 240mA | 1Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-24-3 |
|
FPF2172IC PWR SWTCH P-CH 1:1 MICROFT3X3 |
0 |
|
Datasheet |
6-WDFN Exposed Pad | IntelliMAX™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 200mA | 125mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | MicroFET 3x3mm |
|
MCZ33298EGIC PWR SWITCH N-CHAN 1:8 24SOIC |
0 |
|
Datasheet |
24-SOIC (0.295", 7.50mm Width) | - | Tube | Obsolete | General Purpose | 8 | 1:8 | Low Side | N-Channel | SPI | 5.5V ~ 26.5V | 4.5V ~ 5.5V | 3A | 350mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SOIC |
|
IPS7091GPBFIC SWITCH IPS HIGH SIDE 8-SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | - | 1 | - | High Side | - | - | 6V ~ 35V | - | 1.5A | 80mOhm | Non-Inverting | - | - | -40°C ~ 150°C | - | - | Surface Mount | 8-SOIC |
|
MLD2N06CLT4GIC PWR DRIVER N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | SMARTDISCRETES™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 58V (Max) | Not Required | - | 300mOhm | Non-Inverting | - | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
MLP1N06CLGIC PWR DRIVER N-CHAN 1:1 TO220AB |
0 |
|
Datasheet |
TO-220-3 | SMARTDISCRETES™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 59V (Max) | Not Required | - | 590mOhm | Non-Inverting | - | - | -50°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
NID9N05CLGIC PWR DRIVER N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tube | Obsolete | Relay, Solenoid Driver | 1 | 1:1 | Low Side | N-Channel | On/Off | 52V (Max) | Not Required | 9A | 90mOhm | Non-Inverting | - | Over Voltage | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
NIF5003NT3IC PWR DRIVER N-CHAN 1:1 SOT223 |
0 |
|
Datasheet |
TO-261-4, TO-261AA | HDPlus™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 14A | 53mOhm | Non-Inverting | Auto Restart, Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 (TO-261) |
|
NTGD1100LT1IC PWR DRIVER P-CHAN 1:1 6TSOP |
0 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 8V | - | 3.3A | 40mOhm | - | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
_4040233^C.jpg)
|
DRV101TG3IC PWR DRVR BIPOLAR 1:1 TO220-7 |
0 |
|
Datasheet |
TO-220-7 Formed Leads | - | Tube | Obsolete | Relay, Solenoid Driver | 1 | 1:1 | Low Side | Bipolar | On/Off | 9V ~ 60V | Not Required | 1.9A | - | Non-Inverting | Internal PWM, Status Flag | Current Limiting (Fixed), Over Temperature | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-220-7 |
|
MAX8588ETM+IC PMIC HI EFF LOW IQ 48-TQFN |
0 |
|
- |
- | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
IPS1041LPBFIC PWR SWITCH N-CHAN 1:1 SOT223 |
0 |
|
Datasheet |
TO-261-4, TO-261AA | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 1.95A | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
IPS1042GPBFIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 700mA | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
AUXHA1051LTRIC PWR SWITCH N-CHAN 1:1 SOT223 |
0 |
|
Datasheet |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 1.4A | 160mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
98-0478PBFIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 500mA | 160mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IPS6041GPBFINTELLIGENT PWR SW 1CH 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | - | 1 | - | High Side | - | - | 6V ~ 28V | - | 1.6A | 110mOhm | Non-Inverting | - | - | -40°C ~ 150°C | - | - | Surface Mount | 8-SOIC |
