Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FPF1203LUCXINTELLIMAX ULTRA-SMALL, SLEW-RAT Fairchild Semiconductor |
624,534 |
|
Datasheet |
4-UFBGA, WLCSP | IntelliMAX™ | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 5.5V | Not Required | 2.2A | 45mOhm | Inverting | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|

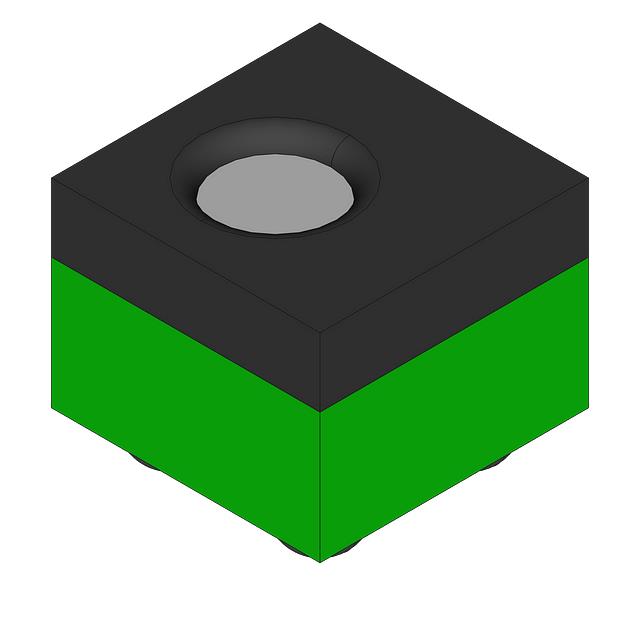

FPF1207UCXINTELLIMAX ULTRA-SMALL, SLEW-RAT Fairchild Semiconductor |
182,202 |
|
Datasheet |
4-UFBGA, WLCSP | IntelliMAX™ | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 4V | Not Required | 1.2A | 50mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|
|
FPF1208UCXINTELLIMAX ULTRA-SMALL, SLEW-RAT Fairchild Semiconductor |
132,223 |
|
Datasheet |
4-UFBGA, WLCSP | - | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 4V | Not Required | 1.2A | 150mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|
|
FPF1205UCXINTELLIMAX ULTRA-SMALL, SLEW-RAT Fairchild Semiconductor |
105,458 |
|
Datasheet |
4-UFBGA, WLCSP | IntelliMAX™ | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 4V | Not Required | 1.2A | 75mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|
|
FPF1206UCXINTELLIMAX ULTRA-SMALL, SLEW-RAT Fairchild Semiconductor |
29,428 |
|
Datasheet |
4-UFBGA, WLCSP | IntelliMAX™ | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 4V | Not Required | 1.2A | 75mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|
|
FPF1504UCXPOWER SUPPLY SUPPORT CIRCUIT, FI Fairchild Semiconductor |
851,118 |
|
Datasheet |
4-UFBGA, WLCSP | IntelliMAX™ | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1V ~ 3.6V | Not Required | 1.5A | 15mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
FPF1104BUFFER/INVERTER BASED PERIPHERAL Fairchild Semiconductor |
171,000 |
|
Datasheet |
4-UFBGA, WLCSP | IntelliMAX™ | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 4V | Not Required | 1.2A | 35mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
FPF1103BUFFER/INVERTER BASED PERIPHERAL Fairchild Semiconductor |
9,077 |
|
Datasheet |
4-UFBGA, WLCSP | IntelliMAX™ | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 4V | Not Required | 1.2A | 35mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
FPF1108BUFFER/INVERTER BASED PERIPHERAL Fairchild Semiconductor |
7,220 |
|
Datasheet |
4-UFBGA, WLCSP | IntelliMAX™ | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 4V | Not Required | 1.2A | 35mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
FPF2005FULL FUNCTION LOAD SWITCHES Fairchild Semiconductor |
579,859 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | IntelliMAX™ | Bulk | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 100mA | 700mOhm | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
