Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HS2950P.M29V 5A LOAD PROTECTION HOTSWITCH Semtech Corporation |
593 |
|
Datasheet |
12-UFDFN Exposed Pad | HotSwitch® | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 29V | Not Required | 5A | 25mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DFN (3x3) |
|

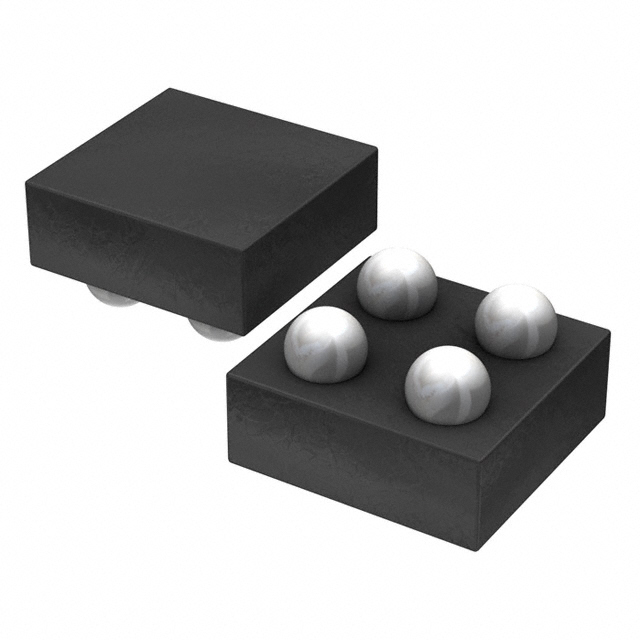

SC725CSTRTIC PWR SWITCH N-CHAN 1:1 4CSP Semtech Corporation |
8,084 |
|
Datasheet |
4-WFBGA, CSPBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.1V ~ 3.6V | Not Required | 2A | 24mOhm | - | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-CSP (0.76x0.76) |
|
TS13102-QFNRIC PWR SWITCH 1:1 16MLPQ Semtech Corporation |
3,265 |
|
Datasheet |
16-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | AC Switch | 1 | 1:1 | - | - | Clock | 60V (Max) | 4V ~ 5.5V | 2.5A | 290mOhm | - | - | Current Limiting | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MLPQ (3x3) |
|

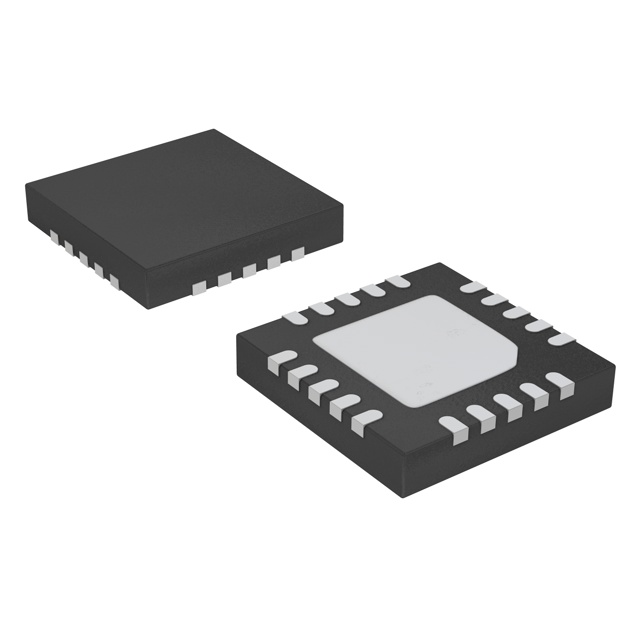

TS13101-QFNRIC PWR SWITCH 1:1 20QFN Semtech Corporation |
3,290 |
|
Datasheet |
20-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | AC Switch | 1 | 1:1 | - | - | Clock | 60V (Max) | 2.7V ~ 5.5V | 4A | 110mOhm | - | - | Current Limiting | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-QFN (4x4) |
|
|
SC701HCSTRTIC PWR SWITCH N-CHAN 1:1 6CSP Semtech Corporation |
0 |
|
Datasheet |
6-WFBGA, CSPBGA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | - | 0V ~ 5.5V | 1.7V ~ 5.5V | 4A | 8mOhm | Non-Inverting | Slew Rate Controlled | Over Voltage | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-CSP (0.9x1.4) |
|
|
SC701CSTRTIC PWR N-CH 1:1 6CSP TAPE&REEL Semtech Corporation |
0 |
|
Datasheet |
6-WFBGA, CSPBGA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | - | 0V ~ 5.5V | 1.7V ~ 5.5V | 4A | 8mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Over Voltage | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-CSP (0.9x1.4) |
|
|
SC700HWLTRCIC PWR SWITCH N-CHAN 1:1 6MLPD Semtech Corporation |
0 |
|
Datasheet |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | - | 0V ~ 5.25V | 0.75V ~ 5.25V | 4A | 17mOhm | Non-Inverting | Slew Rate Controlled | Over Voltage | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-MLPD (2x2) |
|
|
SC33020HQCSTRT2A LOAD SWITCH W/REV BLOCKING AE Semtech Corporation |
0 |
|
Datasheet |
- | * | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SC705CSTRTIC PWR SWITCH N-CHAN 1:1 4CSP Semtech Corporation |
24 |
|
Datasheet |
4-WFBGA, CSPBGA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.1V ~ 3.6V | Not Required | 500mA | 64mOhm | - | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-CSP (0.76x0.76) |
|
|
SC33020HCSTRTIC PWR SWITCH N-CHAN 1:1 4CSP Semtech Corporation |
0 |
|
Datasheet |
4-UFBGA, CSPBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.65V ~ 5.5V | Not Required | 2A | 25mOhm | - | Slew Rate Controlled | Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-CSP (0.90x0.90) |
