Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS2224APWPIC PWR SWITCH 3:4 24HTSSOP |
62 |
|
Datasheet |
24-PowerTSSOP (0.173", 4.40mm Width) | - | Bulk | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Serial | 3.3V, 5V, 12V | Not Required | 1A | 95mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-HTSSOP |
|
TPS2206IDBIC PWR SWITCH 3:4 30SSOP |
0 |
|
Datasheet |
30-SSOP (0.209", 5.30mm Width) | - | Bulk | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Serial | 3.3V, 5V, 12V | Not Required | 1A | 103mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 30-SSOP |
.jpg)
|
L6370QTRIC PWR SWITCH N-CHAN 1:1 48QFN |
2,354 |
|
Datasheet |
48-VFQFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 9.5V ~ 35V | Not Required | 2.5A | 100mOhm | Differential | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -25°C ~ 125°C (TJ) | - | - | Surface Mount | 48-QFN (7x7) |
|
MC33879APEKR2IC PWR SWITCH N-CHAN 1:4 32SOIC |
0 |
|
Datasheet |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:4 | High Side or Low Side | N-Channel | SPI | 5.5V ~ 27.5V | 3.1V ~ 5.5V | 600mA | 750mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Voltage | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-SOIC-EP |
|
|
IPS1025HQ-32HIGH EFFICIENCY, HIGH-SIDE SWITC |
2,406 |
|
Datasheet |
48-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | Logic | - | 8V ~ 60V | 5.6A | 12mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Load, Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 150°C | - | - | Surface Mount | 48-QFN (8x6) |
|
TPS2228PWPIC PWR SWITCH 3:4 20HTSSOP |
0 |
|
Datasheet |
20-PowerTSSOP (0.173", 4.40mm Width) | - | Bulk | Obsolete | PCMCIA Switch | 4 | 3:4 | High Side | - | Serial | 1.8V, 3.3V, 5V | Not Required | 1A | 97mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-HTSSOP |
|
TPS2216DAPIC PWR SWITCH 1:1 32HTSSOP |
0 |
|
Datasheet |
32-PowerTSSOP (0.240", 6.10mm Width) | - | Bulk | Active | PCMCIA Switch | 4 | 1:1 | High Side | - | Serial | 3.3V, 5V, 12V | Not Required | 1A | 60mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 32-HTSSOP |
|
|
TPS2216DBIC PWR SWITCH 1:1 30SSOP |
0 |
|
Datasheet |
30-SSOP (0.209", 5.30mm Width) | - | Bulk | Active | PCMCIA Switch | 4 | 1:1 | High Side | - | Serial | 3.3V, 5V, 12V | Not Required | 1A | 60mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 30-SSOP |
|
TDE1747FPTIC PWR DRIVER BIPOLAR 1:1 14SO |
3,335 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 1 | 1:1 | High Side | Bipolar | On/Off | 10V ~ 45V | Not Required | 1A | - | Inverting, Non-Inverting | - | Current Limiting (Adjustable), Over Temperature | -25°C ~ 85°C (TA) | - | - | Surface Mount | 14-SO |
|
|
TPS2205IDBRIC PWR SWITCH 3:4 30SSOP |
0 |
|
Datasheet |
30-SSOP (0.209", 5.30mm Width) | - | Tape & Reel (TR) | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Parallel | 3.3V, 5V, 12V | Not Required | 1A | 103mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 30-SSOP |
|
|
TPS2205IDAPRIC PWR SWITCH 3:4 32HTSSOP |
0 |
|
Datasheet |
32-PowerTSSOP (0.240", 6.10mm Width) | - | Tape & Reel (TR) | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Parallel | 3.3V, 5V, 12V | Not Required | 1A | 103mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-HTSSOP |
|
|
IPS1025HQHIGH EFFICIENCY, HIGH-SIDE SWITC |
697 |
|
Datasheet |
48-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | Logic | - | 8V ~ 60V | 2.4A | 12mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Load, Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 150°C | - | - | Surface Mount | 48-QFN (8x6) |
|
VNI8200XPIC PWR DRVR N-CHAN 1:1 PWRSSO36 |
1,225 |
|
Datasheet |
36-PowerFSOP (0.295", 7.50mm Width) | VIPower™ | Tube | Active | General Purpose | 8 | 1:1 | High Side | N-Channel | SPI | 10.5V ~ 36V | - | 700mA | 110mOhm | - | Power Good, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PowerSSO-36 EPD |
|
|
VNI8200XP-32IC PWR DRVR N-CHAN 1:1 PWRSSO36 |
1,225 |
|
Datasheet |
36-PowerFSOP (0.295", 7.50mm Width) | - | Tube | Active | General Purpose | 8 | 1:1 | High Side | N-Channel | SPI | 10.5V ~ 36V | - | 1A | 110mOhm | - | Power Good, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Surface Mount | PowerSSO-36 EPD |
|
|
TPS2205IDFRIC PWR SWITCH 3:4 30SSOP |
0 |
|
Datasheet |
30-SSOP (0.209", 5.30mm Width) | - | Tape & Reel (TR) | Obsolete | PCMCIA Switch | 4 | 3:4 | High Side | - | Parallel | 3.3V, 5V, 12V | Not Required | 1A | 103mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 30-SSOP |
|
L9822EPDIC PWR DRIVER 1:8 PWRSO20 |
961 |
|
Datasheet |
20-SOIC (0.433", 11.00mm Width) Exposed Pad | - | Tube | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | - | SPI | 4.5V ~ 5.5V | - | - | 550mOhm | - | Status Flag | Current Limiting (Fixed) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-20 |
|
DS1640SIC PWR DRIVER P-CHAN 1:1 16SOIC |
0 |
|
Datasheet |
16-SOIC (0.295", 7.50mm Width) | - | Tube | Obsolete | Latched Driver | 4 | 1:1 | High Side | P-Channel | On/Off | 3V ~ 5.5V | 4.5V ~ 5.5V | 300mA | 67mOhm | Non-Inverting | - | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
UC17132JBUFFER/INVERTER BASED PERIPHERAL |
797 |
|
Datasheet |
8-CDIP (0.300", 7.62mm) | - | Bulk | Active | General Purpose | 1 | 1:1 | High Side or Low Side | Bipolar | On/Off | 8V ~ 65V | Not Required | 300mA | - | Non-Inverting | - | Open Load, Short Circuit | -55°C ~ 125°C | - | - | Through Hole | 8-CDIP |
|
MC35XS3500DHFKIC PWR SWITCH N-CHAN 1:6 24PQFN |
167 |
|
Datasheet |
24-PowerQFN | - | Tray | Obsolete | General Purpose | 6 | 1:6 | High Side | N-Channel | SPI | 7V ~ 20V | 3V ~ 5.5V | - | 35mOhm (Max) | - | Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|

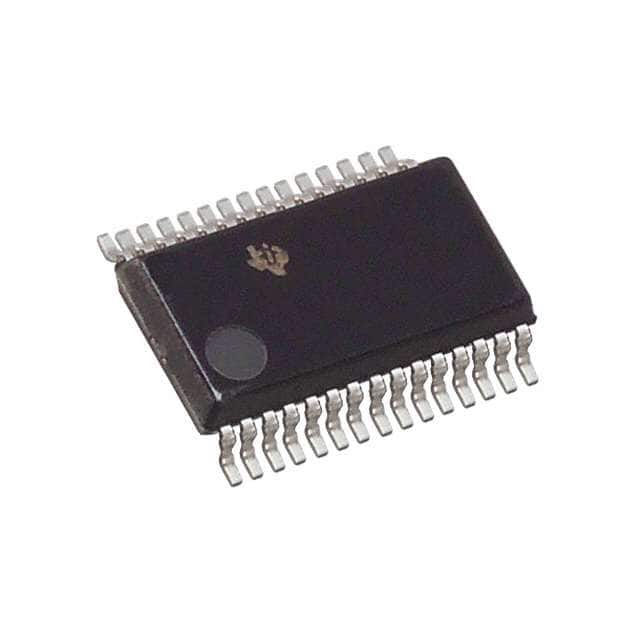

TPS2206IDBRIC PWR SWITCH 3:4 30SSOP |
0 |
|
Datasheet |
30-SSOP (0.209", 5.30mm Width) | - | Tape & Reel (TR) | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Serial | 3.3V, 5V, 12V | Not Required | 1A | 103mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 30-SSOP |
