DC DC Switching Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Function | Output Configuration | Topology | Number of Outputs | Output Phases | Voltage - Supply (Vcc/Vdd) | Frequency - Switching | Duty Cycle (Max) | Synchronous Rectifier | Clock Sync | Serial Interfaces | Control Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LX1553IDIC REG CTRLR BUCK/BOOST 14SOIC |
0 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Transistor Driver | Step-Up, Step-Down | Positive | Buck, Boost | 1 | 1 | 7.6V ~ 30V | - | 96% | Yes | No | - | Frequency Control | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
LX1553IDMIC REG CTRLR BUCK/BOOST 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Transistor Driver | Step-Up, Step-Down | Positive | Buck, Boost | 1 | 1 | 7.6V ~ 30V | - | 96% | Yes | No | - | Frequency Control | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LX1553IMIC REG CTRLR BUCK/BOOST 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Transistor Driver | Step-Up, Step-Down | Positive | Buck, Boost | 1 | 1 | 7.6V ~ 30V | - | 96% | Yes | No | - | Frequency Control | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-DIP |
|
|
LX1555IDMIC REG CTRLR BUCK/BOOST 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Transistor Driver | Step-Up, Step-Down | Positive | Buck, Boost | 1 | 1 | 7.6V ~ 30V | - | 48% | Yes | No | - | Frequency Control | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LX1741CDUIC REG CTRLR BOOST 8MSOP |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | Transistor Driver | Step-Up | Positive | Boost | 1 | 1 | 1.6V ~ 6V | - | - | No | No | - | Current Limit, Enable | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-MSOP |
|
LX1741CLMIC REG CTRLR BOOST 8MLP |
0 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tube | Active | Transistor Driver | Step-Up | Positive | Boost | 1 | 1 | 1.6V ~ 6V | - | - | No | No | - | Current Limit, Enable | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-MLP (3x3) |
|
SG2524NIC REG CTRLR MULT TOPOLOGY 16DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback, Push-Pull | 2 | 1 | 8V ~ 40V | 100kHz ~ 300kHz | 49% | Yes | No | - | Enable | -25°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
SG2525ADWIC REG CTRLR PUSH-PULL 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Bulk | Active | Transistor Driver | Step-Up/Step-Down | Positive | Push-Pull | 2 | 1 | 8V ~ 35V | 100Hz ~ 350kHz | 49% | Yes | Yes | - | Enable, Soft Start | -25°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|

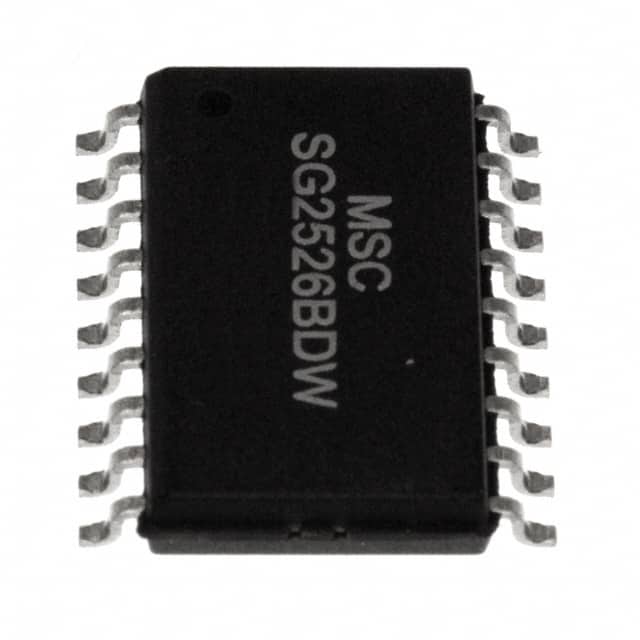

SG2526BDWIC REG CTRLR BUCK/FLYBACK 18SOIC |
0 |
|
Datasheet |
- | 18-SOIC (0.295", 7.50mm Width) | Bulk | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 500kHz | 49% | Yes | No | - | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | -25°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOIC |
|

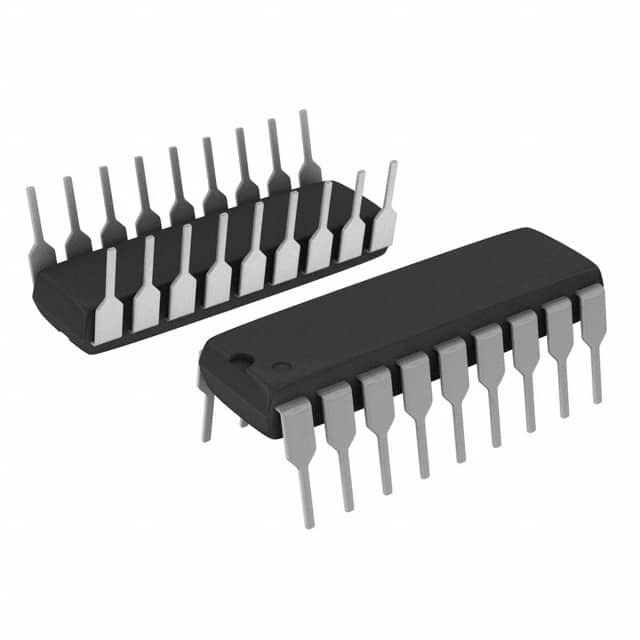

SG2526BNIC REG CTRLR BUCK/FLYBACK 18DIP |
0 |
|
Datasheet |
- | 18-DIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 500kHz | 49% | Yes | No | - | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | -25°C ~ 85°C (TA) | - | - | Through Hole | 18-PDIP |
|

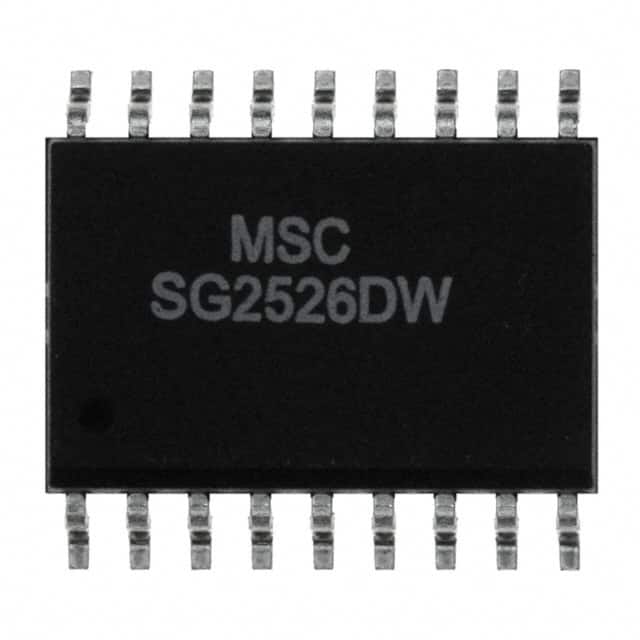

SG2526DWIC REG CTRLR BUCK/FLYBACK 18SOIC |
0 |
|
Datasheet |
- | 18-SOIC (0.295", 7.50mm Width) | Bulk | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 350kHz | 49% | Yes | No | - | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | -25°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOIC |
|
|
SG2526NIC REG CTRLR BUCK/FLYBACK 18DIP |
0 |
|
Datasheet |
- | 18-DIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 350kHz | 49% | Yes | No | - | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | -25°C ~ 85°C (TA) | - | - | Through Hole | 18-PDIP |
|
|
SG2843DMIC REG CTRLR BUCK 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 7.6V ~ 30V | 1Hz ~ 500kHz | 95% | No | No | - | - | -25°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
SG2846DWIC REG CTRLR MULT TOP 16SOIC |
0 |
|
- |
- | 16-SOIC (0.154", 3.90mm Width) | Bulk | Active | Transistor Driver | Step-Up, Step-Down, Step-Up/Step-Down | Positive | Buck, Boost, Push-Pull | 2 | 1 | 8V ~ 40V | 1Hz ~ 500kHz | - | Yes | Yes | - | Current Limit, Enable | -25°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
SG3524DIC REG CTRLR MULT TOP 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback, Push-Pull | 2 | 1 | 8V ~ 40V | 100kHz ~ 300kHz | 49% | Yes | No | - | Enable | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
SG3525ANIC REG CTRLR PUSH-PULL 16DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Push-Pull | 2 | 1 | 8V ~ 35V | 100Hz ~ 400kHz | 49% | Yes | Yes | - | Enable, Frequency Control, Soft Start | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
SG3526BDWIC REG CTRLR BUCK/FLYBACK 18SOIC |
0 |
|
Datasheet |
- | 18-SOIC (0.295", 7.50mm Width) | Bulk | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 500kHz | 49% | Yes | No | - | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | 0°C ~ 70°C (TA) | - | - | Surface Mount | 18-SOIC |
|
SG3526BNIC REG CTRLR BUCK/FLYBACK 18DIP |
0 |
|
Datasheet |
- | 18-DIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 500kHz | 49% | Yes | No | - | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | 0°C ~ 70°C (TA) | - | - | Through Hole | 18-PDIP |
|

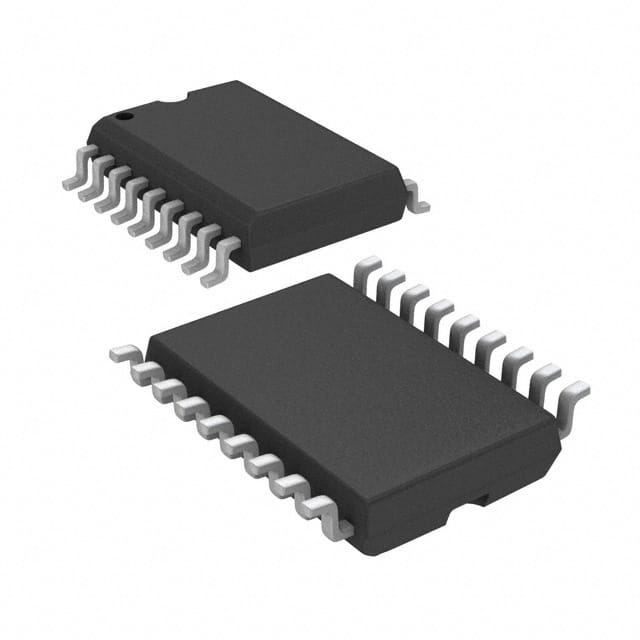

SG3526DWIC REG CTRLR BUCK/FLYBACK 18SOIC |
0 |
|
Datasheet |
- | 18-SOIC (0.295", 7.50mm Width) | Bulk | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 350kHz | 49% | Yes | No | - | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | 0°C ~ 70°C (TA) | - | - | Surface Mount | 18-SOIC |
|
SG3526NIC REG CTRLR BUCK/FLYBACK 18DIP |
0 |
|
Datasheet |
- | 18-DIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 350kHz | 49% | Yes | No | - | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | 0°C ~ 70°C (TA) | - | - | Through Hole | 18-PDIP |
