DC DC Switching Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Function | Output Configuration | Topology | Number of Outputs | Output Phases | Voltage - Supply (Vcc/Vdd) | Frequency - Switching | Duty Cycle (Max) | Synchronous Rectifier | Clock Sync | Serial Interfaces | Control Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Exposed-Pad.jpg)
|

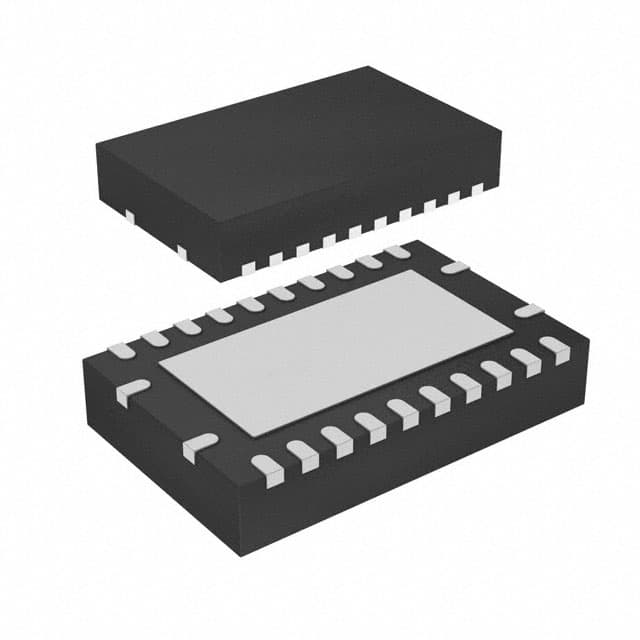

LM25148RGYR42-V SYNCHRONOUS BUCK DC/DC CONT |
5,592 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 3.5V ~ 42V | 100kHz ~ 2.2MHz | 100% | Yes | Yes | - | Current Limit, Power Good, Ramp, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 24-VQFN (5.5x3.5) |
|
LM3488MMX/NOPBIC REG CTRLR MULT TOP 8VSSOP |
4,201 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 2.97V ~ 40V | 100kHz ~ 1MHz | 100% | No | Yes | - | Enable, Frequency Control | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VSSOP |
|
|
LM3478MMX/NOPBIC REG CTRLR MULT TOP 8VSSOP |
5,540 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 2.97V ~ 40V | 100kHz ~ 1MHz | 100% | No | No | - | Enable, Frequency Control | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VSSOP |
|
LM3481MMX/NOPBIC REG CTRLR MULT TOP 10MSOP |
9,495 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 2.97V ~ 48V | 100kHz ~ 1MHz | 85% | No | Yes | - | Enable, Frequency Control, Ramp, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-VSSOP |
|
|
LM5022MMX/NOPBIC REG CTRLR BOOST/SEPIC 10MSOP |
3,051 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, SEPIC | 1 | 1 | 6V ~ 60V | 200kHz ~ 990kHz | 95% | No | Yes | - | Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-VSSOP |
|

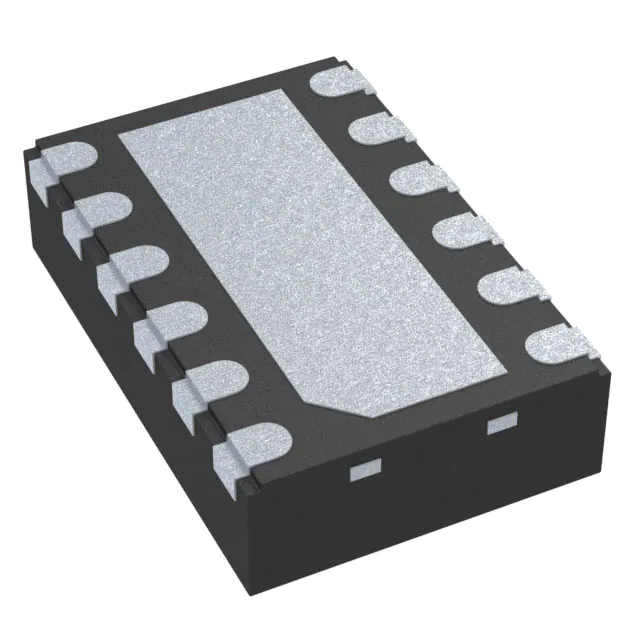

LM5156QDSSRQ1IC POWER |
6,745 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 3.5V ~ 60V | 100kHz ~ 2.2MHz | 93% | No | Yes | - | Current Limit, Enable, Frequency Control, Power Good, Soft Start | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 12-WSON (3x2) |
|
UCC2897APWRIC REG CTRLR MULT TOP 20TSSOP |
3,263 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Flyback, Forward Converter | 1 | 1 | 8.5V ~ 16V | 250kHz | 70% | Yes | Yes | - | Current Limit, Enable, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-TSSOP |
|
TPS43060RTERIC REG CTRLR BOOST 16WQFN |
4,995 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up | Positive | Boost | 1 | 1 | 4.5V ~ 38V | 50kHz ~ 1MHz | - | Yes | No | - | Enable, Frequency Control, Power Good, Soft Start | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-WQFN (3x3) |
|
|
LM5085MM/NOPBIC REG CTRLR BUCK 8VSSOP |
3,384 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 75V | Up to 1MHz | 100% | No | No | - | Current Limit, Enable, On Time Control | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VSSOP |
|
|
LM5020MM-1/NOPBIC REG CTRLR FLYBACK 10MSOP |
1,112 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive | Flyback | 1 | 1 | 8V ~ 15V | 200kHz ~ 630kHz | 80% | No | Yes | - | Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-VSSOP |
|
|
LM3488MM/NOPBIC REG CTRLR MULT TOP 8VSSOP |
3,579 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 2.97V ~ 40V | 100kHz ~ 1MHz | 100% | No | Yes | - | Enable, Frequency Control | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VSSOP |
|
|
LM3478MM/NOPBIC REG CTRLR MULT TOP 8VSSOP |
4,969 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 2.97V ~ 40V | 100kHz ~ 1MHz | 100% | No | No | - | Enable, Frequency Control | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VSSOP |
|
|
LM3481MM/NOPBIC REG CTRLR MULT TOP 10MSOP |
10,735 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 2.97V ~ 48V | 100kHz ~ 1MHz | 85% | No | Yes | - | Enable, Frequency Control, Ramp, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-VSSOP |
|
|
TPS43060RTETIC REG CTRLR BOOST 16WQFN |
1,475 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Transistor Driver | Step-Up | Positive | Boost | 1 | 1 | 4.5V ~ 38V | 50kHz ~ 1MHz | - | Yes | No | - | Enable, Frequency Control, Power Good, Soft Start | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-WQFN (3x3) |
|
UC3526ADWTRIC REG CTRLR MULT TOP 18SOIC |
1,277 |
|
Datasheet |
- | 18-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Down, Step-Up/Step-Down | Positive | Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull | 2 | 1 | 7V ~ 35V | 1Hz ~ 600kHz | 49% | Yes | Yes | - | Enable, Frequency Control, Reset, Soft Start | 0°C ~ 70°C (TA) | - | - | Surface Mount | 18-SOIC |
|
LM5026MTX/NOPBIC REG CTRLR FWRD CONV 16TSSOP |
2,790 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Forward Converter | 2 | 1 | 8V ~ 15V | 200kHz ~ 590kHz | 70%, 80% | No | Yes | - | Dead Time Control, Frequency Control, Reset, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP |
|
TPS40210QDGQRQ1IC REG CTRLR MULT TOP 10MSOP |
4,143 |
|
Datasheet |
- | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, SEPIC | 1 | 1 | 4.5V ~ 52V | 35kHz ~ 1MHz | - | No | Yes | - | Enable, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 10-HVSSOP |
|
LM25088MHX-1/NOPBIC REG CTRLR BUCK 16TSSOP |
10,887 |
|
Datasheet |
- | 16-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 42V | 50kHz ~ 1MHz | - | No | Yes | - | Enable, Frequency Control, Ramp, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-HTSSOP |
|
|
LM25037MTX/NOPBIC REG CTRLR MULT TOP 16TSSOP |
2,352 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Full-Bridge, Half-Bridge, Push-Pull | 1 | 1 | 5.5V ~ 75V | 2MHz | 96% | No | No | - | Current Limit, Dead Time Control, Enable, Ramp, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP |
|
LM3150MHX/NOPBIC REG CTRLR BUCK 14TSSOP |
1,355 |
|
Datasheet |
SIMPLE SWITCHER® | 14-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 6V ~ 42V | Up to 1MHz | - | Yes | No | - | Current Limit, Enable, On Time Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-HTSSOP |
