Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN3288HV-160-40-C36-R65LINE FILTER 160A CHASSIS MOUNT |
2 |
|
Datasheet |
FN 3288 | Box | Active | Three Phase (Delta) | Two Stage | - | - | 440 V | 760 V | 160 A | DC ~ 60Hz | Inverters, Power Drive Systems | - | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3268-130-35LINE FILTER 130A CHASSIS MOUNT |
4 |
|
Datasheet |
FN 3268 | Box | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 130 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3258-180-40LINE FILTER 180A CHASSIS MOUNT |
6 |
|
Datasheet |
FN 3258 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 180 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3258H-180-40LINE FILTER 180A CHASSIS MOUNT |
3 |
|
Datasheet |
FN 3258 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 180 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
250KEPS6AFPWLINE FLTR 440VAC 250A CHASS MNT |
4 |
|
Datasheet |
KEP | Box | Active | Three Phase (Wye) | Single Stage | - | 440V | - | - | 250 A | 50/60Hz | Converter | CSA, UL | -25°C ~ 85°C | Chassis Mount | Threaded Post (M10) | - |
|
FN3310-600-99-R5LINE FLTR 520VAC 600A CHASS MNT |
2 |
|
Datasheet |
FN 3310 | Box | Active | Three Phase (Delta) | Single Stage | - | 520V | - | 520 V | 600 A | DC ~ 60Hz | General Purpose | CE, cURus, ENEC | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FN351H-110-35LINE FILTER 110A CHASSIS MOUNT |
2 |
|
Datasheet |
FN 351 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 110 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN2200-600-99LINE FLTR 1200VDC 600A CHASS MNT |
18 |
|
Datasheet |
FN 2200 | Box | Active | DC | Single Stage | 1200V (1.2kV) | - | - | - | 600 A | - | Photovoltaic Inverter | cURus, ENEC | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
250KEPS6BFPWLINE FLTR 520VAC 250A CHASS MNT |
2 |
|
Datasheet |
KEP | Box | Active | Three Phase (Wye) | Single Stage | - | 520V | - | - | 250 A | 50/60Hz | Converter | CSA, UL | -25°C ~ 85°C | Chassis Mount | Threaded Post (M10) | - |
|
FN3359-180-28LINE FILTER 180A CHASSIS MOUNT |
20 |
|
Datasheet |
FN 3359 | Tray | Active | Three Phase (Delta) | Three Stage | - | - | 300 V | 520 V | 180 A | DC ~ 60Hz | General Purpose | cURus, ENEC | -25°C ~ 100°C | Chassis Mount | Threaded Post (M10) | - |
|
FN3359HV-150-28LINE FILTER 150A CHASSIS MOUNT |
3 |
|
Datasheet |
FN 3359 | Tray | Active | Three Phase (Delta) | Three Stage | - | - | 400 V | 690 V | 150 A | DC ~ 60Hz | General Purpose | cURus, ENEC | -25°C ~ 100°C | Chassis Mount | Threaded Post (M10) | - |
|
FN2210-1000-99-R5LINE FLTR 1000VDC 1KA CHASS MNT |
4 |
|
Datasheet |
FN 2210 | Box | Active | DC | Single Stage | 1000V (1kV) | - | - | - | 1 kA | DC | Inverters, Power Drive Systems | CE, cURus | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FN3280H-160-40LINE FLTR 480VAC 160A CHASS MNT |
8 |
|
Datasheet |
FN 3280 | Tray | Active | Three Phase (Wye) | Two Stage | - | 480V | 300 V | 520 V | 160 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN2211-1000-99-C30-R55LINE FLTR 1000VDC 1KA CHASS MNT |
6 |
|
Datasheet |
FN 2211 | Box | Active | DC | Single Stage | 1000V (1kV) | - | - | - | 1 kA | DC | Inverters, Power Drive Systems | CE, cURus | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FN3280H-200-40LINE FLTR 480VAC 200A CHASS MNT |
6 |
|
Datasheet |
FN 3280 | Tray | Active | Three Phase (Wye) | Two Stage | - | 480V | 300 V | 520 V | 200 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3100-230-40LINE FILTER 230A CHASSIS MOUNT |
3 |
|
Datasheet |
FN 3100 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 230 A | DC ~ 60Hz | Regenerative Motor Drive | CSA, SEMKO, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN2200-800-99LINE FLTR 1200VDC 800A CHASS MNT |
2 |
|
Datasheet |
FN 2200 | Box | Active | DC | Single Stage | 1200V (1.2kV) | - | - | - | 800 A | - | Photovoltaic Inverter | cURus, ENEC | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FN3359HV-250-28LINE FILTER 250A CHASSIS MOUNT |
2 |
|
Datasheet |
FN 3359 | Tray | Active | Three Phase (Delta) | Three Stage | - | - | 400 V | 690 V | 250 A | DC ~ 60Hz | General Purpose | cURus, ENEC | -25°C ~ 100°C | Chassis Mount | Threaded Post (M10) | - |
|

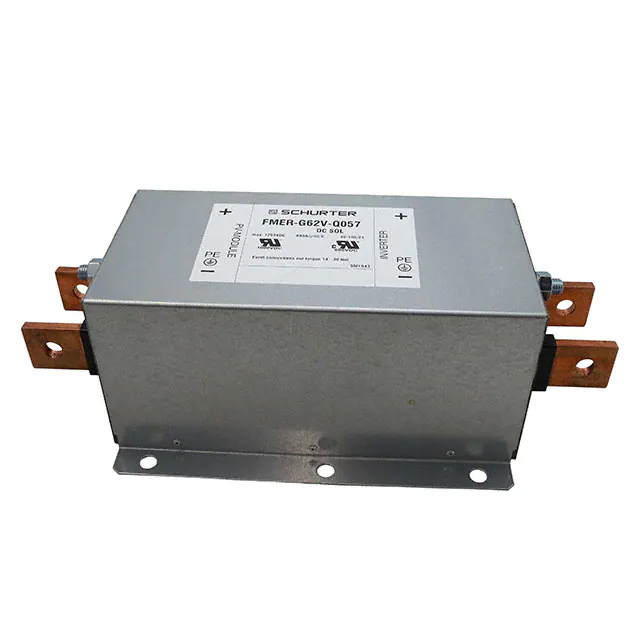

FMER-G62V-Q057LINE FLTR 1200VDC 800A CHASS MNT |
2 |
|
Datasheet |
FMER SOL | Bulk | Active | DC | Single Stage | 1200V (1.2kV) | - | - | - | 800 A | - | Photovoltaic Inverter | cURus | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FMBD-B92F-K012LINE FILTER 300/520VAC 200A CHAS |
3 |
|
Datasheet |
FMBD NEO | Bulk | Active | Three Phase (Wye) | Two Stage | - | 300V, 520V | - | - | 200 A | 50/60Hz | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | L1 - 300µH, L2 - 9µH |
Power Line Filter Modules Electronic Components
Explore Power Line Filter Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
