Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN3287-40-33-C21-R65LINE FILTER 530V/305VAC 40A CHAS |
7 |
|
Datasheet |
FN 3287 | Bulk | Active | Three Phase (Delta) | Two Stage | - | 530V, 305V | 305 V | 530 V | 40 A | DC ~ 60Hz | Inverters, Power Drive Systems | CE, ENEC, UR | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

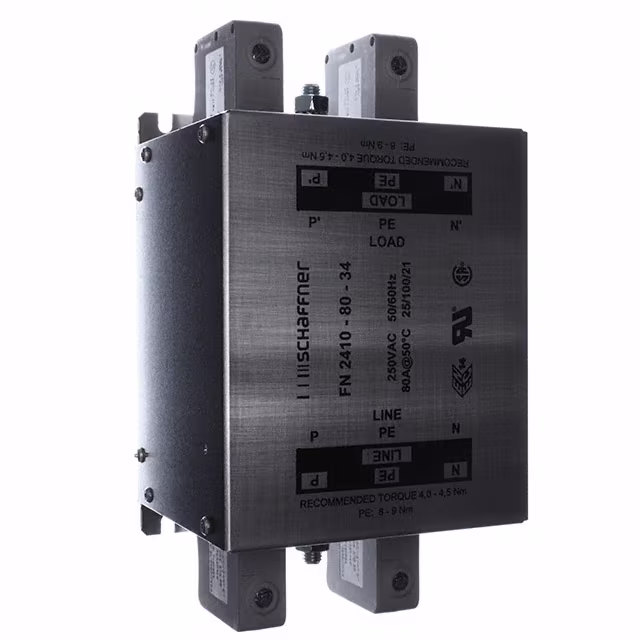

FN2410-80-34LINE FILTER 250VAC 80A CHASS MNT |
11 |
|
Datasheet |
FN 2410 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 80 A | 250Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
B84143A0036R000LINE FILTER 480V/275VAC 36A CHAS |
8 |
|
Datasheet |
B84143A | Bulk | Active | Three Phase (Delta) | Single Stage | - | 480V, 275V | 275 V | 480 V | 36 A | 50 ~ 60Hz | Inverters, Power Drive Systems | cUL, ENEC, UL | - | Chassis Mount | Terminal Block, Threaded Post (M6) | - |
|
FN3256H-36-33-R69LINE FILTER 36A CHASSIS MOUNT |
5 |
|
Datasheet |
FN 3256 | Bulk | Active | Three Phase (Wye) | Single Stage | - | - | 300 V | 520 V | 36 A | DC ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FD00DD100LINE FILTER 80VDC 100A CHASS MNT |
19 |
|
Datasheet |
FD | Bulk | Active | DC | Single Stage | 80V | - | - | - | 100 A | - | General Purpose | cUR, TUV, UR | - | Chassis Mount | Threaded Post (8-32) | - |
|

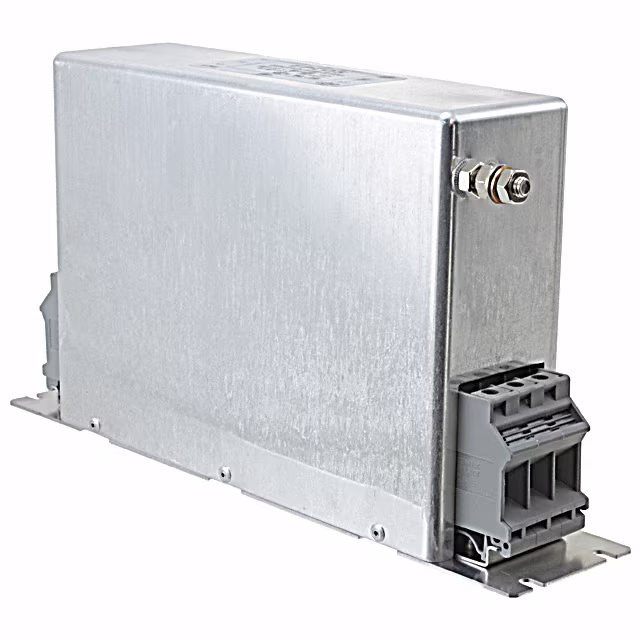

B84143A0066R105LINE FILTER 520V/300VAC 66A CHAS |
10 |
|
Datasheet |
B84143A | Bulk | Active | Three Phase (Delta) | Single Stage | - | 520V, 300V | - | - | 66 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

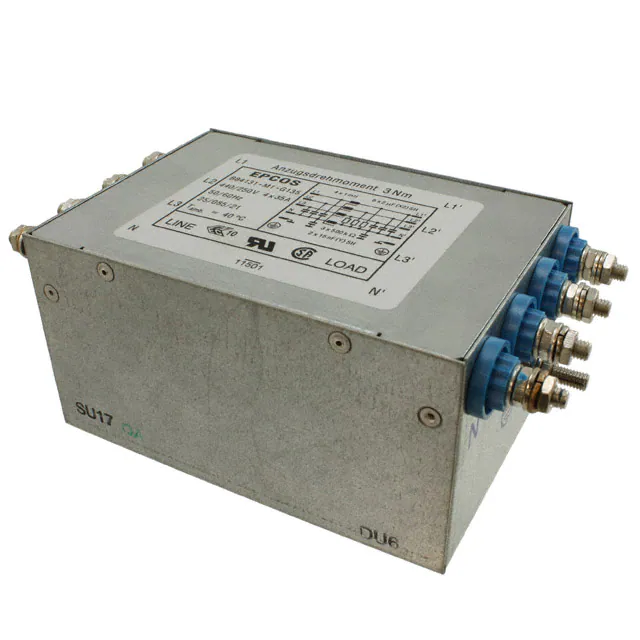

B84131M0001G135LINE FILTER 440V/250VAC 35A CHAS |
4 |
|
Datasheet |
B84131 | Bulk | Active | Three Phase (Wye) | Single Stage | - | 440V, 250V | - | - | 35 A | 50/60Hz | General Purpose | CSA, cUR, ENEC, UR | -25°C ~ 85°C | Chassis Mount | Threaded Post (M6) | - |
|
|
B84144A0050R120LINE FILTER 50A CHASSIS MOUNT |
5 |
|
Datasheet |
B84144 | Bulk | Active | Three Phase (Wye) | Single Stage | - | - | 520 V | 300 V | 50 A | 50 ~ 60Hz | Converter | cUL, ENEC, UL | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3288HV-40-33-C36-R65LINE FILTER 40A CHASSIS MOUNT |
7 |
|
Datasheet |
FN 3288 | Box | Active | Three Phase (Delta) | Two Stage | - | - | 440 V | 760 V | 40 A | DC ~ 60Hz | Inverters, Power Drive Systems | - | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3258-42-33LINE FILTER 42A CHASSIS MOUNT |
7 |
|
Datasheet |
FN 3258 | Box | Active | Three Phase (Delta) | Single Stage | - | - | 277 V | 480 V | 42 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3280H-25-33LINE FILTER 480VAC 25A CHASS MNT |
3 |
|
Datasheet |
FN 3280 | Bulk | Active | Three Phase (Wye) | Two Stage | - | 480V | 300 V | 520 V | 25 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN3280H-36-33-R69LINE FILTER 36A CHASSIS MOUNT |
3 |
|
Datasheet |
FN 3280 | Bulk | Active | Three Phase (Wye) | Two Stage | - | - | 300 V | 520 V | 36 A | DC ~ 60Hz | General Purpose | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

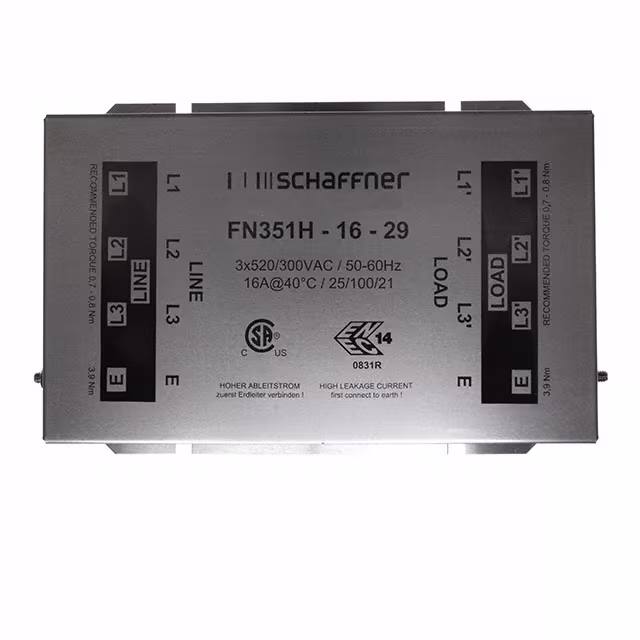

FN351H-16-29LINE FILTER 16A CHASSIS MOUNT |
7 |
|
Datasheet |
FN 351 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 16 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3120H-25-33LINE FILTER 25A CHASSIS MOUNT |
4 |
|
Datasheet |
FN 3120 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 25 A | DC ~ 60Hz | Regenerative Motor Drive | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FQB020ADC-007-MLINE FILTER 40VDC 20A TH |
7 |
|
Datasheet |
FQB | Tray | Active | DC | Single Stage | 40V | - | - | - | 20 A | - | General Purpose | - | -55°C ~ 115°C | Through Hole | PC Pins | - |
|
FN351H-36-33LINE FILTER 36A CHASSIS MOUNT |
22 |
|
Datasheet |
FN 351 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 36 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN3258H-55-34LINE FILTER 55A CHASSIS MOUNT |
5 |
|
Datasheet |
FN 3258 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 55 A | DC ~ 60Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

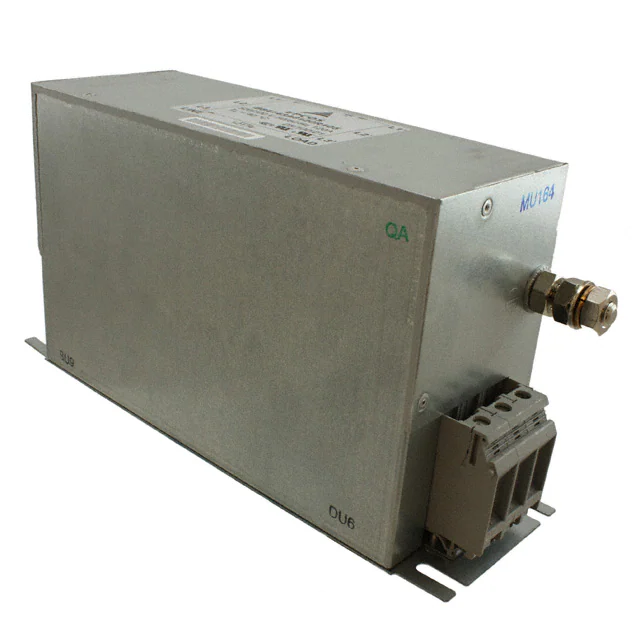

B84143A0120R105LINE FILTER 300/520VAC 120A CHAS |
4 |
|
Datasheet |
B84143A | Tray | Active | Three Phase (Delta) | Single Stage | - | 300V, 520V | - | - | 120 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

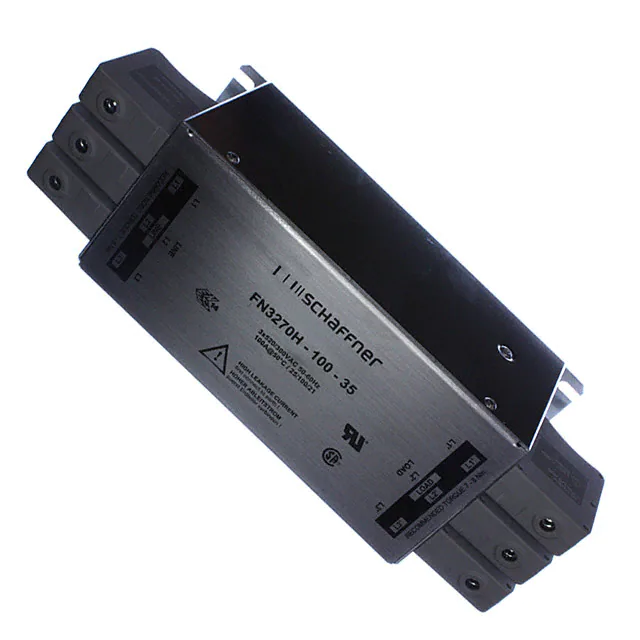

FN3270H-100-35LINE FILTER 100A CHASSIS MOUNT |
9 |
|
Datasheet |
FN 3270 | Tray | Active | Three Phase (Delta) | Three Stage | - | - | 300 V | 520 V | 100 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
B84144A0120R120LINE FILTER 120A CHASSIS MOUNT |
4 |
|
Datasheet |
B84144 | Bulk | Active | Three Phase (Wye) | Single Stage | - | - | 520 V | 300 V | 120 A | 50 ~ 60Hz | Converter | cUL, ENEC, UL | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
