Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN3120H-150-40LINE FILTER 150A CHASSIS MOUNT |
1 |
|
Datasheet |
FN 3120 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 150 A | DC ~ 60Hz | Regenerative Motor Drive | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN530-4-99LINE FILTER 4A CHASSIS MOUNT |
1 |
|
Datasheet |
FN 530 | Tray | Active | Three Phase (Delta) | Three Stage | - | - | 288 V | 500 V | 4 A | - | General Purpose | - | -25°C ~ 100°C | Chassis Mount | Terminal Block, Wire Leads | - |
|
FN3311-600-99-C16-R55LINE FILTER 520/300VAC 600A CHAS |
1 |
|
Datasheet |
FN 3311 | Box | Active | Three Phase (Delta) | Single Stage | - | 520V, 300V | 300 V | 520 V | 600 A | 60Hz | General Purpose | CE, cURus, ENEC | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
B84143B0400S080LINE FILTER 400A CHASSIS MOUNT |
1 |
|
Datasheet |
B84143B | Bulk | Active | Three Phase (Delta) | Two Stage | - | - | - | 300 V | 400 A | 50 ~ 60Hz | General Purpose | - | -25°C ~ 100°C | Chassis Mount | Terminal Post | 130µH |
|
B84233A1500R000LINE FILTER 530V/305VAC 50A CHAS |
1 |
|
Datasheet |
LeaXield™ | Box | Active | Three Phase (Delta) | Single Stage | - | 530V, 305V | - | - | 50 A | - | General Purpose | - | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN2200B-600-99LINE FLTR 1200VDC 600A CHASS MNT |
1 |
|
Datasheet |
FN 2200 | Box | Active | DC | Single Stage | 1200V (1.2kV) | - | - | - | 600 A | - | Photovoltaic Inverter | cURus, ENEC | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FN3120H-230-40LINE FILTER 230A CHASSIS MOUNT |
1 |
|
Datasheet |
FN 3120 | Bulk | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 230 A | DC ~ 60Hz | Regenerative Motor Drive | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
B84143B0600S080LINE FILTER 600A CHASSIS MOUNT |
1 |
|
Datasheet |
B84143B | Bulk | Active | Three Phase (Delta) | Two Stage | - | - | - | 300 V | 600 A | 50 ~ 60Hz | General Purpose | - | -25°C ~ 100°C | Chassis Mount | Terminal Post | 130µH |
|
FN2210-1500-99-R5LINE FILTER 1000VDC 1.5KA CHASS |
1 |
|
Datasheet |
FN 2210 | Box | Active | DC | Single Stage | 1000V (1kV) | - | - | - | 1.5 kA | DC | Inverters, Power Drive Systems | CE, cURus | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
300 AHV S FPLINE FILTER 300A CHASSIS MOUNT |
1 |
|
Datasheet |
AHV | Box | Active | Three Phase (Delta) | Single Stage | - | - | 750 V | 760 V | 300 A | 50Hz ~ 60Hz | General Purpose | cURus | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|

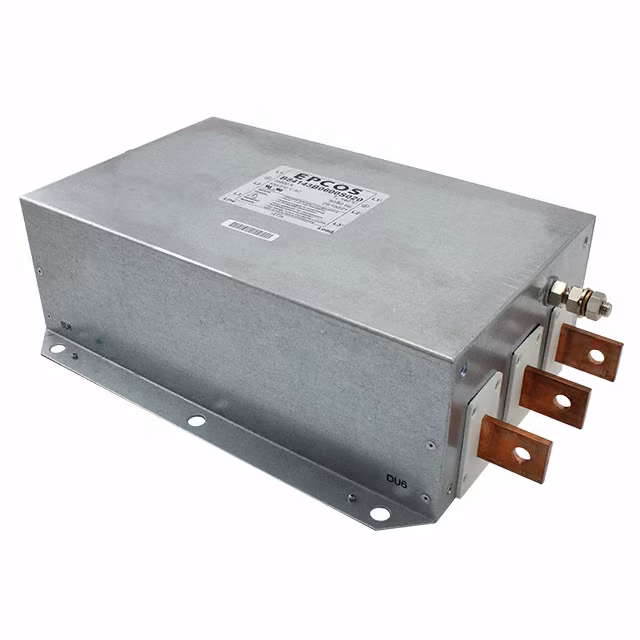

B84143B0600S020LINE FILTER 530/310VAC 600A CHAS |
1 |
|
Datasheet |
B84143B | Tray | Active | Three Phase (Delta) | Two Stage | - | 530V, 310V | - | - | 600 A | 50/60Hz | Inverters, Power Drive Systems | cUR, UR | -25°C ~ 100°C | Chassis Mount | Terminal Post, Threaded Post (M10) | - |
|
FN2200B-800-99LINE FLTR 1200VDC 800A CHASS MNT |
1 |
|
Datasheet |
FN 2200 | Box | Active | DC | Single Stage | 1200V (1.2kV) | - | - | - | 800 A | - | Photovoltaic Inverter | cURus, ENEC | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FN530-16-99LINE FILTER 16A CHASSIS MOUNT |
0 |
|
Datasheet |
FN 530 | Tray | Active | Three Phase (Delta) | Three Stage | - | - | 288 V | 500 V | 16 A | - | General Purpose | - | -25°C ~ 100°C | Chassis Mount | Terminal Block, Wire Leads | - |
|
FN2200-1000-99LINE FLTR 1200VDC 1KA CHASS MNT |
0 |
|
Datasheet |
FN 2200 | Tray | Active | DC | Single Stage | 1200V (1.2kV) | - | - | - | 1 kA | - | Photovoltaic Inverter | cURus, ENEC | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
|
B84143B1000S080LINE FILTER 1KA CHASSIS MOUNT |
1 |
|
Datasheet |
B84143B | Bulk | Active | Three Phase (Delta) | Two Stage | - | - | 520 V | 300 V | 1 kA | 50 ~ 60Hz | General Purpose | - | -25°C ~ 100°C | Chassis Mount | Terminal Post | 130µH |
|
FN3100-300-99LINE FILTER 300A CHASSIS MOUNT |
1 |
|
Datasheet |
FN 3100 | Tray | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 300 A | DC ~ 60Hz | Regenerative Motor Drive | CSA, SEMKO, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FN2200B-1000-99LINE FLTR 1200VDC 1KA CHASS MNT |
1 |
|
Datasheet |
FN 2200 | Box | Active | DC | Single Stage | 1200V (1.2kV) | - | - | - | 1 kA | - | Photovoltaic Inverter | cURus, ENEC | -40°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
B84143V0050R229LINE FILTER 50A CHASSIS MOUNT |
1 |
|
Datasheet |
B84143V | Box | Active | Three Phase (Delta) | Single Stage | - | - | 300 V | 520 V | 50 A | 50/60Hz | General Purpose | cURus | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
FN3359HV-800-99LINE FILTER 800A CHASSIS MOUNT |
1 |
|
Datasheet |
FN 3359 | Tray | Active | Three Phase (Delta) | Three Stage | - | - | 400 V | 690 V | 800 A | DC ~ 60Hz | General Purpose | cURus, ENEC | -25°C ~ 100°C | Chassis Mount | Terminal Post | - |
|
FN3359HV-1000-99LINE FILTER 1KA CHASSIS MOUNT |
1 |
|
Datasheet |
FN 3359 | Tray | Active | Three Phase (Delta) | Three Stage | - | - | 400 V | 690 V | 1 kA | DC ~ 60Hz | General Purpose | cURus, ENEC | -25°C ~ 100°C | Chassis Mount | Terminal Post | - |
