Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6VAQ8FLINE FILTER 250VAC 6A CHASS MNT |
17 |
|
Datasheet |
AQ | Bulk | Obsolete | Single Phase | Three Stage | - | 250V | - | - | 6 A | 50/60Hz | General Purpose | CSA, UR | -10°C ~ 40°C | Chassis Mount | IEC 320-C14, Wire Leads | - |
|
FN258-42-07LINE FILTER 42A CHASSIS MOUNT |
2 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 42 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|

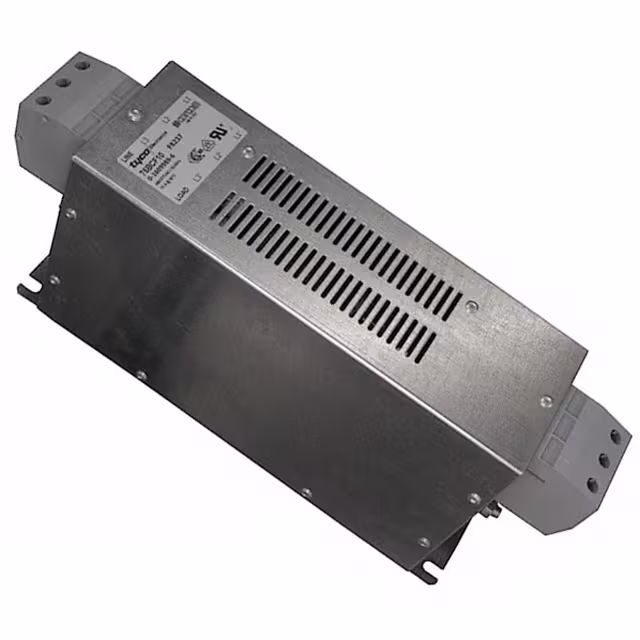

1609989-6LINE FILTER 75A CHASSIS MOUNT |
6 |
|
Datasheet |
BCF | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 75 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | - |
|
|
TB6-5080D3DGLINE FILTER 80A CHASSIS MOUNT |
4 |
|
Datasheet |
TB6-2,5 G/H | Box | Active | Three Phase (Delta) | Two Stage | - | - | 290 V | 500 V | 80 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO, UL, UR | - | Chassis Mount | Terminal Block | - |
|
FN352Z-20-29LINE FILTER 250VAC 20A CHASS MNT |
6 |
|
Datasheet |
FN 352Z | Tray | Obsolete | Single Phase | Three Stage | - | 250V | - | - | 20 A | DC ~ 400Hz | General Purpose | UR | -25°C ~ 85°C | Chassis Mount | Terminal Block | 3.5mH |
|
|
TB6-B150LASLINE FILTER 150A CHASSIS MOUNT |
2 |
|
Datasheet |
TB6-B | Box | Active | Three Phase (Delta) | Single Stage | - | - | 254 V | 440 V | 150 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
55BCF10RLINE FILTER 55A CHASSIS MOUNT |
3 |
|
Datasheet |
BCFXR | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 55 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | 1.8mH |
|
|
75BCF10RLINE FILTER 75A CHASSIS MOUNT |
5 |
|
Datasheet |
BCFXR | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 75 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | 1.06mH |
|
FN258HV-42-33LINE FILTER 42A CHASSIS MOUNT |
12 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 400 V | 690 V | 42 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
55BCF6RLINE FILTER 55A CHASSIS MOUNT |
3 |
|
Datasheet |
BCFXR | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 55 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 50°C | Chassis Mount | Threaded Post (M5) | 1.8mH |
|
FN258-55-07LINE FILTER 55A CHASSIS MOUNT |
2 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 55 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
FMAC-0934-5012ILINE FILTER 480V/520VAC 50A CHAS |
2 |
|
Datasheet |
FMAC | Bulk | Active | Three Phase (Delta) | Single Stage | - | 480V, 520V | - | - | 50 A | 50/60Hz | Photovoltaic Inverter | cURus, ENEC, VDE | -25°C ~ 100°C | Chassis Mount | Terminal Block | 1mH |
|
FN510-12-29LINE FILTER 12A CHASSIS MOUNT |
3 |
|
- |
FN 510 | Tray | Obsolete | Three Phase (Delta) | - | - | - | 288 V | 500 V | 12 A | - | General Purpose | - | -25°C ~ 70°C | Chassis Mount | Terminal Block | - |
|
F2780Y001L-004LINE FILTER 100VDC 1A CHASS MNT |
10 |
|
Datasheet |
F2780Y | Box | Active | Single Phase | Two Stage | 100V | - | - | - | 1 A | - | General Purpose | cUL, UL | -25°C ~ 85°C | Chassis Mount | Wire Leads | - |
|
|
TB4-100GRLINE FILTER 100A CHASSIS MOUNT |
4 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 100 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
FN258P-55-34LINE FILTER 55A CHASSIS MOUNT |
2 |
|
Datasheet |
FN 258 | Tray | Obsolete | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 55 A | DC ~ 60Hz | Inverters, Power Drive Systems | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
45AYP6CLINE FILTER 45A CHASSIS MOUNT |
2 |
|
Datasheet |
A | Bulk | Last Time Buy | Three Phase (Wye) | Two Stage | - | - | 250 V | 440 V | 45 A | 50/60Hz | General Purpose | CSA, UL | -10°C ~ 40°C | Chassis Mount | Threaded Post (1/4-20) | 1.1mH |
|
|
TB6-5100D6DHLINE FILTER 100A CHASSIS MOUNT |
2 |
|
Datasheet |
TB6-2,5 G/H | Box | Active | Three Phase (Delta) | Two Stage | - | - | 290 V | 500 V | 100 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO, UL, UR | - | Chassis Mount | Terminal Block | - |
|
|
TB6-5060D3DHLINE FILTER 60A CHASSIS MOUNT |
4 |
|
Datasheet |
TB6-2,5 G/H | Box | Active | Three Phase (Delta) | Two Stage | - | - | 290 V | 500 V | 60 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO, UL, UR | - | Chassis Mount | Terminal Block | - |
|
|
TB4-120GRLINE FILTER 120A CHASSIS MOUNT |
4 |
|
Datasheet |
TB4 | Box | Active | Three Phase (Wye) | Single Stage | - | - | 290 V | 500 V | 120 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
