Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

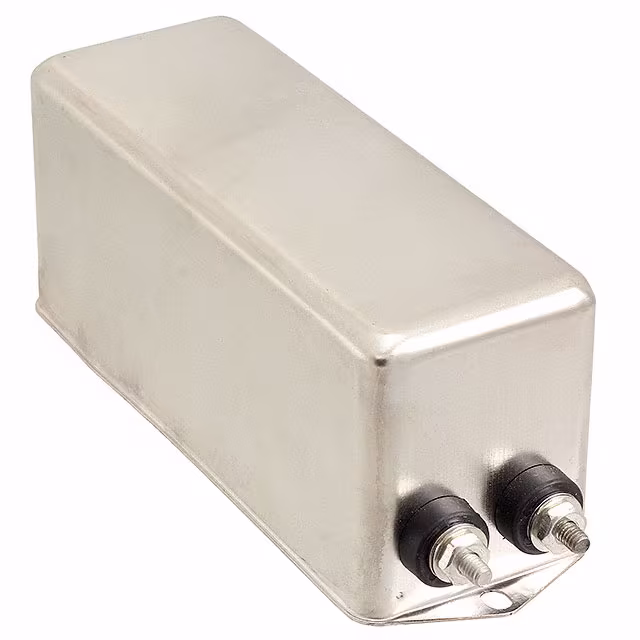

4-1609037-1LINE FILTER 250VAC 20A CHASS MNT |
0 |
|
Datasheet |
HQ | Box | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | -10°C ~ 40°C | Chassis Mount | Threaded Post (8-32) | 6mH |
|
20TDS6DLINE FILTER 440VAC 20A CHASS MNT |
3 |
|
Datasheet |
TD | Box | Active | Three Phase (Delta) | Two Stage | - | 440V | - | - | 20 A | 50/60Hz | General Purpose | - | - | Chassis Mount | Threaded Post (M6) | L1 - 78µH, L2 - 1.6mH |
|
FMBD-345A-2514LINE FILTER 760VAC 25A CHASS MNT |
6 |
|
Datasheet |
FMBD EP | Box | Active | Three Phase (Wye) | Two Stage | - | 760V | - | - | 25 A | 50/60Hz | General Purpose | cURus, ENEC, UL, VDE | -40°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
LF-215ULINE FILTER 250VAC/VDC 15A CHASS |
11 |
|
Datasheet |
LF | Box | Obsolete | Single Phase | Two Stage | 250V | 250V | - | - | 15 A | - | General Purpose | UL | -20°C ~ 55°C | Chassis Mount | Threaded Post (M4) | - |
|
TB6-B016NBDCLINE FILTER 16A CHASSIS MOUNT |
9 |
|
Datasheet |
TB6-B | Box | Active | Three Phase (Delta) | Two Stage | - | - | 254 V | 440 V | 16 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB6-B020NBDCLINE FILTER 20A CHASSIS MOUNT |
8 |
|
Datasheet |
TB6-B | Box | Active | Three Phase (Delta) | Two Stage | - | - | 254 V | 440 V | 20 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
TB6-B030NBDCLINE FILTER 30A CHASSIS MOUNT |
5 |
|
Datasheet |
TB6-B | Box | Active | Three Phase (Delta) | Two Stage | - | - | 254 V | 440 V | 30 A | 50 ~ 60Hz | General Purpose | CE, CSA, ENEC, SEMKO | -25°C ~ 100°C | Chassis Mount | Terminal Block | - |
|
|
2-6609074-1LINE FILTER 80VDC 15A CHASS MNT |
3 |
|
Datasheet |
DC | Bulk | Active | DC | Single Stage | 80V | - | - | - | 15 A | - | General Purpose | CSA, TUV, UL | -10°C ~ 55°C | Chassis Mount | Threaded Post (10-32) | - |
|
|
3-1609037-7LINE FILTER 250VAC 20A CHASS MNT |
9 |
|
Datasheet |
HQ | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 20 A | 50 ~ 60Hz | Medical | UL, VDE | - | Chassis Mount | - | - |
|
|
TB6-5030D3DGLINE FILTER 30A CHASSIS MOUNT |
4 |
|
Datasheet |
TB6-2,5 G/H | Box | Active | Three Phase (Delta) | Two Stage | - | - | 290 V | 500 V | 30 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO, UL, UR | - | Chassis Mount | Terminal Block | - |
|
RCY6G-30LINE FILTER 600VAC SURFACE MOUNT |
17 |
|
Datasheet |
- | Box | Active | Three Phase (Wye) | - | - | 600V | - | - | - | 50 ~ 60Hz | General Purpose | cURus | -40°C ~ 85°C | Surface Mount | Wire Leads | - |
|
|
BK2AA105BLINE FILTER 15A CHASSIS MOUNT |
7 |
|
- |
BK | Bulk | Active | Signal Line | - | - | - | - | - | 15 A | - | - | - | - | Chassis Mount | Quick Connect | - |
|
RCD5A-30LINE FILTER 480VAC SURFACE MOUNT |
11 |
|
Datasheet |
- | Bulk | Active | Three Phase (Delta) | - | - | 480V | - | - | - | 50 ~ 60Hz | General Purpose | cURus | -40°C ~ 60°C | Surface Mount | Wire Leads | - |
|
|
RCD5G-30LINE FILTER 480VAC SURFACE MOUNT |
11 |
|
Datasheet |
- | Bulk | Active | Three Phase (Delta) | - | - | 480V | - | - | - | 50 ~ 60Hz | General Purpose | cURus | -40°C ~ 60°C | Surface Mount | Wire Leads | - |
|
|
RCD2A-30LINE FILTER 240VAC SURFACE MOUNT |
10 |
|
Datasheet |
- | Bulk | Active | Three Phase (Delta) | - | - | 240V | - | - | - | 50 ~ 60Hz | General Purpose | cURus | -40°C ~ 60°C | Surface Mount | Wire Leads | - |
|
|
TB6-5010D3DGLINE FILTER 10A CHASSIS MOUNT |
4 |
|
Datasheet |
TB6-2,5 G/H | Box | Active | Three Phase (Delta) | Two Stage | - | - | 290 V | 500 V | 10 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO, UL, UR | - | Chassis Mount | Terminal Block | - |
|
|
TB6-5016D3DGLINE FILTER 16A CHASSIS MOUNT |
3 |
|
Datasheet |
TB6-2,5 G/H | Box | Active | Three Phase (Delta) | Two Stage | - | - | 290 V | 500 V | 16 A | 50 ~ 60Hz | General Purpose | CE, ENEC, SEMKO, UL, UR | - | Chassis Mount | Terminal Block | - |
|

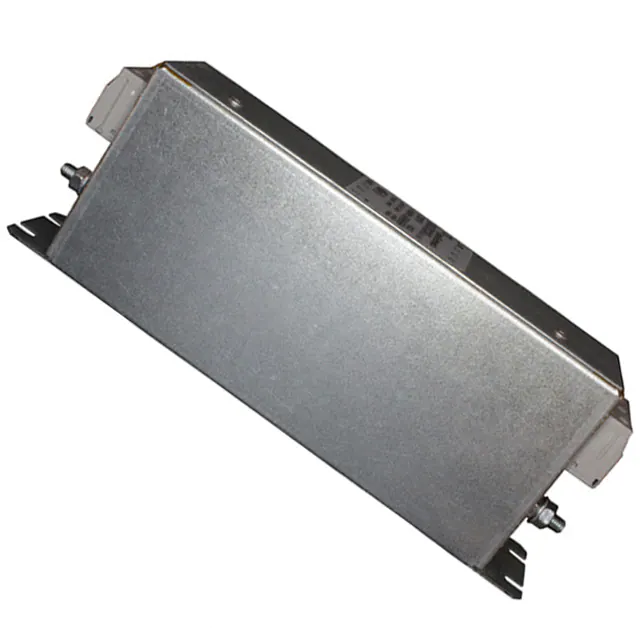

7BCF10LINE FILTER 7A CHASSIS MOUNT |
4 |
|
Datasheet |
BCF | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 7 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | - |
|
2-1609091-5LINE FILTER 7A CHASSIS MOUNT |
2 |
|
Datasheet |
BCF | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 7 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Threaded Post (M5) | - |
|
FLLDU040A225I0LINE FLTR 440VDC 250VAC 40A CHAS |
0 |
|
Datasheet |
FLLDU | Bulk | Last Time Buy | Single Phase | Single Stage | 440V | 250V | - | - | 40 A | 50/60Hz | General Purpose | UR | -40°C ~ 85°C | Chassis Mount | Threaded Post (M6) | - |
Power Line Filter Modules Electronic Components
Explore Power Line Filter Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
