Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7W-80.000MBC-TXTAL OSC XO 80.0000MHZ CMOS SMD |
7,835 |
|
Datasheet |
7W | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 80 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -10°C ~ 70°C | - | 20mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.056" (1.42mm) |
|
7X-19.200MBC-TXTAL OSC XO 19.2000MHZ CMOS SMD |
6,034 |
|
Datasheet |
7X | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 19.2 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -10°C ~ 70°C | - | 20mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
|
7X-20.000MBC-TXTAL OSC XO 20.0000MHZ CMOS SMD |
4,666 |
|
Datasheet |
7X | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 20 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -10°C ~ 70°C | - | 20mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
|
7X-30.000MBC-TXTAL OSC XO 30.0000MHZ CMOS SMD |
3,226 |
|
Datasheet |
7X | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 30 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -10°C ~ 70°C | - | 20mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
|
7X-38.400MBC-TXTAL OSC XO 38.4000MHZ CMOS SMD |
8,135 |
|
Datasheet |
7X | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 38.4 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -10°C ~ 70°C | - | 20mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
EG-2102CA 161.1328M-PGPABXTAL OSC SO 161.1328MHZ LVPECL |
3,017 |
|
Datasheet |
EG-2102CA | 6-SMD, No Lead | Bulk | Obsolete | Crystal | SO (SAW) | 161.1328 MHz | Enable/Disable | LVPECL | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 100mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|
|
EG-2102CA 156.2500M-PGPABXTAL OSC SO 156.2500MHZ LVPECL |
7,455 |
|
Datasheet |
EG-2102CA | 6-SMD, No Lead | Bulk | Obsolete | Crystal | SO (SAW) | 156.25 MHz | Enable/Disable | LVPECL | 3.3V | ±50ppm | - | 0°C ~ 70°C | - | 100mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|

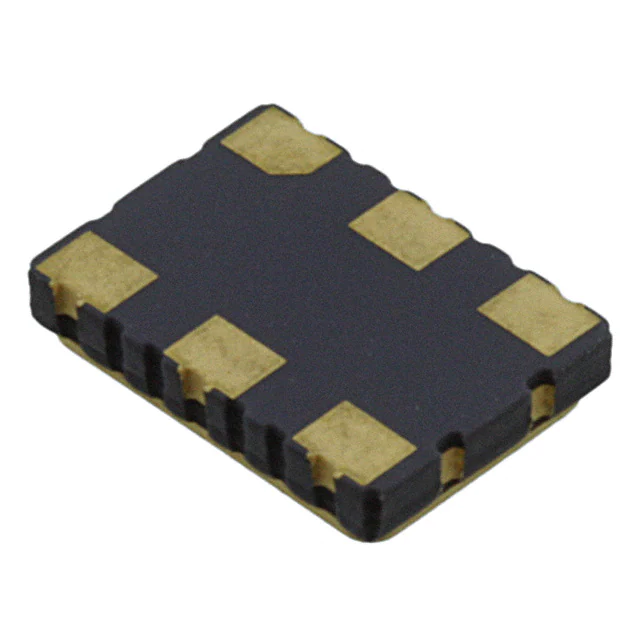

SG-9001CA C20P 18.432MCXTAL OSC XO 18.4320MHZ CMOS SMD |
2,224 |
|
Datasheet |
SG-9001 | 6-SMD, No Lead | Bulk | Obsolete | Crystal | XO (Standard) | 18.432 MHz | Enable/Disable | CMOS | 3.3V | - | - | -20°C ~ 70°C | - | 30mA | - | Surface Mount | 6-SMD (7x5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.059" (1.50mm) |
|
SG-210STF 33.3330ML3XTAL OSC XO 33.3330MHZ CMOS SMD |
4,963 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 33.333 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
SG-210STF 26.0000MS0XTAL OSC XO 26.0000MHZ CMOS SMD |
4,204 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 26 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±25ppm | - | -20°C ~ 70°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
SG-210STF 33.3330MW0XTAL OSC XO 33.3330MHZ CMOS SMD |
4,134 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 33.333 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±100ppm | - | -40°C ~ 105°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
SG-636PCW 50.0000MC0:ROHSXTAL OSC XO 50.0000MHZ CMOS SMD |
9,010 |
|
Datasheet |
SG-636 | 4-SOJ, 5.08mm pitch | Bulk | Obsolete | Crystal | XO (Standard) | 50 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -20°C ~ 70°C | - | 28mA | - | Surface Mount | 4-SOJ | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.106" (2.70mm) |
|
SG615PH-40.0000MC-3XTAL OSC XO 40.0000MHZ CMOS SMD |
9,125 |
|
- |
SG-615 | 4-SOJ, 5.08mm pitch | Bulk | Obsolete | Crystal | XO (Standard) | 40 MHz | Enable/Disable | CMOS | 5V | ±100ppm | - | -20°C ~ 70°C | - | 45mA | - | Surface Mount | 4-SOJ | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.185" (4.70mm) |
|
|
SG-210STF 11.2896MLXTAL OSC XO 11.2896MHZ CMOS SMD |
6,580 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Obsolete | Crystal | XO (Standard) | 11.2896 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
SG-210STF 11.2896MSXTAL OSC XO 11.2896MHZ CMOS SMD |
7,799 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Obsolete | Crystal | XO (Standard) | 11.2896 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±25ppm | - | -20°C ~ 70°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
SG-210STF 12.5000MLXTAL OSC XO 12.5000MHZ CMOS SMD |
9,252 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Obsolete | Crystal | XO (Standard) | 12.5 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
SG-210STF 13.0000MLXTAL OSC XO 13.0000MHZ CMOS SMD |
4,865 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Obsolete | Crystal | XO (Standard) | 13 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
SG-210STF 13.5000MLXTAL OSC XO 13.5000MHZ CMOS SMD |
2,569 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Obsolete | Crystal | XO (Standard) | 13.5 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
SG-210STF 13.5600MLXTAL OSC XO 13.5600MHZ CMOS SMD |
4,251 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Obsolete | Crystal | XO (Standard) | 13.56 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
|
SG-210STF 14.31818MLXTAL OSC XO 14.31818MHZ CMOS SMD |
3,546 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Obsolete | Crystal | XO (Standard) | 14.31818 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
