Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG-8018CG 12.0320M-TJHSA0XTAL OSC XO 12.0320MHZ CMOS SMD |
5,947 |
|
Datasheet |
SG-8018 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 12.032 MHz | Standby (Power Down) | CMOS | 1.62V ~ 3.63V | ±50ppm | - | -40°C ~ 105°C | - | 3.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
SG-8018CG 13.5231M-TJHPA0XTAL OSC XO 13.5231MHZ CMOS SMD |
9,655 |
|
Datasheet |
SG-8018 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 13.5231 MHz | Enable/Disable | CMOS | 1.62V ~ 3.63V | ±50ppm | - | -40°C ~ 105°C | - | 3.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
SG-8018CG 37.5810M-TJHPA0XTAL OSC XO 37.5810MHZ CMOS SMD |
4,432 |
|
Datasheet |
SG-8018 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 37.581 MHz | Enable/Disable | CMOS | 1.62V ~ 3.63V | ±50ppm | - | -40°C ~ 105°C | - | 8.1mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
SG-8018CG 71.2500M-TJHPA0XTAL OSC XO 71.2500MHZ CMOS SMD |
7,196 |
|
Datasheet |
SG-8018 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 71.25 MHz | Enable/Disable | CMOS | 1.62V ~ 3.63V | ±50ppm | - | -40°C ~ 105°C | - | 8.1mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
SG-8018CG 22.0000M-TJHPA0XTAL OSC XO 22.0000MHZ CMOS SMD |
4,686 |
|
Datasheet |
SG-8018 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 22 MHz | Enable/Disable | CMOS | 1.62V ~ 3.63V | ±50ppm | - | -40°C ~ 105°C | - | 8.1mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
SG-8018CG 51.8920M-TJHSA0XTAL OSC XO 51.8920MHZ CMOS SMD |
7,842 |
|
Datasheet |
SG-8018 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 51.892 MHz | Standby (Power Down) | CMOS | 1.62V ~ 3.63V | ±50ppm | - | -40°C ~ 105°C | - | 8.1mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
SG-8018CG 1.0000M-TJHSA6XTAL OSC XO 1.0000MHZ CMOS SMD |
7,152 |
|
Datasheet |
SG-8018 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 1 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 105°C | - | 6.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
SG-8018CG 21.4773M-TJHPA0XTAL OSC XO 21.4773MHZ CMOS SMD |
2,236 |
|
Datasheet |
SG-8018 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 21.4773 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 105°C | - | 6.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
SG-8018CG 12.2880M-TJHPA0XTAL OSC XO 12.2880MHZ CMOS SMD |
3,722 |
|
Datasheet |
SG-8018 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 12.288 MHz | Enable/Disable | CMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 105°C | - | 3.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
SG-8018CG 28.63636M-TJHPA0XTAL OSC XO 28.63636MHZ CMOS |
9,902 |
|
Datasheet |
SG-8018 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 28.63636 MHz | Enable/Disable | CMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 105°C | - | 8.1mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
TG2016SMN 16.3840M-ECGNNM0XTAL OSC TCXO 16.3840MHZ |
4,712 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TG2016SMN 39.0000M-ECGNNM0XTAL OSC TCXO 39.0000MHZ |
2,077 |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 39 MHz | - | Clipped Sine Wave | 1.8V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
|
|
TG2016SMN 50.0000M-ECGNNM0XTAL OSC TCXO 50.0000MHZ |
2,251 |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 50 MHz | - | Clipped Sine Wave | 1.8V | ±500ppb | - | -40°C ~ 85°C | - | 2mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
|
|
TG2016SMN 40.0000M-MCGNNM0XTAL OSC TCXO 40.0000MHZ |
3,024 |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 40 MHz | - | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
|
SG7050CAN 26.000000M-TJGA0XTAL OSC XO 26.0000MHZ CMOS SMD |
6,368 |
|
Datasheet |
SG7050CAN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 26 MHz | Standby (Power Down) | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.059" (1.50mm) |
|

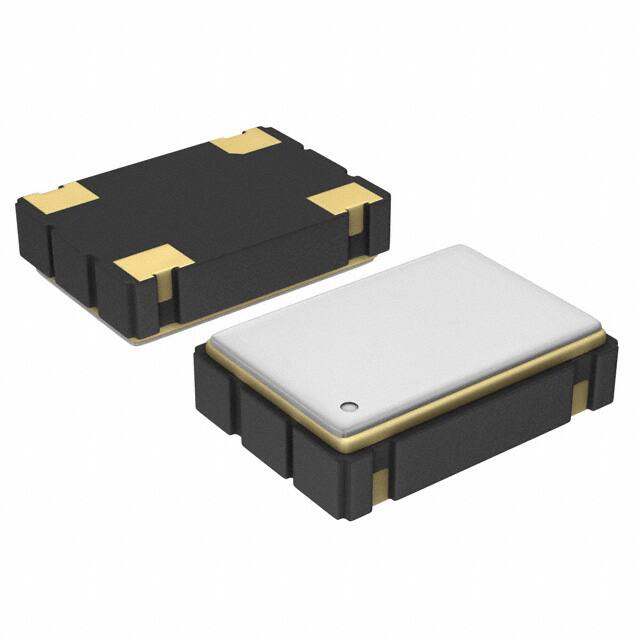

SG7050CAN 16.000000M-TJGA0XTAL OSC XO 16.0000MHZ CMOS SMD |
4,768 |
|
Datasheet |
SG7050CAN | 4-SMD, No Lead | Bulk | Active | Crystal | XO (Standard) | 16 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|
|
SG7050CAN 48.000000M-TJHA0XTAL OSC XO 48.0000MHZ CMOS SMD |
2,738 |
|
Datasheet |
SG7050CAN | 4-SMD, No Lead | Bulk | Active | Crystal | XO (Standard) | 48 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 105°C | - | 2.6mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.055" (1.40mm) |
|
|
SG7050CAN 20.000000M-TJGA0SG7050CAN 20.000000M-TJGA0: XTAL |
5,384 |
|
Datasheet |
SG7050CAN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 20 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
SG7050CAN 32.000000M-TJGA0SG7050CAN 32.000000M-TJGA0: XTAL |
8,706 |
|
Datasheet |
SG7050CAN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
SG7050CAN 24.576000M-TJGA0SG7050CAN 24.576000M-TJGA0: XTAL |
9,377 |
|
Datasheet |
SG7050CAN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24.576 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 2.2mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.059" (1.50mm) |
Oscillators Electronic Components
Frequently Asked Questions
Q1: What products are included in Oscillators?
This category includes related Oscillators subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Oscillators components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Oscillators and other electronic components.
