Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8W-26.000MBE-TXTAL OSC XO 26.0000MHZ CMOS SMD |
2,346 |
|
Datasheet |
8W | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 26 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 15mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
7Q-16.367667MBN-TXTAL OSC TCXO 16.367667MHZ SNWV |
8,890 |
|
Datasheet |
7Q | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | TCXO | 16.367667 MHz | - | Clipped Sine Wave | 3.3V | ±2ppm | - | -30°C ~ 85°C | - | 2mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
|
7Q-16.3676MBG-TXTAL OSC TCXO 16.3676MHZ SNWV |
8,970 |
|
Datasheet |
7Q | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | TCXO | 16.3676 MHz | - | Clipped Sine Wave | 3.3V | ±500ppb | - | -30°C ~ 85°C | - | 2mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
|
7Q-26.000MBS-TXTAL OSC VCTCXO 26.0000MHZ SNWV |
8,181 |
|
Datasheet |
7Q | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | VCTCXO | 26 MHz | - | Clipped Sine Wave | 3.3V | ±2ppm | - | -30°C ~ 85°C | - | 2mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
7W-12.288MBB-TXTAL OSC XO 12.2880MHZ CMOS SMD |
335 |
|
Datasheet |
7W | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 12.288 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -10°C ~ 70°C | - | 20mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.056" (1.42mm) |
|
7XZ-32.768KBA-TXTAL OSC XO 32.7680KHZ CMOS SMD |
6,353 |
|
Datasheet |
7XZ | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 32.768 kHz | Enable/Disable | CMOS | 3.3V | ±25ppm | - | -10°C ~ 70°C | - | 3mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
|
7W-36.000MBB-TXTAL OSC XO 36.0000MHZ CMOS SMD |
1,914 |
|
Datasheet |
7W | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 36 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -10°C ~ 70°C | - | 20mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.056" (1.42mm) |
|
7X-30.000MBB-TXTAL OSC XO 30.0000MHZ CMOS SMD |
238 |
|
Datasheet |
7X | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 30 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -10°C ~ 70°C | - | 20mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
SG-310SDF 27.0000MB3XTAL OSC XO 27.0000MHZ CMOS SMD |
493 |
|
Datasheet |
SG-310 | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 27 MHz | Standby (Power Down) | CMOS | 2.5V | ±50ppm | - | -20°C ~ 70°C | - | 2.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
7XZ-32.768KDA-TXTAL OSC XO 32.7680KHZ CMOS SMD |
6,177 |
|
Datasheet |
7XZ | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 32.768 kHz | Enable/Disable | CMOS | 1.8V | ±25ppm | - | -10°C ~ 70°C | - | 3mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
8P26070004XTAL OSC TCXO 26.0000MHZ SNWV |
3,997 |
|
Datasheet |
8P | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 26 MHz | Enable/Disable | Clipped Sine Wave | 1.8V | ±2ppm | - | -30°C ~ 85°C | - | 2mA | - | Surface Mount | - | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.024" (0.60mm) |
|
7L-19.200MCS-TXTAL OSC VCTCXO 19.2000MHZ SNWV |
9,441 |
|
Datasheet |
7L | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 19.2 MHz | - | Clipped Sine Wave | 2.5V | ±2ppm | - | -30°C ~ 85°C | - | 2mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
8NE-25.000MDM-TXTAL OSC XO 25.000MHZ CMOS SMD |
10,739 |
|
Datasheet |
8NE | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 25 MHz | Enable/Disable | CMOS (Low EMI) | 1.8V | ±50ppm | - | -40°C ~ 125°C | - | 10mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.032" (0.81mm) |
|

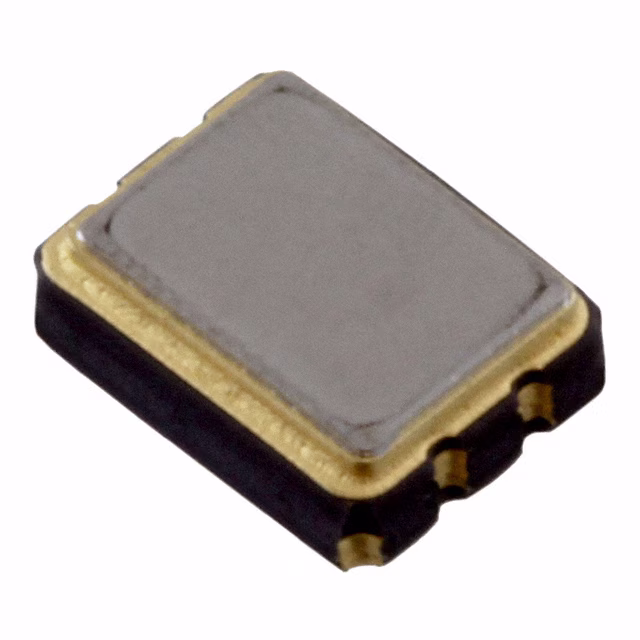

AUZ-32.768KBE-TXTAL OSC XO 32.7680KHZ CMOS SMD |
6,000 |
|
Datasheet |
AUZ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 6mA | AEC-Q100 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
|
8NE-24.576MBM-TXTAL OSC XO 24.576MHZ CMOS SMD |
2,928 |
|
Datasheet |
8NE | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 24.576 MHz | Enable/Disable | CMOS (Low EMI) | 3.3V | ±50ppm | - | -40°C ~ 125°C | - | 10mA | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.032" (0.81mm) |
|
7C-40.000MBA-TXTAL OSC XO 40.0000MHZ CMOS SMD |
1,113 |
|
Datasheet |
7C | 4-SMD, No Lead | Tape & Reel (TR) | Discontinued at Digi-Key | Crystal | XO (Standard) | 40 MHz | Enable/Disable | CMOS | 3.3V | ±25ppm | - | -10°C ~ 70°C | - | 30mA | - | Surface Mount | - | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.055" (1.40mm) |
|
AU-48.000MBE-TXTAL OSC XO 48.0000MHZ CMOS SMD |
1,468 |
|
Datasheet |
AU | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 48 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 6mA | AEC-Q100 | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.043" (1.10mm) |
|
SG-210STF 20.0000MLXTAL OSC XO 20.0000MHZ CMOS SMD |
1,544 |
|
Datasheet |
SG-210STF | 4-SMD, No Lead | Strip | Obsolete | Crystal | XO (Standard) | 20 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
SG-636PCE 24.0000MC0:ROHSXTAL OSC XO 24.0000MHZ CMOS SMD |
450 |
|
Datasheet |
SG-636 | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Obsolete | Crystal | XO (Standard) | 24 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -20°C ~ 70°C | - | 9mA | - | Surface Mount | 4-SOJ | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.106" (2.70mm) |
|
TC-16.0972MBD-TMEMS OSC XO 16.0972MHZ CMOS SMD |
2,450 |
|
Datasheet |
TC | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | MEMS | XO (Standard) | 16.0972 MHz | Enable/Disable | CMOS | 3.3V | ±25ppm | - | -40°C ~ 85°C | - | 25mA | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
