Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC3SD21YXPDFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
|
PC3SD21YXPLFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | - | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
|
PC4SD11YXPCFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 5mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
PC4SF11YVZBFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
PC4SF21YVZBFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC4SF21YVZCFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC4SD21NXZCFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Datasheet |
- | 6-SMD | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
|
|
PC4SF11YVZAFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
TLP160J(U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Obsolete | Triac | No | 1 | 2500Vrms | 600 V | 500V/µs | 10mA | 70 mA | 1mA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP160J(TPR,U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 2500Vrms | 600 V | 500V/µs | 10mA | 70 mA | 1mA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP161G(U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
0 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Obsolete | Triac | Yes | 1 | 2500Vrms | 400 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP161J(U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Obsolete | Triac | Yes | 1 | 2500Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP260JTPRPFOPTOISOLATOR 3KV TRIAC 4SOP |
0 |
|
- |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3000Vrms | 600 V | 500V/µs (Typ) | 10mA | 70 mA | 1mA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-SOP | UR |
.JPG)
|
TLP3023SFOPTOISOLATOR 5KV TRIAC 6DIP 5L |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 400 V | 200V/µs | 5mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
TLP3042SCFOPTOISOLATOR 5KV TRIAC 6DIP 5L |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 400 V | 200V/µs | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
.JPG)
|

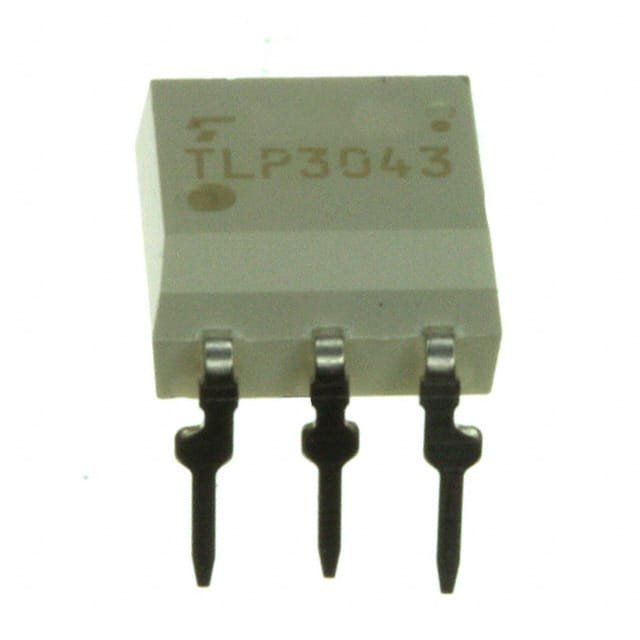

TLP3043(S,C,F)OPTOISOLATOR 5KV TRIAC 6DIP 5L |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 400 V | 200V/µs | 5mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
TLP525G-2(F)OPTOISOLATOR 2.5KV TRIAC 8DIP |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 2 | 2500Vrms | 400 V | 200V/µs | 10mA | 80 mA | 200µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 8-DIP | UR |
|
MOC3031SDMOPTOISOLATOR 4.17KV TRIAC 6SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
.JPG)
|

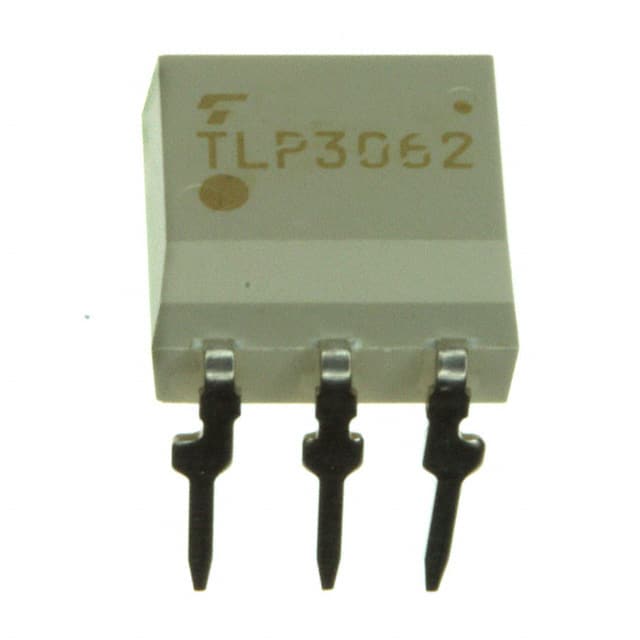

TLP3062(S,C,F)OPTOISOLATOR 5KV TRIAC 6DIP 5L |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
|
PC4SD21YXPCFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Datasheet |
- | 6-SMD | Tape & Reel (TR) | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
Triac, SCR Output Optoisolators Electronic Components
Explore Triac, SCR Output Optoisolators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
