Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC8103OPTOISOLATOR 5.3KV TRANS 6-DIP |
1,972 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Last Time Buy | 1 | 5300Vrms | 108% @ 10mA | 173% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 30V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
MOC8102-X017TOPTOISO 5.3KV TRANSISTOR 6SMD |
1,304 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Last Time Buy | 1 | 5300Vrms | 73% @ 10mA | 117% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 30V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
PS2562-1-L-AOPTOISOLATOR 5KV DARL 4DIP |
3,641 |
|
Datasheet |
NEPOC | 4-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 700% @ 1mA | 3400% @ 1mA | - | 100µs, 100µs | DC | Darlington | 40V | 200mA | 1.17V | 80 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
SFH601-3X009OPTOISO 5.3KV TRANS W/BASE 6SMD |
1,820 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 100V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
TLP291-4(V4GBTPEOPTOISOLTR 2.5KV 4CH TRANS 16SO |
7,667 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 2500Vrms | 100% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|
VOD223TOPTOISO 4KV DARL 2CH 8SOIC |
556 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 4000Vrms | 500% @ 1mA | - | 15µs, 30µs (Min) | - | DC | Darlington | 30V | - | 1.3V (Max) | 30 mA | 1V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|

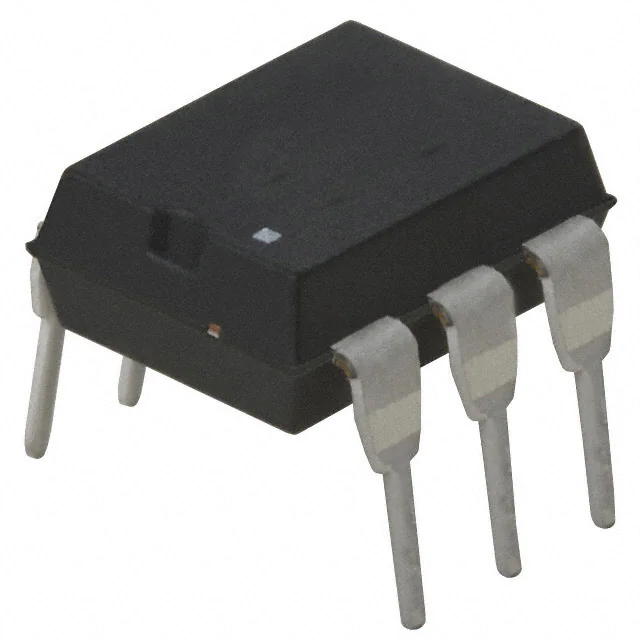

LDA111OPTOISO 3.75KV DARL W/BASE 6DIP |
297 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 3750Vrms | 300% @ 1mA | 30000% @ 1mA | 8µs, 345µs | - | DC | Darlington with Base | 30V | - | 1.2V | 1 mA | 1V | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
|
LDA100STROPTOISO 3.75KV TRANS W/BASE 6SMD |
474 |
|
- |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 33% @ 1mA | - | 7µs, 20µs | - | AC, DC | Transistor with Base | 30V | - | 1.2V | 1 mA | 500mV | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
|
IL250OPTOISO 5.3KV TRANS W/BASE 6DIP |
4,342 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 50% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
H11AG1SR2MOPTOISO 4.17KV TRANS W/BASE 6SMD |
2,263 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 4170Vrms | 100% @ 1mA | - | 5µs, 5µs | - | DC | Transistor with Base | 30V | 50mA | 1.25V | 50 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
FOD2742BR2OPTOISO 2.5KV TRANSISTOR 8SOIC |
22,336 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 70V | 50mA | 1.2V | - | 400mV | - | - | -25°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
MOC8204SMOPTOISO 4.17KV TRANS W/BASE 6SMD |
576 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | 1 | 4170Vrms | 20% @ 10mA | - | 5µs, 5µs | - | DC | Transistor with Base | 400V | 100mA | 1.15V | 80 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
MCT623SDOPTOISO 5KV 2CH TRANSISTOR 8SMD |
991 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 5000Vrms | 100% @ 5mA | - | 3µs, 3µs | - | DC | Transistor | 30V | 30mA | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|
|
TLP293-4(LGBTR,EOPTOISOLATOR 3.75KV TRANS SO16 |
10,970 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP293-4(V4LATPEOPTOISOLATOR 3.75KV TRANS SO16 |
7,976 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 50% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP293-4(V4-TR,EOPTOISOLATOR 3.75KV TRANS SO16 |
7,345 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP293-4(V4-TP,EOPTOISOLATOR 3.75KV TRANS SO16 |
5,863 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP293-4(TPR,EOPTOISOLATOR 3.75KV TRANS SO16 |
4,888 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
6N136-X001OPTOISO 5.3KV TRANS W/BASE 8DIP |
3,241 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5300Vrms | 19% @ 16mA | - | 200ns, 200ns | - | DC | Transistor with Base | 15V | 8mA | 1.33V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
|
SFH601-3X017TOPTOISO 5.3KV TRANS W/BASE 6SMD |
2,990 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 100V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
