Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELD205OPTOISO 3.75KV 2CH TRANS 8-SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 3750Vrms | 40% @ 10mA | 80% @ 10mA | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
|
ELD205-VOPTOISO 3.75KV 2CH TRANS 8-SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 3750Vrms | 40% @ 10mA | 80% @ 10mA | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
|
ELD206OPTOISO 3.75KV 2CH TRANS 8-SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 3750Vrms | 63% @ 10mA | 125% @ 10mA | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
|
ELD206(TA)-VOPTOISO 3.75KV 2CH TRANS 8-SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 3750Vrms | 63% @ 10mA | 125% @ 10mA | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
ELD207OPTOISO 3.75KV 2CH TRANS 8-SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 3750Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
|
ELD207-VOPTOISO 3.75KV 2CH TRANS 8-SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 3750Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
|
ELD207(TB)-VOPTOISO 3.75KV 2CH TRANS 8-SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 3750Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
|
ELD211OPTOISO 3.75KV 2CH TRANS 8-SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 3750Vrms | 20% @ 10mA | - | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
|
ELD211(TB)OPTOISO 3.75KV 2CH TRANS 8-SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 3750Vrms | 20% @ 10mA | - | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
|
ELD217OPTOISO 3.75KV 2CH TRANS 8-SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 3750Vrms | 100% @ 1mA | - | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
|
ELD217(TA)-VOPTOISO 3.75KV 2CH TRANS 8-SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 3750Vrms | 100% @ 1mA | - | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
|
ELD217(TB)OPTOISO 3.75KV 2CH TRANS 8-SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 3750Vrms | 100% @ 1mA | - | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 8-SOP |
|
H11A1-VOPTOISO 5KV TRANS W/BASE 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 50% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Through Hole | 6-DIP |
|

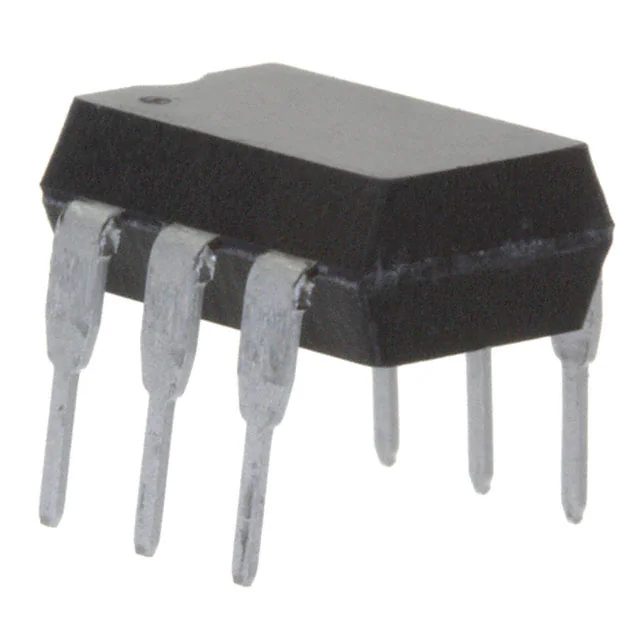

H11A3-VOPTOISO 5KV TRANS W/BASE 6DIP |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 5000Vrms | 20% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Through Hole | 6-DIP |
.JPG)
|
H11A4S(TA)-VOPTOISO 5KV TRANS W/BASE 6SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 10% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SMD |
|
|
H11A5S(TB)-VOPTOISO 5KV TRANS W/BASE 6SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 30% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SMD |
|
|
H11AA1S1(TA)OPTOISO 5KV TRANS W/BASE 6SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 20% @ 10mA | - | 10µs, 10µs (Max) | 10µs, 10µs (Max) | AC, DC | Transistor with Base | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
|
H11AA1S(TA)OPTOISO 5KV TRANS W/BASE 6SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 20% @ 10mA | - | 10µs, 10µs (Max) | 10µs, 10µs (Max) | AC, DC | Transistor with Base | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
|
H11AA1S(TB)OPTOISO 5KV TRANS W/BASE 6SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 20% @ 10mA | - | 10µs, 10µs (Max) | 10µs, 10µs (Max) | AC, DC | Transistor with Base | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
|
H11AA3S(TA)OPTOISO 5KV TRANS W/BASE 6SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 50% @ 10mA | - | 10µs, 10µs (Max) | 10µs, 10µs (Max) | AC, DC | Transistor with Base | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
