Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS2533-1-V-AOPTOISOLATOR 5KV DARL 4DIP |
0 |
|
Datasheet |
NEPOC | 4-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | 1 | 5000Vrms | 1500% @ 1mA | 6500% @ 1mA | - | 100µs, 100µs | DC | Darlington | 350V | 150mA | 1.15V | 80 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
PC354NOPTOISOLATOR 3.75KV TRANS 4-SMD |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
PC357N0OPTOISO 3.75KV TRANS 4-MINI-FLAT |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
PC357N1OPTOISO 3.75KV TRANS 4-MINI-FLAT |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
|
PC357N2OPTOISO 3.75KV TRANS 4-MINI-FLAT |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
|
PC357N4OPTOISO 3.75KV TRANS 4-MINI-FLAT |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | 300% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
|
PC357NTOPTOISO 3.75KV TRANS 4-MINI-FLAT |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
|
PC367NOPTOISO 3.75KV TRANS 4-MINI-FLAT |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | 100% @ 500µA | 500% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|

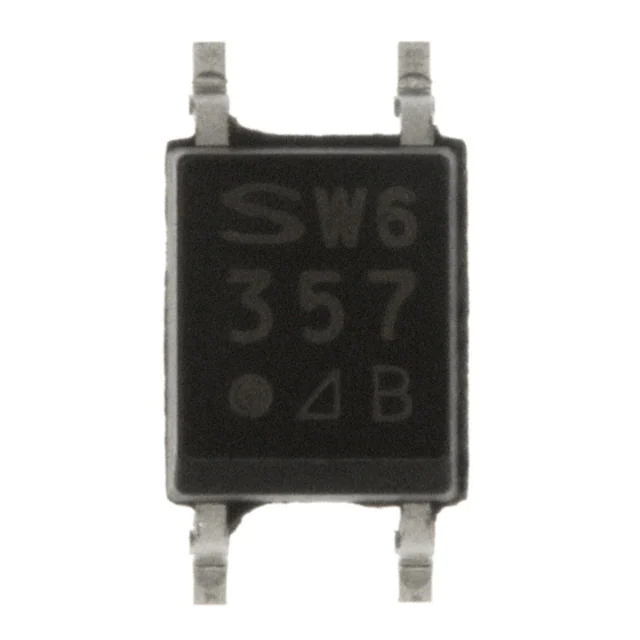

PC357NTJ000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
PC123P2J000FOPTOISOLATR 5KV TRANSISTOR 4-SMD |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 5000Vrms | 100% @ 5mA | 250% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
|
OR-6N136S-TA1OPTOISOLATOR TRANSISTOR WITH BAS |
0 |
|
- |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
HCPL-0700-060EOPTOISO 3.75KV DARL W/BASE 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 1.6µs, 10µs | - | DC | Darlington with Base | 7V | 60mA | 1.4V | 20 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SO |
|
|
PS8101-V-F3-K-AXOPTOISOLATOR 3.75KV TRANS 6SO |
0 |
|
- |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Not For New Designs | 1 | 3750Vrms | 20% @ 16mA | 35% @ 16mA | 500ns, 600ns | - | DC | Transistor | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 5-SOP |
|
|
PC814XPJ000FOPTOISOLATOR 5KV TRANS 4SMD |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-SMD |
|
TCED1100OPTOISOLATOR 5KV TRANS 4DIP |
0 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 600% @ 1mA | - | - | 300µs, 250µs | DC | Transistor | 35V | 80mA | 1.15V | 60 mA | 1V | - | - | -40°C ~ 100°C | Through Hole | 4-DIP |
|
TLP388(D4-TPL,ETRANSISTOR OPTOCOUPLER HIGH VCEO |
0 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 350V | 50mA | 1.25V | 50 mA | 400mV | - | - | -55°C ~ 125°C | Surface Mount | 6-SO, 4 Lead |
|
QTM415T1MINI-FLAT PACKAGE PHOTODARLINGTO |
0 |
|
Datasheet |
Optocoupler | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 600% @ 1mA | - | - | 300µs, 250µs (Max) | DC | Darlington | 35V | 80mA | 1.4V | 50 mA | 1V | - | - | -55°C ~ 110°C | Surface Mount | 4-Mini-Flat |
|
TCET4600OPTOISO 5.3KV 4CH TRANS 16-DIP |
0 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | 4 | 5300Vrms | 20% @ 5mA | 300% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 16-DIP |
|
TCET4600GOPTOISO 5.3KV 4CH TRANS 16DIP |
0 |
|
- |
- | 16-DIP (0.400", 10.16mm) | Tube | Obsolete | 4 | 5300Vrms | 20% @ 5mA | 300% @ 5mA | 6µs, 5µs | 3µs, 4.7µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | - | - | -55°C ~ 100°C | Through Hole | 16-DIP |
|
|
HCPL-0454-060EOPTOISO 3.75KV TRANSISTOR 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 3750Vrms | 21% @ 16mA | - | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-SO |
