Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CNY117-2X017TOPTOISO 5KV TRANS W/BASE 6SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SMD |
|
|
CNY117-3X017TOPTOISO 5KV TRANS W/BASE 6SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SMD |
|
|
CNY117F-1X017TOPTOISOLTR 5KV TRANSISTOR 6-SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SMD |
|
|
CNY117F-2X017TOPTOISOLTR 5KV TRANSISTOR 6-SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 6-SMD |
|
SFH615AY-X019TOPTOISOLATOR 5.3KV TRANS 4SMD |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 50% @ 5mA | 150% @ 5mA | 2µs, 25µs | - | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
|
SFH615AGR-X017TOPTOISOLATOR 5.3KV TRANS 4SMD |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 100% @ 5mA | 300% @ 5mA | 2µs, 25µs | - | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 4-SMD |
|
SFH617A-1X016OPTOISOLATOR 5.3KV TRANS 4DIP |
0 |
|
Datasheet |
- | 4-DIP (0.400", 10.16mm) | Tube | Active | 1 | 5300Vrms | 40% @ 10mA | 80% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Through Hole | 4-DIP |
|
|
SFH620A-2X016OPTOISOLATOR 5.3KV TRANS 4DIP |
0 |
|
Datasheet |
- | 4-DIP (0.400", 10.16mm) | Tube | Active | 1 | 5300Vrms | 63% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 4-DIP |
|
|
IS604SMT&R6PIN AC INPUT, SINGLE OPTOCOUPLE |
0 |
|
Datasheet |
IS604 | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 50% @ 10mA | - | 3µs, 3µs | 2µs, 2µs | AC, DC | Transistor with Base | 30V | - | 1.2V | 100 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | - |
|
|
H11AA4SMT&R6PIN AC INPUT, SINGLE OPTOCOUPLE |
0 |
|
Datasheet |
H11A | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 100% @ 10mA | - | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Surface Mount | - |
|
|
IS733SMT&R6PIN AC INPUT, SINGLE OPTOCOUPLE |
0 |
|
Datasheet |
IS733 | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 15% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | - |
|
|
H11AA1XSMT&R6PIN AC INPUT, SINGLE OPTOCOUPLE |
0 |
|
Datasheet |
H11A | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 20% @ 10mA | - | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Surface Mount | - |
|
|
H11AA3SMT&R6PIN AC INPUT, SINGLE OPTOCOUPLE |
0 |
|
Datasheet |
H11A | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 50% @ 10mA | - | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Surface Mount | - |
|
|
IS733XSMT&R6PIN AC INPUT, SINGLE OPTOCOUPLE |
0 |
|
Datasheet |
IS733 | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 15% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 6-SMD |
|
|
H11AA1SMT&R6PIN AC INPUT, SINGLE OPTOCOUPLE |
0 |
|
Datasheet |
H11A | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 20% @ 10mA | - | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Surface Mount | - |
|
|
H11AA2SMT&R6PIN AC INPUT, SINGLE OPTOCOUPLE |
0 |
|
Datasheet |
H11A | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 10% @ 10mA | - | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Surface Mount | - |
|
|
H11AA2XSMT&R6PIN AC INPUT, SINGLE OPTOCOUPLE |
0 |
|
- |
H11A | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 10% @ 10mA | - | - | 4µs, 3µs | AC, DC | Transistor with Base | 35V | 50mA | 1.2V | 50 mA | 400mV | - | - | -30°C ~ 100°C | Surface Mount | - |
|
|
IS604XSMT&R6PIN AC INPUT, SINGLE OPTOCOUPLE |
0 |
|
- |
IS604 | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5300Vrms | 50% @ 10mA | - | 3µs, 3µs | 2µs, 2µs | AC, DC | Transistor with Base | 30V | - | 1.2V | 100 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | - |
|
|
SFH600-1X009TOPTOISO 5.3KV TRANS W/BASE 6SMD |
0 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3.2µs, 3µs | 2µs, 2.5µs | DC | Transistor with Base | 70V | 50mA | 1.25V | 60 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|

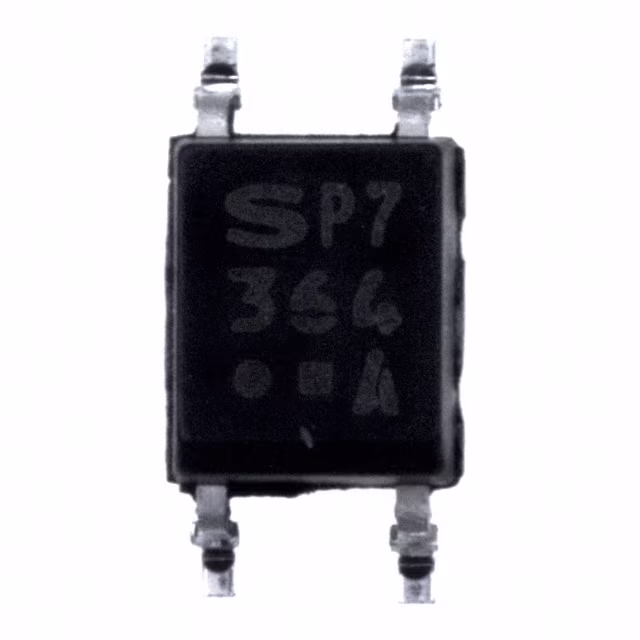

PC364N1OPTOISO 3.75KV TRANS 4-MINI-FLAT |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 3750Vrms | 100% @ 500µA | 300% @ 500µA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
