Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CNY17F4MTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
1,636 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Bulk | Active | 1 | 4170Vrms | 160% @ 10mA | 320% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
CNY171VMTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
4,463 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Bulk | Active | 1 | 4170Vrms | 40% @ 10mA | 80% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor with Base | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
MOC212MTRANSISTOR OUTPUT OPTOCOUPLER, 2 |
3,000 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | 1 | 2500Vrms | 50% @ 10mA | - | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
CNY171TVMTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
2,990 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | 1 | 4170Vrms | 40% @ 10mA | 80% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor with Base | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
|
CNY174VMTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
2,650 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Bulk | Active | 1 | 4170Vrms | 160% @ 10mA | 320% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor with Base | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
CNY171SMTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
1,880 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | 1 | 4170Vrms | 40% @ 10mA | 80% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor with Base | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
|
4N36MPHOTOTRANSISTOR OUTPUT OPTOCOUPL |
29,555 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 9µs | - | DC | Transistor with Base | 80V | - | 1.2V | 60 mA | 300mV | - | - | -55°C ~ 110°C | Through Hole | 6-DIP |
|
|
4N26SMPHOTOTRANSISTOR OUTPUT OPTOCOUPL |
2,939 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | 1 | 4170Vrms | 20% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 500mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
|
CNY17F4TVMTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
2,160 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | 1 | 4170Vrms | 160% @ 10mA | 320% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
CNY17F1SR2MTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
2,000 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | 1 | 4170Vrms | 40% @ 10mA | 80% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
|
4N35VMPHOTOTRANSISTOR OUTPUT OPTOCOUPL |
1,980 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Bulk | Active | 1 | 4170Vrms | 100% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 300mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
|
CNY17F4SVMTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
1,970 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | 1 | 4170Vrms | 160% @ 10mA | 320% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
H11A1MTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
1,765 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | 1 | 5000Vrms | 50% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 80V | - | 1.2V | 60 mA | 400mV | - | - | -55°C ~ 110°C | Through Hole | 6-DIP |
|
|
4N25TVMPHOTOTRANSISTOR OUTPUT OPTOCOUPL |
4,700 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | 1 | 4170Vrms | 20% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 500mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
|
4N38TVM4N38M - HIGH VOLTAGE PHOTOTRANSI |
2,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MOC205MTRANSISTOR OUTPUT OPTOCOUPLER, 2 |
18,410 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | 1 | 2500Vrms | 40% @ 10mA | 80% @ 10mA | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
MOC206MTRANSISTOR OUTPUT OPTOCOUPLER, 2 |
9,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

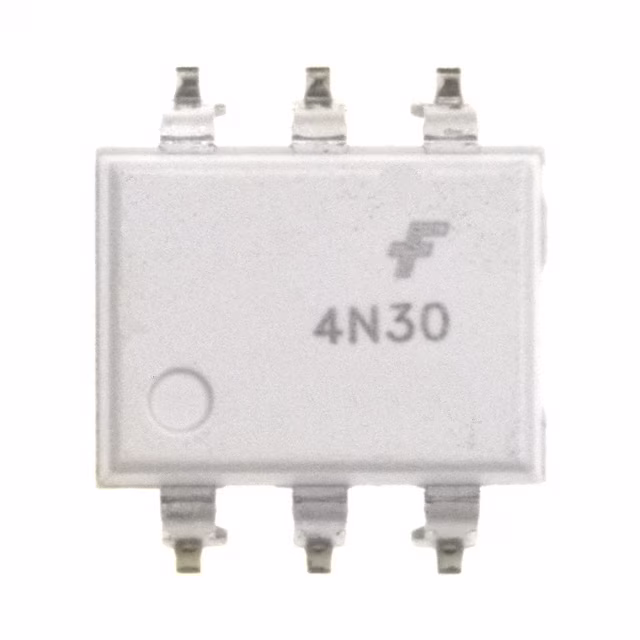

4N30SMGENERAL PURPOSE PHOTODARLINGTON |
15,366 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | 1 | 4170Vrms | 100% @ 10mA | - | 5µs, 40µs (Max) | - | DC | Darlington with Base | 30V | 150mA | 1.2V | 80 mA | 1V | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
|
4N29MGENERAL PURPOSE PHOTODARLINGTON |
3,040 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | 1 | 5000Vrms | 100% @ 10mA | - | 5µs, 40µs (Max) | - | DC | Darlington with Base | 55V | - | 1.2V | 60 mA | 1V | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
H11A1SR2VMTRANSISTOR OUTPUT OPTOCOUPLER, 7 |
2,000 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Active | 1 | 4170Vrms | 50% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
