Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FOD2742CR1TRANSISTOR OUTPUT OPTOCOUPLER |
3,140 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 70V | 50mA | 1.2V | - | 400mV | - | - | -25°C ~ 85°C | Surface Mount | 8-SOIC |
|
FOD2743CSTRANSISTOR OUTPUT OPTOCOUPLER |
3,000 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 5000Vrms | 50% @ 1mA | 100% @ 1mA | - | - | DC | Transistor | 70V | 50mA | 1.07V | - | 400mV | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
FOD2743BTTRANSISTOR OUTPUT OPTOCOUPLER |
2,000 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Obsolete | 1 | 5000Vrms | 50% @ 1mA | 100% @ 1mA | - | - | DC | Transistor | 70V | 50mA | 1.07V | - | 400mV | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
FOD2743CTRANSISTOR OUTPUT OPTOCOUPLER |
1,846 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 50% @ 1mA | 100% @ 1mA | - | - | DC | Transistor | 70V | 50mA | 1.07V | - | 400mV | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
FOD2741CSTRANSISTOR OUTPUT OPTOCOUPLER |
1,544 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
TLP321-2BLSMT&R,8PIN TRANSISTOR OUTPUT, DUAL CHA |
2,000 |
|
Datasheet |
TLP321-2 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 5300Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | - | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SMD |
|
H11AA4300AC IN-DARLINGTON OUT OPTOCOUPLER |
116,000 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 100% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | - | 1.2V | 100 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
MCT5210TRANSISTOR OUTPUT OPTOCOUPLER |
73,615 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5300Vrms | 70% @ 3mA | - | 10µs, 10µs | - | DC | Transistor with Base | 30V | - | 1.2V | 40 mA | 400mV | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
TIL186-2AC IN-DARLINGTON OUT OPTOCOUPLER |
5,350 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4N36TRANSISTOR OUTPUT OPTOCOUPLER |
5,129 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Bulk | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 10µs | - | DC | Transistor with Base | 30V | 50mA | 1.3V | 50 mA | - | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
|
OR-357C-S-TP-G-(GK)OPTOCOUPLER TRANS OUTPUT SMD4 |
2,420 |
|
- |
- | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ACPL-827-06CEOPTOISOLATOR 5KV 2CH TRANS 8DIP |
0 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | - | - | -30°C ~ 100°C | Through Hole | 8-DIP |
|
|
FOD2741CVTRANSISTOR OUTPUT OPTOCOUPLER |
13,375 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
TIL920AC IN-DARLINGTON OUT OPTOCOUPLER |
3,168 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FOD2743CSDVTRANSISTOR OUTPUT OPTOCOUPLER |
2,319 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Obsolete | 1 | 5000Vrms | 50% @ 1mA | 100% @ 1mA | - | - | DC | Transistor | 70V | 50mA | 1.07V | - | 400mV | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
|
H11D2VMTRANSISTOR OUTPUT OPTOCOUPLER |
2,000 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Bulk | Obsolete | 1 | 7500Vpk | 20% @ 10mA | - | 5µs, 5µs | - | DC | Transistor with Base | 300V | 100mA | 1.15V | 80 mA | 400mV | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
H11D2SR2VMTRANSISTOR OUTPUT OPTOCOUPLER |
2,000 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Obsolete | 1 | 7500Vpk | 20% @ 10mA | - | 5µs, 5µs | - | DC | Transistor with Base | 300V | 100mA | 1.15V | 80 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
|
H11G3SR2MDARLINGTON OUTPUT OPTOCOUPLER |
1,534 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bulk | Obsolete | 1 | 7500Vpk | 200% @ 1mA | - | 5µs, 100µs | - | DC | Darlington with Base | 55V | - | 1.3V | 60 mA | 1.2V | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
|
TIL186-3AC IN-DARLINGTON OUT OPTOCOUPLER |
19,484 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

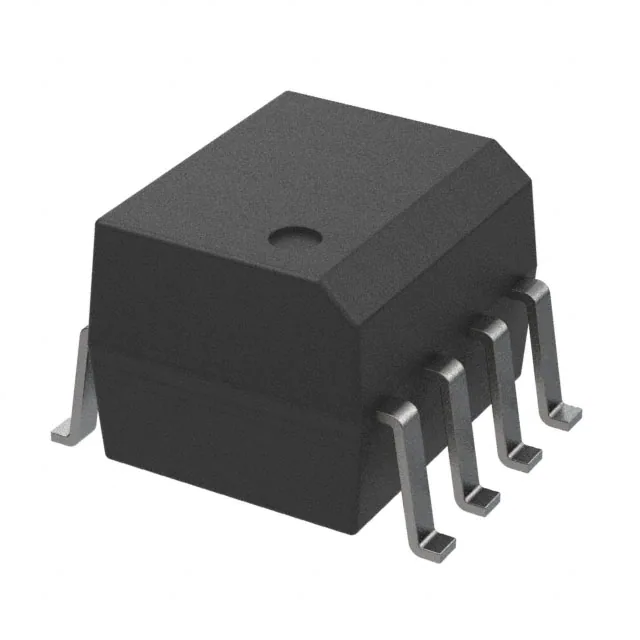

MOCD207VMOPTOISO 2.5KV 2CH TRANS 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor | 70V | 150mA | 1.25V | 60 mA | 400mV | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
Transistor, Photovoltaic Output Optoisolators Electronic Components
Explore Transistor, Photovoltaic Output Optoisolators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
