Phototransistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Dark (Id) (Max) | Wavelength | Viewing Angle | Power - Max | Mounting Type | Orientation | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT4800FE000FSENSOR PHOTO 860NM SIDE VIEW RAD |
0 |
|
Datasheet |
- | Radial | Bag | Obsolete | 35 V | 20 mA | 100 nA | 860nm | 70° | 75 mW | Through Hole | Side View | - | - | - |
|
SFH 305-2/3SENSOR PHOTO 850NM TOP VIEW RAD |
0 |
|
Datasheet |
- | Radial | Bulk | Obsolete | 32 V | 50 mA | 50 nA | 850nm | 32° | 70 mW | Through Hole | Top View | -40°C ~ 80°C | - | - |
|
PNA1801L00NCSENSOR PHOTO 800NM TOP VIEW T1 |
0 |
|
Datasheet |
- | T-1 | - | Obsolete | 30 V | 20 mA | 500 nA | 800nm | 60° | 100 mW | Through Hole | Top View | - | - | - |
|
PNA1801LSSENSOR PHOTO 800NM TOP VIEW T1 |
0 |
|
Datasheet |
- | T-1 | - | Obsolete | 30 V | 20 mA | 500 nA | 800nm | 60° | 100 mW | Through Hole | Top View | - | - | - |
|

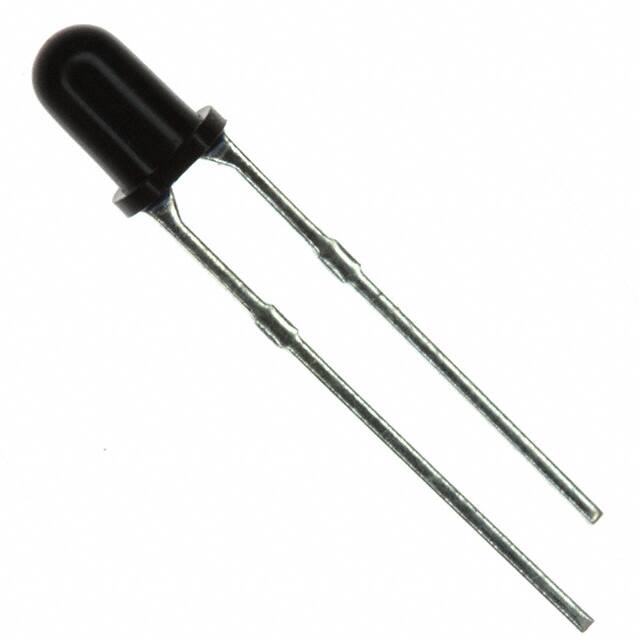

PNA1801LS0NCSENSOR PHOTO 800NM TOP VIEW T1 |
0 |
|
Datasheet |
- | T-1 | - | Obsolete | 30 V | 20 mA | 500 nA | 800nm | 60° | 100 mW | Through Hole | Top View | - | - | - |
|
PNZ108CLRSENSOR PHOTO 900NM TOP TO206AA |
0 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 20 mA | 2 µA | 900nm | 160° | 100 mW | Through Hole | Top View | - | - | - |
|
QSC113C6R0SENSOR PHOTO 880NM TOP VIEW RAD |
0 |
|
Datasheet |
- | Radial, 3mm Dia (T-1) | Tape & Reel (TR) | Obsolete | 30 V | - | 100 nA | 880nm | 8° | 100 mW | Through Hole | Top View | - | - | - |
|
|
QSD733CSENSOR PHOTO 880NM TOP VIEW TO18 |
0 |
|
Datasheet |
- | TO-18-2 | Bulk | Obsolete | 30 V | - | 100 nA | 880nm | 40° | 100 mW | Through Hole | Top View | - | - | - |
|
|
QSE214SENSOR PHOTO 880NM SIDE VIEW RAD |
0 |
|
Datasheet |
- | Radial, Side View | Bulk | Obsolete | 30 V | - | 100 nA | 880nm | 50° | 100 mW | Through Hole | Side View | -40°C ~ 100°C | - | - |
|
QSB363CGRSENSOR PHOTO 940NM TOP VIEW 2SMD |
0 |
|
Datasheet |
- | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 30 V | - | 100 nA | 940nm | 24° | 75 mW | Surface Mount | Top View | -25°C ~ 85°C | - | - |
|
|
QSB363CZRSENSOR PHOTO 940NM TOP VIEW 2SMD |
0 |
|
Datasheet |
- | 2-SMD, Z-Bend | Tape & Reel (TR) | Obsolete | 30 V | - | 100 nA | 940nm | 24° | 75 mW | Surface Mount | Top View | -25°C ~ 85°C | - | - |
|
BPX 38-2/3SENSOR PHOTO 880NM TOP TO206AA |
0 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | Bulk | Obsolete | 50 V | 50 mA | 100 nA | 880nm | 80° | 220 mW | Through Hole | Top View | -40°C ~ 125°C | - | - |
|
|
BPX 43-3/4PHOTOTRANSISTOR NPN 880NM TO-18 |
0 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | Bulk | Obsolete | 50 V | 50 mA | 300 nA | 880nm | 30° | 220 mW | Through Hole | Top View | -40°C ~ 125°C | - | - |
|
SFH 3010-ZSENSOR PHOTO 860NM TOP VIEW 2SMD |
0 |
|
Datasheet |
- | 2-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | 15 V | 15 mA | 50 nA | 860nm | 160° | 130 mW | Surface Mount | Top View | -40°C ~ 100°C | - | - |
|
SFH 303 FA-3/4SENSOR PHOTO 990NM TOP VIEW RAD |
0 |
|
Datasheet |
- | Radial - 3 Leads | Bulk | Obsolete | 35 V | 50 mA | 50 nA | 990nm | 40° | 200 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
|
SFH 309 PPHOTOTRANSISTOR NPN 860NM 3MM |
0 |
|
- |
- | Radial, T-1 Lens | Bulk | Obsolete | 35 V | 15 mA | 200 nA | 860nm | 150° | 165 mW | Through Hole | Top View | - | - | - |
|
|
SFH 309 PFAPHOTOTRANSISTOR NPN 900NM 3MM |
0 |
|
- |
- | Radial, T-1 Lens | Bulk | Obsolete | 35 V | 15 mA | 200 nA | 900nm | 150° | 165 mW | Through Hole | Top View | - | - | - |
|
SFH 3100 FSENSOR PHOTO 920NM SIDE VIEW RAD |
0 |
|
Datasheet |
- | Radial | Bulk | Obsolete | 35 V | 50 mA | 50 nA | 920nm | 28° | 150 mW | Through Hole | Side View | -40°C ~ 85°C | - | - |
|
SFH 3163 FSENSOR PHOTO 920NM SIDE VIEW RAD |
0 |
|
Datasheet |
- | Radial | Bulk | Obsolete | 30 V | 10 mA | 100 nA | 920nm | 150° | 100 mW | Through Hole | Side View | -40°C ~ 85°C | - | - |
|
SFH 3400-2/3-ZSENSOR PHOTO 850NM TOP VIEW 3SMD |
0 |
|
Datasheet |
- | 3-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 20 V | 50 mA | 100 nA | 850nm | 120° | 120 mW | Surface Mount | Top View | -40°C ~ 100°C | - | - |
