Photodiodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BPW 34 SR-ZSENSOR PHOTODIODE 850NM 2SMD GW |
1,999 |
|
Datasheet |
- | 2-SMD, Gull Wing | Bulk | Active | 850nm | - | 400nm ~ 1100nm | PIN | - | 20ns | 32 V | 2nA | 7mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|
SFH 2270RSENSOR PHOTODIODE 560NM 2SMD |
8,192 |
|
Datasheet |
- | 2-SMD, Z-Bend | Tape & Reel (TR) | Active | 560nm | - | 480nm ~ 650nm | PIN | - | 6µs | 2 V | 5pA | - | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|
SFH 205 FASENSOR PHOTODIODE 900NM RADIAL |
4,741 |
|
Datasheet |
- | Radial | Bulk | Active | 900nm | - | 800nm ~ 1100nm | PIN | - | 20ns | 32 V | 2nA | 7.02mm² | 120° | -40°C ~ 100°C | - | - | Through Hole |
|
|
HSD6-C170SENSOR PHOTODIODE 690NM 0805 |
11,354 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 690nm | - | 300nm ~ 1000nm | - | - | - | 30 V | 10nA (Max) | - | 140° | -40°C ~ 85°C | - | - | Surface Mount |
|
SFH 2200SENSOR PHOTODIODE 940NM 2SMD |
4,807 |
|
Datasheet |
Power TOPLED® | 2-SMD, No Lead | Tape & Reel (TR) | Active | 940nm | - | 400nm ~ 1100nm | PIN | 0.7 A/W @ 940nm | 40ns | 20 V | 1nA | 7.02mm² | 120° | -40°C ~ 85°C | - | - | Surface Mount |
|
PD70-01C/TR7SENSOR PHOTODIODE 940NM 2SMD GW |
51,311 |
|
Datasheet |
- | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | 940nm | - | 400nm ~ 1100nm | PIN | - | 50ns | 32 V | 5nA | - | - | -25°C ~ 85°C | - | - | Surface Mount |
|
BPW34SSENSOR PHOTODIODE 900NM 2DIP |
6,259 |
|
Datasheet |
- | 2-DIP | Tube | Active | 900nm | - | 430nm ~ 1100nm | PIN | - | - | 60 V | 2nA | 7.5mm² | 130° | -40°C ~ 100°C | - | - | Through Hole |
|
VEMD6060X01SENSOR PHOTODIODE 820NM 1206 |
1,994 |
|
Datasheet |
- | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 820nm | - | 380nm ~ 1070nm | PIN | - | 60ns | 20 V | 30pA | 0.85mm² | 140° | -40°C ~ 110°C | Automotive | AEC-Q101 | Surface Mount |
|
019-111-411SENSOR PHOTODIODE MICRO 0805 |
2,771 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | 300nm ~ 1100nm | - | - | 1µs | 50 V | 500pA | - | - | -40°C ~ 105°C | - | - | Surface Mount |
|
PDB-C156SENSOR PHOTODIODE 660NM RADIAL |
10,267 |
|
Datasheet |
- | Radial | Cut Tape (CT) | Active | 660nm | Blue | 400nm ~ 1100nm | PIN | - | 15ns | 50 V | 2nA | 8.07mm² | 120° | -40°C ~ 80°C | - | - | Through Hole |
|
VEMD5010X01SENSOR PHOTODIODE 940NM 4SMD |
4,182 |
|
Datasheet |
- | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | 940nm | - | 450nm ~ 1100nm | PIN | - | 100ns | 20 V | 2nA | 7.5mm² | 65° | -40°C ~ 110°C | Automotive | AEC-Q101 | Surface Mount |
|
VEMD5110X01SENSOR PHOTODIODE 940NM 4SMD |
628 |
|
Datasheet |
- | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | 940nm | - | 790nm ~ 1050nm | PIN | - | 100ns | 20 V | 2nA | 7.5mm² | 65° | -40°C ~ 110°C | Automotive | AEC-Q101 | Surface Mount |
|

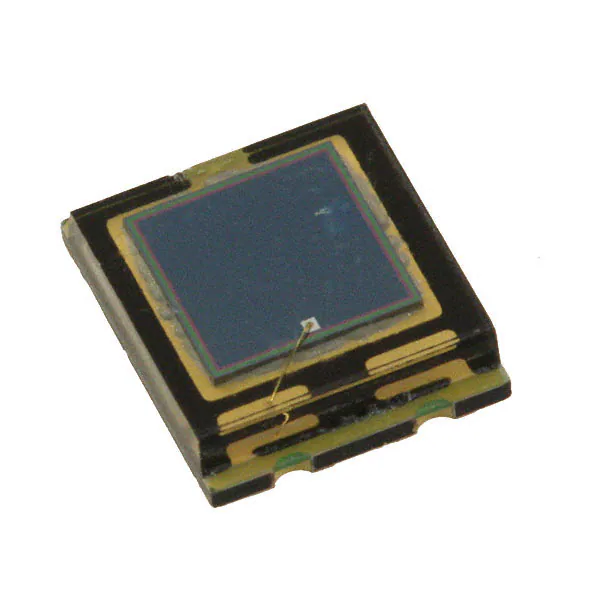

TEMD5010X01SENSOR PHOTODIODE 940NM |
9,112 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | 940nm | - | 430nm ~ 1100nm | PIN | - | 100ns | 60 V | 2nA | 7.5mm² | 130° | -40°C ~ 100°C | - | - | Surface Mount |
|
|
SFH 2401SENSOR PHOTODIODE 950NM 2SMD GW |
528 |
|
Datasheet |
CEA | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | 950nm | Blue | 300nm ~ 1100nm | PIN | - | 100ns | 16 V | 1nA | 8.12mm² | 120° | -40°C ~ 85°C | - | - | Surface Mount |
|
VEMD5080X01SENSOR PHOTODIODE 950NM 4SMD |
2,231 |
|
Datasheet |
- | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | 950nm | - | 350nm ~ 1100nm | PIN | - | 70ns | 20 V | - | 7.5mm² | 65° | -40°C ~ 110°C | Automotive | AEC-Q101 | Surface Mount |
|
SFH 2201SENSOR PHOTODIODE 950NM 2SMD |
1,158 |
|
Datasheet |
Power TOPLED® | 2-SMD, No Lead | Tape & Reel (TR) | Active | 950nm | - | 300nm ~ 1100nm | PIN | - | 40ns | 16 V | 1nA | 8.12mm² | 120° | -40°C ~ 85°C | - | - | Surface Mount |
|
019-141-411-GSENSOR PHOTODIODE GREEN SMD |
608 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | Green | 350nm ~ 1100nm | - | 0.06 A/W @ 450nm | 10ns | 50 V | 500pA | - | - | -40°C ~ 105°C | - | - | Surface Mount |
|
VEMD5060X01SENSOR PHOTODIODE 820NM 4SMD |
1,830 |
|
Datasheet |
- | 4-SMD, No Lead | Tape & Reel (TR) | Active | 820nm | - | 350nm ~ 1070nm | PIN | - | 30ns | 20 V | 200pA | 7.5mm² | 130° | -40°C ~ 110°C | Automotive | AEC-Q101 | Surface Mount |
|
VEMD5160X01SENSOR PHOTODIODE 840NM 4TDFN |
1,408 |
|
Datasheet |
- | 4-TDFN Exposed Pad | Tape & Reel (TR) | Active | 840nm | - | 700nm ~ 1070nm | PIN | - | 30ns | 20 V | 200pA | 7.5mm² | 130° | -40°C ~ 110°C | Automotive | AEC-Q101 | Surface Mount |
|
|
SFH 2713SENSOR PHOTODIODE 635NM 2SMD |
3,088 |
|
Datasheet |
CHIPLED | 2-SMD, No Lead | Tape & Reel (TR) | Active | 635nm | - | 400nm ~ 660nm | PIN | - | 22ns, 31ns | 16 V | 100pA | - | 126° | -40°C ~ 85°C | - | - | Surface Mount |
