Photodiodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH 2700 A01SENSOR PHOTODIODE 890NM 0805 |
0 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 890nm | - | 300nm ~ 1100nm | PIN | - | 120ns | 16 V | 45pA | 0.35mm² | 140° | -40°C ~ 100°C | - | - | Surface Mount |
|
|
SFH 2711 A01SENSOR PHOTODIODE 580NM 0805 |
0 |
|
- |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 580nm | - | 470nm ~ 670nm | PIN | - | 60ns | 16 V | 10pA | 0.35mm² | 110° | -40°C ~ 100°C | - | - | Surface Mount |
|
|
SFH 2240 A01SENSOR PHOTODIODE 620NM 2SMD |
0 |
|
Datasheet |
TOPLED® | 2-SMD, No Lead | Tape & Reel (TR) | Active | 620nm | - | 400nm ~ 690nm | - | 0.37 A/W @ 550nm | 90ns | 16 V | 1nA | 7.02mm² | 120° | -40°C ~ 125°C | - | - | Surface Mount |
|
|
VEMD8083SILICON PIN PHOTODIODE |
0 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MTD3910GC-F3940NM PD 5MM PLASTIC ROUND LENS |
25 |
|
Datasheet |
- | Radial | Bulk | Active | 940nm | - | 850nm ~ 1060nm | PIN | 0.44 A/W @ 970nm | - | 20 V | 10nA | - | - | -20°C ~ 85°C | - | - | Through Hole |
|
|
MTD3910G-F3940NM PD 5MM PLASTIC ROUND LENS |
25 |
|
Datasheet |
- | Radial | Bulk | Active | 940nm | - | 750nm ~ 1060nm | PIN | 0.51 A/W @ 960nm | - | 20 V | 10nA | - | - | -20°C ~ 85°C | - | - | Through Hole |
|
|
APX-SL0025DUO2.1X0.6MM SILICON DUAL PD |
0 |
|
Datasheet |
- | TO-46-3 Lens Top Metal Can | Bulk | Active | - | - | 400nm ~ 1100nm | - | 0.32 A/W @ 630nm, 0.53 A/W @ 850nm, 0.57 A/W @ 950nm | 500ns | 30 V | 2nA | 1.26mm² | - | -40°C ~ 80°C | - | - | Through Hole |
|
|
MTSM1346SMF1-030SENSOR PHOTODIODE 1300NM 6SMD |
0 |
|
Datasheet |
1346 InGaAs | 6-SMD, No Lead | Bulk | Active | 1300nm | - | 600nm ~ 1750nm | PIN | 0.74 A/W @ 1650nm | - | 3 V | 16nA | 0.31mm² | - | -40°C ~ 85°C | - | - | Surface Mount |
|
|
MTSM2601SMF1-030SENSOR PHOTODIODE 800-2600NM SMD |
3 |
|
Datasheet |
2601 InGaAs | 6-SMD, No Lead | Bulk | Active | 800nm ~ 2600nm | - | 800nm ~ 2600nm | PIN | 1.24 A/W @ 2400nm | - | 1 V | 43µA | 0.31mm² | - | -40°C ~ 85°C | - | - | Surface Mount |
|
|
MTSM1346SMF1-030SSENSOR PHOTODIODE 600-1750NM SMD |
2 |
|
Datasheet |
1346 | 6-SMD, No Lead | Bag | Active | 600nm ~ 1750nm | - | 600nm ~ 1750nm | PIN | 0.74 A/W @ 1650nm | - | 1 V | 16nA | 0.30mm Dia | - | -40°C ~ 85°C | - | - | Surface Mount |
|
|
MTSM1346SMR1-100SENSOR PHOTODIODE 600-1750NM SMD |
4 |
|
Datasheet |
1346 | 6-SMD, No Lead | Bag | Active | 600nm ~ 1750nm | - | 600nm ~ 1750nm | PIN | 0.74 A/W @ 1650nm | - | 1 V | 57nA | 1mm Dia | - | -40°C ~ 85°C | - | - | Surface Mount |
|
|
APX-SC0010SENSOR PHOTODIODE TO46-2 |
0 |
|
Datasheet |
- | TO-46-2 Lens Top Metal Can | Bulk | Active | - | - | 200nm ~ 380nm | - | 0.13 A/W @ 254nm | - | 20 V | 300pA | 1mm² | - | -40°C ~ 125°C | - | - | Through Hole |
|
MICROFC-30020-SMT-TR1SENSOR PHOTODIODE 420NM 4SMD |
5 |
|
Datasheet |
C-SERIES SIPM | 4-SMD, No Lead | Strip | Active | 420nm | Blue | 300nm ~ 950nm | Avalanche | - | 600ps | 24.7 V | 50nA | 9mm² | - | -40°C ~ 85°C | - | - | Surface Mount |
|
|
APX-NG0002APD200M INGAAS APD SENSOR |
0 |
|
Datasheet |
APX-NG000XAPD | TO-46-3 Lens Top Metal Can | Bulk | Active | 1550nm | Infrared (NIR) | 950nm ~ 1650nm | Avalanche | 0.95 A/W @ 1550nm, 9.5 A/W @ 1550nm | 400ps | 60 V | 20nA | 0.03mm² | - | -40°C ~ 85°C | - | - | Through Hole |
|
|
APX-NG0004APD400M INGAAS APD SENSOR |
0 |
|
Datasheet |
APX-NG000XAPD | TO-46-3 Lens Top Metal Can | Bulk | Active | 1550nm | Infrared (NIR) | 950nm ~ 1650nm | Avalanche | 0.95 A/W @ 1550nm, 9.5 A/W @ 1550nm | 800ps | 60 V | 80nA | 0.13mm² | - | -40°C ~ 85°C | - | - | Through Hole |
|

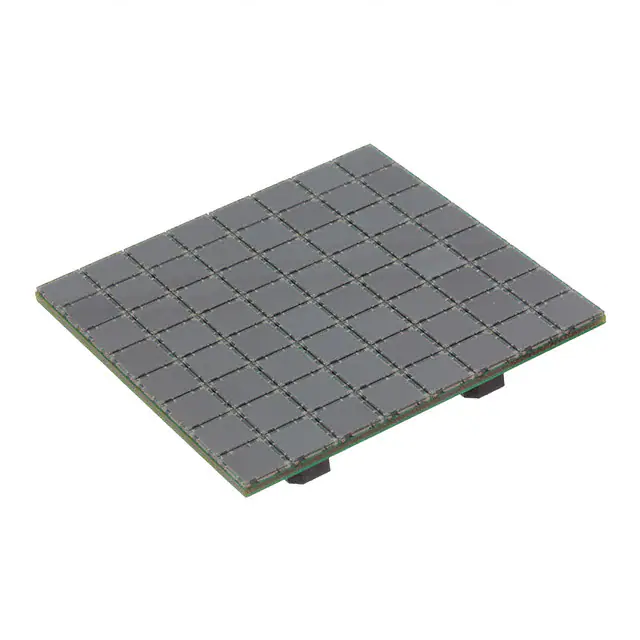

ARRAYC-60035-64P-PCBSENSOR PHOTODIODE 420NM 84CLCC |
1 |
|
Datasheet |
ArrayC | 84-CLCC Window (J-Lead) | Bulk | Active | 420nm | - | - | - | - | - | - | - | 64mm² | - | - | - | - | Surface Mount |
|
|
PD12-21B/L458/TR8SENSOR PHOTODIODE 940NM 2SMD |
0 |
|
Datasheet |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | 940nm | - | 730nm ~ 1050nm | PIN | - | - | 32 V | 5nA | - | - | -25°C ~ 85°C | - | - | Surface Mount, Right Angle |
|
|
EAPDSV3020A2SENSOR PHOTODIODE 940NM 2SMD |
0 |
|
Datasheet |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | 940nm | - | 730nm ~ 1100nm | PIN | - | 6ns | 32 V | 10nA | - | 130° | -25°C ~ 85°C | - | - | Surface Mount, Right Angle |
|
|
QSD2030FA4R0SENSOR PHOTODIODE 880NM RADIAL |
0 |
|
Datasheet |
- | Radial, 5mm Dia (T 1 3/4) | Tape & Reel (TR) | Obsolete | 880nm | - | 700nm ~ 1100nm | PIN | - | 5ns | 50 V | 10nA | 1.55mm² | 40° | -40°C ~ 100°C | - | - | Through Hole |
|
|
IR908-7CSENSOR PHOTODIODE |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
