Photodiodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MICROFC-10020-SMT-TR1SENSOR PHOTODIODE 420NM 4SMD |
7 |
|
Datasheet |
C-SERIES SIPM | 4-SMD, No Lead | Strip | Active | 420nm | Blue | 300nm ~ 950nm | Avalanche | - | 300ps | 24.7 V | 5nA | 1mm² | - | -40°C ~ 85°C | - | - | Surface Mount |
|
GUVB-T21GD-USENSOR PHOTODIODE 220-320NM TO39 |
12 |
|
- |
- | TO-39-3 Metal Can | Tray | Active | - | Ultraviolet (UV) | 220nm ~ 320nm | Schottky | 0.13 A/W @ 300nm | - | 3 V | 90nA (Max) | 6.89mm² | - | -30°C ~ 85°C | - | - | Through Hole |
|
MT03-041SENSOR PHOTODIODE 950NM TO39-3 |
8 |
|
Datasheet |
- | TO-39-3 Lens Top Metal Can | Bulk | Active | 950nm, 1650nm | - | 250nm ~ 1100nm, 600nm ~ 1750nm | - | 0.40 A/W @ 633nm, 0.6 A/W @ 1300nm | 100ns | 50 V | 500nA (Max) | - | - | -40°C ~ 100°C | - | - | Through Hole |
|
KPDA050P-H8-BSENSOR PHOTODIODE 780NM TO206AA |
15 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | Bag | Active | 780nm | - | 400nm ~ 1000nm | Avalanche | 0.45 A/W @ 850nm | - | 200 V | 20pA | 0.5mm Dia | - | -40°C ~ 85°C | - | - | Through Hole |
|
MICROFJ-40035-TSV-TR1SENSOR PHOTODIODE 420NM 14WBGA |
2 |
|
Datasheet |
J-SERIES SIPM | 14-WBGA | Strip | Active | 420nm | - | 200nm ~ 900nm | Avalanche | - | 110ps | 24.7 V | 3µA | 15.45mm² | - | -40°C ~ 85°C | - | - | Surface Mount |
|
GUVB-T11GM-LASENSOR PHOTODIODE UV MODULE |
3 |
|
- |
- | Module | Bulk | Active | - | Ultraviolet (UV) | 220nm ~ 320nm | - | - | 10ms | - | - | - | - | -30°C ~ 85°C | - | - | Chassis Mount |
|
|
GUVC-T10GM-LASENSOR PHOTODIODE UV MODULE |
2 |
|
- |
- | Module | Bulk | Active | - | Ultraviolet (UV) | 220nm ~ 280nm | - | - | 10ms | - | - | - | - | -30°C ~ 85°C | - | - | Chassis Mount |
|
KPDE150-H45-BSENSOR PHOTODIODE TO18-4 MET CAN |
7 |
|
Datasheet |
- | TO-18-4 Metal Can | Bag | Active | - | - | 900nm ~ 1700nm | - | 0.9 A/W @ 1310nm, 1 A/W @ 1550nm | - | 2 V | 1nA | 1.5mm Dia | - | -20°C ~ 70°C | - | - | Through Hole |
|

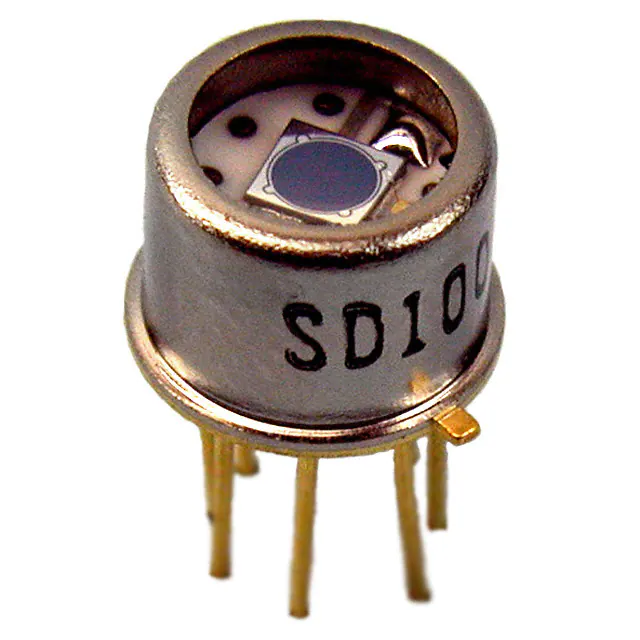

100-41-21-231SENSOR PHOTODIODE TO5 |
23 |
|
Datasheet |
- | TO-5 | Bulk | Active | - | Red | 250nm ~ 1100nm | PIN | 0.64 A/W @ 950nm | - | - | 10nA (Max) | 5mm² | - | -65°C ~ 125°C | - | - | Through Hole |
|
UVG100SENSOR PHOTODIODE 254NM 10MM |
7 |
|
Datasheet |
UVG | - | Bulk | Active | 254nm | - | - | - | 0.09 A/W @ 254nm | 10µs | 10 V | - | 100mm² | - | -20°C ~ 80°C | - | - | Through Hole |
|
ARRAYJ-60035-4P-BGASENSOR PHOTODIODE 420NM 9EBGA |
4 |
|
Datasheet |
J-SERIES SIPM | 9-EBGA | Bulk | Active | 420nm | - | - | - | - | - | - | - | 100mm² | - | - | - | - | Surface Mount |
|
|
C30659-1550-R2AHSENSOR PHOTODIODE 1550NM TO8 |
2 |
|
Datasheet |
C30659 | TO-8 Style, 12 Leads | Box | Active | 1550nm | - | 1100nm ~ 1700nm | Avalanche | 300 KV/W @ 1300nm, 340 KV/W @ 1550nm | 7ns | - | - | 0.03mm² | - | -40°C ~ 70°C | - | - | Through Hole |
|
ARRAYC-30035-144P-PCBSENSOR PHOTODIODE 420NM 84CLCC |
5 |
|
Datasheet |
C-SERIES SIPM | 84-CLCC Window (J-Lead) | Bulk | Active | 420nm | - | - | - | - | - | - | - | 9mm² | - | - | - | - | Surface Mount |
|
SUF083J001SENSOR PHOTODIODE 925NM |
13 |
|
Datasheet |
- | - | Bulk | Active | 925nm | - | 400nm ~ 1100nm | - | - | - | - | - | - | 90° | -30°C ~ 80°C | - | - | User Defined |
|
|
GUVCL-T10GDSENSOR PHOTODIODE 230-320NM TO46 |
46 |
|
- |
- | TO-46-2 Metal Can | Tray | Active | - | Ultraviolet (UV) | 230nm ~ 320nm | Schottky | 0.1 A/W @ 280nm | - | 3 V | 1nA (Max) | 0.08mm² | - | -30°C ~ 85°C | - | - | Through Hole |
|
|
GUVC-T10GD-L185SENSOR PHOTODIODE UV TO46-2 |
99 |
|
- |
- | TO-46-2 Metal Can | Tray | Active | - | Ultraviolet (UV) | - | Schottky | - | - | 2 V | 20nA (Max) | 1.54mm² | - | -30°C ~ 85°C | - | - | Through Hole |
|
MTAPD-07-007SENSOR PHOTODIODE 800NM 6LCC |
10 |
|
Datasheet |
- | 6-LCC | Strip | Active | 800nm | - | 400nm ~ 1100nm | Avalanche | 50 A/W @ 800nm | 300ps | 160 V | 500pA | 0.2mm² | - | -20°C ~ 85°C | - | - | Surface Mount |
|
C30737LH-230-80ASENSOR PHOTODIODE 800NM 6CLCC |
18 |
|
Datasheet |
C30737 | 6-CLCC | Bulk | Active | 800nm | - | 800nm ~ 1000nm | Avalanche | 50 A/W @ 800nm | 200ps | 210 V | 2.5nA | 230µm Dia | - | -20°C ~ 60°C | - | - | Surface Mount |
|
GUVB-S11SM-LASENSOR PHOTODIODE UV MODULE |
3 |
|
- |
- | Module | Bulk | Active | - | Ultraviolet (UV) | 240nm ~ 320nm | - | - | 10ms | - | - | - | - | -30°C ~ 85°C | - | - | Chassis Mount |
|
ODA-6W-500MSENSOR PHOTODIODE 940NM TO39 |
8 |
|
Datasheet |
Hybrid | - | Tray | Active | 940nm | Infrared (NIR)/Red | 400nm ~ 1100nm | - | - | - | - | - | 6mm² | - | -25°C ~ 100°C | - | - | Through Hole |
Photodiodes Electronic Components
Explore Photodiodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
