Navigation Switches, Joystick
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Actuator Type | Switch Function | Functions, Extra | Output | Voltage - Supply | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Contact Material | Contact Finish | Resistance | Mounting Type | Termination Style | Operating Temperature | Panel Cutout Dimensions | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSA-1-10-BK-1-4SWITCH THUMBWHEEL HALL EFFECT 5V |
18 |
|
Datasheet |
MSA | Bulk | Active | Thumbwheel, 1 - Axis | Thumbwheel | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | 5 V | - | - | - | Panel Mount | Wire Leads with Connector | -40°C ~ 85°C | Rectangular - 10.41mm x 22.61mm | IP67 - Dust Tight, Waterproof | - |
|
NZAA1477SWITCH JOYSTICK BAT DGTL 2A 125V |
0 |
|
Datasheet |
NZ | Bulk | Active | Joystick, 2 - Axis | Bat | 4-Way Directional | - | Digital (Mechanical Switch) | - | 2A (AC) | 125 V | - | Silver Alloy | Gold | - | Panel Mount | Cable with Connector | -25°C ~ 50°C | Circular - 12.00mm Dia | IP67 - Dust Tight, Waterproof | Half Boot |
|
|
TS1-1-S-R-2-GYSWITCH THUMBSTICK PUSHBUTTON 5V |
24 |
|
Datasheet |
TS1 | Bulk | Active | Thumbstick, 2 - Axis | Pushbutton | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | 5 V | - | - | - | Panel Mount | Wire Leads with Connector | -40°C ~ 85°C | Circular - 25.15mm | IP67 - Dust Tight, Waterproof | - |
|
|
TS1-4-S-A-2-BKSWITCH JOYSTICK CASTLE 50MA 12V |
23 |
|
- |
TS | Bag | Active | Joystick, 2 - Axis | Castle | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | 50mA (DC) | - | 12 V | - | - | - | Panel Mount | Wire Leads with Connector | -40°C ~ 85°C | - | IP67 - Dust Tight, Waterproof | - |
|
|
TS1-4-G-D-2-BKSWITCH THUMBSTICK CASTLE HALL 5V |
14 |
|
Datasheet |
TS1 | Bulk | Active | Thumbstick, 2 - Axis | Castle | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | 5 V | - | - | - | Panel Mount | Wire Leads with Connector | -40°C ~ 85°C | Circular - 25.15mm | IP67 - Dust Tight, Waterproof | - |
|
|
HCK-1-1-BKSWITCH JOYSTICK KNOB HALL 5V |
25 |
|
Datasheet |
HCK | Bulk | Active | Joystick, 1 - Axis | Knob | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | 5 V | - | - | - | Panel Mount | Wire Leads with Connector | -30°C ~ 85°C | Rectangular - 25.65mm x 31.75mm | IP67 - Dust Tight, Waterproof | - |
|

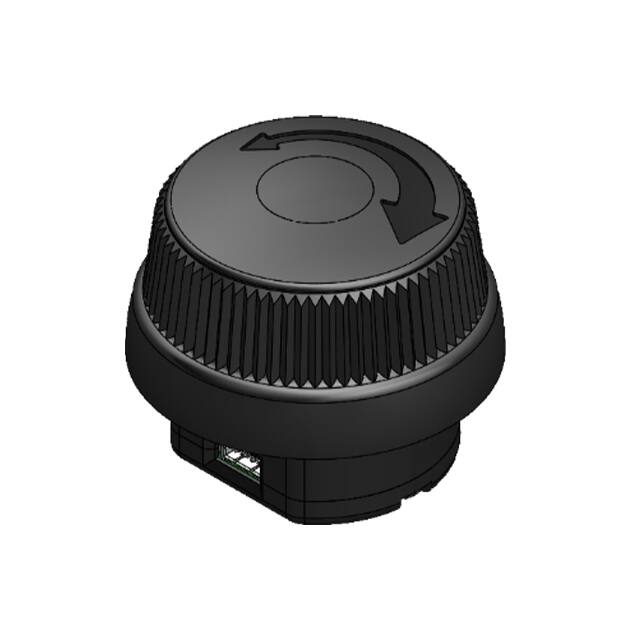

HCK-1-2-BKSWITCH NAVIGATION KNOB HALL |
22 |
|
Datasheet |
HCK | Box | Active | Navigation Switch, 1 - Axis | Knob | 2-Way Rotational | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | - | Wire Leads with Connector | -23°C ~ 85°C | - | IP67 - Dust Tight, Waterproof | - |
|
|
SAT-2-4-BKSWITCH THUMBWHEEL PADDLE HALL 5V |
22 |
|
Datasheet |
SAT | Bulk | Active | Thumbwheel, 1 - Axis | Paddle | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | 5 V | - | - | - | Panel Mount | Wire Leads with Connector | -40°C ~ 85°C | Rectangular - 16.26mm x 22.86mm | IP67 - Dust Tight, Waterproof | - |
|
SAT-1-1-BKSWITCH THUMBWHEEL HALL EFFECT |
18 |
|
Datasheet |
SAT | Box | Active | Thumbwheel, 1 - Axis | Thumbwheel | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads with Connector | -40°C ~ 85°C | - | IP67 - Dust Tight, Waterproof | - |
|
SAT-2-1-BKSWITCH JOYSTICK PADDLE HALL EFF |
14 |
|
Datasheet |
SAT | Box | Active | Joystick, 1 - Axis | Paddle | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads with Connector | -40°C ~ 85°C | - | IP67 - Dust Tight, Waterproof | - |
|
|
SAT-1-2-BKSWITCH THUMBWHEEL HALL EFFECT 5V |
11 |
|
Datasheet |
SAT | Bulk | Active | Thumbwheel, 1 - Axis | Thumbwheel | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | 5 V | - | - | - | Panel Mount | Wire Leads with Connector | -40°C ~ 85°C | Rectangular - 16.26mm x 22.86mm | IP67 - Dust Tight, Waterproof | - |
|

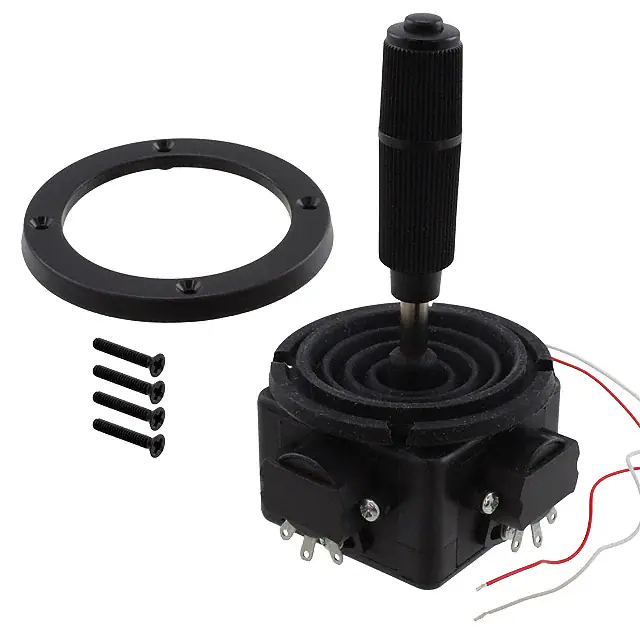

M21L0G1MSWITCH JOYSTICK ANALOG |
0 |
|
Datasheet |
M | Bulk | Obsolete | Joystick, 2 - Axis | Joystick | 4-Way Directional | 1 Pushbutton | Analog (Resistive) | - | - | - | - | - | - | 5 kOhms | Panel Mount | Solder Lug | -25°C ~ 70°C | Circular - 39.70mm Dia | - | - |
|
04J-AS-T11SWITCH NAVIGATION CASTLE 2A 115V |
0 |
|
Datasheet |
04J | Bulk | Active | Navigation Switch, 2 - Axis | Castle | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 2A (AC/DC) | 115 V | 28 V | Nickel | Gold | - | Panel Mount | Solder Lug | -55°C ~ 85°C | - | IP68 - Dust Tight, Waterproof | Gray Actuator |
|

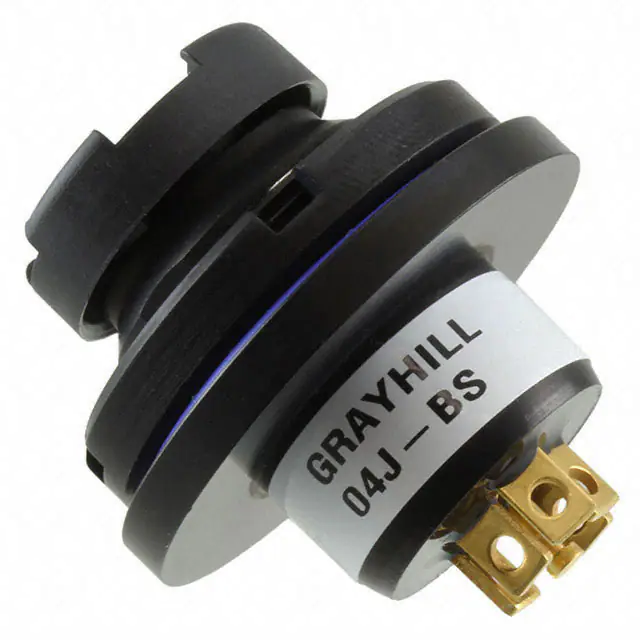

04J-BS-C01SWITCH NAV CONICAL 2A 115V |
0 |
|
Datasheet |
04J | Bulk | Active | Navigation Switch, 2 - Axis | Conical | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 2A (AC/DC) | 115 V | 28 V | Nickel | Gold | - | Panel Mount | Solder Lug | -55°C ~ 85°C | - | IP68 - Dust Tight, Waterproof | - |
|
|
TS1-4-S-M-2-BKSWITCH THUMBSTICK CASTLE HALL 5V |
20 |
|
Datasheet |
TS1 | Bulk | Active | Thumbstick, 2 - Axis | Castle | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | 5 V | - | - | - | Panel Mount | Wire Leads with Connector | -40°C ~ 85°C | Circular - 25.00mm | IP67 - Dust Tight, Waterproof | - |
|
|
TS1-4-G-M-2-BKSWITCH THUMBSTICK CASTLE HALL 5V |
15 |
|
Datasheet |
TS1 | Bulk | Active | Thumbstick, 2 - Axis | Castle | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | 5 V | - | - | - | Panel Mount | Wire Leads with Connector | -40°C ~ 85°C | Circular - 25.00mm | IP67 - Dust Tight, Waterproof | - |
|
|
TS1-3-S-M-2-BKSWITCH THUMBSTICK PUSHBUTTON 5V |
15 |
|
Datasheet |
TS1 | Bulk | Active | Thumbstick, 2 - Axis | Pushbutton | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | 5 V | - | - | - | Panel Mount | Wire Leads with Connector | -40°C ~ 85°C | Circular - 25.00mm | IP67 - Dust Tight, Waterproof | - |
|
|
04J-AP-C12SWITCH NAV CONICAL 10MA 5V |
0 |
|
Datasheet |
04J | Bulk | Active | Navigation Switch, 2 - Axis | Conical | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 10mA (DC) | - | 5 V | Nickel | Gold | - | Panel Mount | PC Pin | -55°C ~ 85°C | - | IP68 - Dust Tight, Waterproof | Gray Actuator |
|
67B-J4-3C-U-04CSWITCH JOYSTICK FLATTED HALL |
0 |
|
Datasheet |
67B | Bulk | Active | Joystick, 2 - Axis | Flatted (4.06mm Dia) | 4-Way Directional | - | Digital (Hall Effect Over I2C Interface) | 3.3VDC | - | - | - | - | - | - | Panel Mount | Cable with Connector | -40°C ~ 85°C | - | - | - |
|
67C08-8-M-PSWITCH JOYSTICK FLATTED 10MA 5V |
0 |
|
Datasheet |
67C | Bulk | Active | Joystick, 3 - Axis | Flatted (6.35mm Dia) | 360° Rotational, 8-Way Directional, Center Select | - | Analog (Hall Effect) | 5VDC | 10mA (DC) | - | 5 V | - | - | - | Panel Mount | PC Pin | -40°C ~ 85°C | Circular - 17.25mm Dia | - | - |
