Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

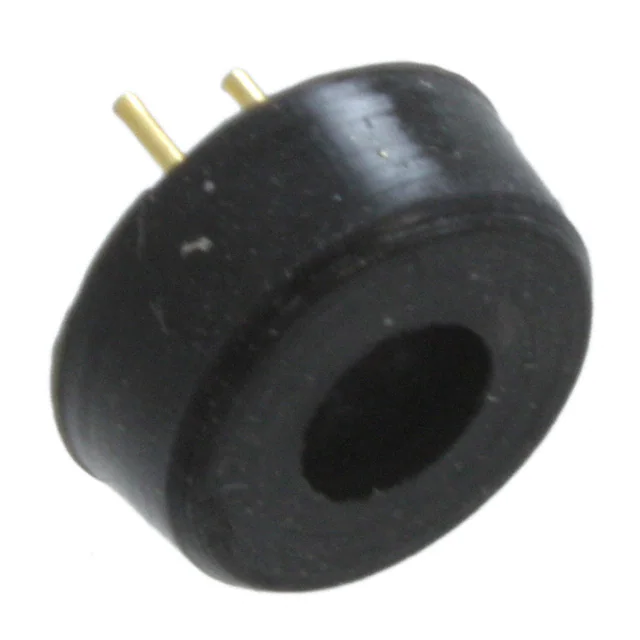

POW-2242P-C3310-B-RMIC COND ANLG OMNI -42DB 0.236"D |
655 |
|
Datasheet |
POW | Bulk | Active | Electret Condenser | Analog | Omnidirectional | - | -42dB ±3dB | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP57 - Dust Protected, Waterproof | PC Pins | 0.236" Dia (6.00mm) | 0.094" (2.40mm) | Circular | - | - |
|
IMP23ABSUTRMIC MEMS ANALOG OMNI -38DB |
1,088 |
|
Datasheet |
- | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 35 Hz ~ 15 kHz | -38db ±1dB | 64dB | - | 2.75 V | 1.52 V ~ 3.6 V | 150 µA | Bottom | - | Solder Pads | 0.130" L x 0.097" W (3.31mm x 2.46mm) | 0.039" (0.98mm) | Rectangle | - | - |
|
POM-3535L-3-LW100-RMIC COND ANLG OMNI -35DB 0.236"D |
2,434 |
|
Datasheet |
POM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -35dB ±4dB | 68dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Wire Leads | 0.236" Dia (6.00mm) | 0.157" (4.00mm) | Circular | - | - |
|
SPH0645LM4H-1SILICON MICROPHONE |
3,343 |
|
Datasheet |
SPH | Bulk | Active | MEMS (Silicon) | Digital, I2S | Omnidirectional | 60 Hz ~ 20 kHz | -26dB ±1dB @ 94dB SPL | 65dB | - | 1.8 V | 1.62 V ~ 3.6 V | 600 µA | Bottom | - | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.043" (1.08mm) | Rectangular | - | - |
|
AUM-4537L-HD-RMIC ANALOG UNI -37DB 0.394"DIA |
1,694 |
|
Datasheet |
AUM | Tray | Active | - | Analog | Unidirectional | 20 Hz ~ 20 kHz | -37dB ±3dB | 69dB | 2.2 kOhms | 1.5 V | 1 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.394" Dia (10.00mm) | 0.177" (4.50mm) | Circular | - | - |
|
AMM-2742-T-WP-RMIC MEMS ANALOG OMNI -42DB |
4,903 |
|
Datasheet |
- | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -42dB ±1dB | 59dB | 300 Ohms | 2 V | 1.6 V ~ 3.6 V | 200 µA | Top | IP57 - Dust Protected, Waterproof | Solder Pads | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.039" (1.00mm) | Rectangular | - | - |
|
CMI-4537-SN69MIC COND ANLG UNI -37DB 0.382"D |
816 |
|
Datasheet |
- | Box | Active | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 12 kHz | -37dB ±3dB @ 94dB SPL | 69dB | 2.34 kOhms | - | 1.5 V ~ 9 V | 400 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.177" (4.50mm) | Circular | - | - |
|
ICS-40638MIC MEMS ANALOG OMNI -43DB |
21,778 |
|
Datasheet |
- | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 35 Hz ~ 20 kHz | -43dB ±1dB @ 94dB SPL | 63dB | 355 Ohms | - | 1.52 V ~ 3.63 V | 170 µA | Bottom | - | Surface Mount | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.039" (0.98mm) | Rectangular | - | - |
|
|
TUM-1842L-HDANALOG MICROPHONE UNI 4MM -42DB |
336 |
|
Datasheet |
HD | Bulk | Active | Electret Condenser | - | Unidirectional | 20 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 59dB | - | 2 V | 1.5 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.157" Dia (4.00mm) | 0.085" (2.16mm) | Round | - | - |
|
DOM-3027L-HD-RMIC COND ANLG OMNI -27DB 0.315"D |
807 |
|
Datasheet |
DOM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -27dB ±3dB | 77dB | - | 3 V | - | 500 µA | Top | - | Solder Pads | 0.315" Dia (8.00mm) | 0.126" (3.20mm) | Circular | - | - |
|
TOM-1537L-HD-LW100-B-RMIC COND ANLG OMNI -37DB 0.185"D |
220 |
|
Datasheet |
TOM | Box | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -37dB ±3dB | 68dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Wire Leads | 0.185" Dia (4.70mm) | 0.067" (1.70mm) | Circular | - | - |
|
|
CMM-3424DT-26165-TRMIC, 3.4X2.4MM MEMS, IPX7 |
4,979 |
|
Datasheet |
CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±1dB @ 94dB SPL | 65dB | - | - | 1.6 V ~ 3.6 V | 600 µA | Top | IPX7 | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.049" (1.25mm) | Rectangular | - | - |
|
TOM-1537L-HD-RMIC COND ANLG OMNI -37DB 0.157"D |
363 |
|
Datasheet |
TOM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -37dB ±3dB | 68dB | - | 3 V | - | 500 µA | Top | - | Solder Pads | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Circular | - | - |
|
POM-2730L-HD-RMIC COND ANLG OMNI -30DB 0.236"D |
349 |
|
Datasheet |
POM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -30dB ±3dB | 74dB | - | 3 V | - | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
|

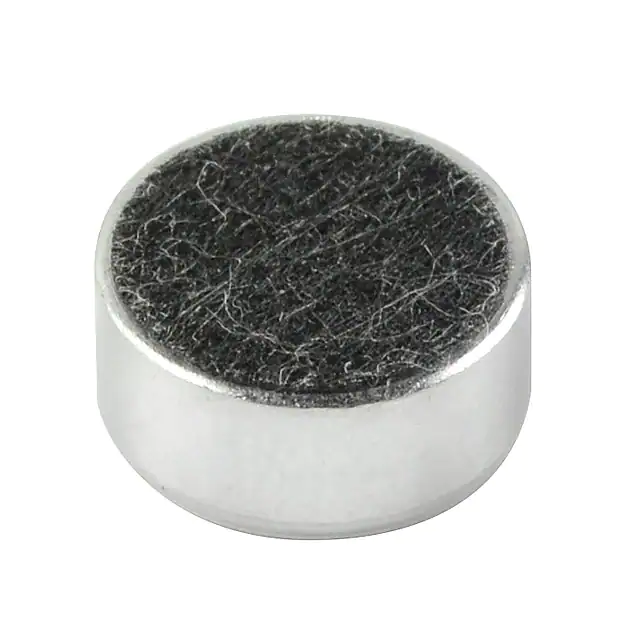

CMC-9745-37T3MIC COND ANLG UNI -37DB 0.382"D |
1,215 |
|
Datasheet |
CMC | Box | Active | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 12 kHz | -37dB ±3dB @ 94dB SPL | 72dB | 2 kOhms | 1.5 V | 1.5 V ~ 9 V | 400 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|
POW-1644L-B-LW100-RMIC COND ANLG OMNI -44DB 0.236"D |
504 |
|
Datasheet |
POW | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -44dB ±3dB | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP57 - Dust Protected, Waterproof | Wire Leads | 0.236" Dia (6.00mm) | 0.106" (2.70mm) | Circular | - | - |
|
CMC-97452-L100MIC COND ANLG UNI -37DB 0.382"D |
1,039 |
|
Datasheet |
CMC | Box | Active | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 12 kHz | -37dB ±3dB @ 94dB SPL | 69dB | 2.2 kOhms | 1.5 V | 1.5 V ~ 9 V | 400 µA | Top | - | Wire Leads | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|
|
POM-2739L-HD3-LW100-RMIC ANLG OMNI -39DB 0.236"DIA |
1,577 |
|
Datasheet |
POM | Tray | Active | - | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -39dB ± 3dB @ 94dB SPL | 73dB | 2.2 kOhms | 3 V | 1 V ~ 10 V | 500 µA | Top | - | Wire Leads | 0.236" Dia (6.00mm) | 0.106" (2.70mm) | Circular | - | - |
|
|
PUM-2745L-HD-RMIC ANALOG UNI -45DB 0.236"DIA |
394 |
|
Datasheet |
PUM | Tray | Active | Electret Condenser | Analog | Unidirectional | 20 Hz ~ 20 kHz | -45dB ±3dB | 71dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 110 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.106" (2.70mm) | Circular | - | - |
|
POM-3535L-2-RMIC COND ANLG OMNI -35DB 0.236"D |
1,367 |
|
Datasheet |
POM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 20 kHz | -35dB ±4dB | 68dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.146" (3.70mm) | Circular | - | - |
