Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SOM-1547PMIC COND ANLG OMNI -47DB 0.236"D |
0 |
|
- |
- | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | - | -47dB ±3dB | 60dB | 2.2 kOhms | - | 2 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.067" (1.70mm) | Circular | - | - |
|
|
PNM-3546LMIC COND ANLG NC -46DB 0.236"DIA |
0 |
|
- |
PNM | Bulk | Obsolete | Electret Condenser | Analog | Noise Cancelling | 50 Hz ~ 16 kHz | -46dB ±4dB | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.146" (3.70mm) | Circular | - | - |
|
|
CUM-4537LMIC COND ANLG UNI -37DB 0.382"D |
0 |
|
- |
CU | Bulk | Obsolete | Electret Condenser | Analog | Unidirectional | - | -37dB ±3dB | 55dB | 1.8 kOhms | 1.5 V | 1.5 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|
SPM0404LE5H-QBMIC MEMS ANALOG OMNI -38DB |
0 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 62dB | 300 Ohms | - | 1.5 V ~ 3.6 V | 250 µA | Bottom | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|
SPM0410LR5H-QBMIC MEMS ANALOG OMNI -38DB |
0 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 62dB | 400 Ohms | - | 1.5 V ~ 3.6 V | 250 µA | Bottom | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.053" (1.35mm) | Rectangular | - | - |
|
INMP405ACEZ-R7MIC MEMS ANALOG OMNI -38DB |
0 |
|
Datasheet |
INMP405 | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 200 Hz ~ 15 kHz | -38dB ±3dB @ 94dB SPL | 62dB | 2 kOhms | - | 1.5 V ~ 3.3 V | 250 µA | Bottom | - | Solder Pads | 0.132" L x 0.098" W (3.35mm x 2.50mm) | 0.039" (0.98mm) | Rectangular | - | - |
|
|
INMP405ACEZ-R0MIC MEMS ANALOG OMNI -38DB |
0 |
|
Datasheet |
INMP405 | Cut Tape (CT) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 200 Hz ~ 15 kHz | -38dB ±3dB @ 94dB SPL | 62dB | 200 Ohms | - | 1.5 V ~ 3.3 V | 250 µA | Bottom | - | Solder Pads | 0.132" L x 0.098" W (3.35mm x 2.50mm) | 0.039" (0.98mm) | Rectangular | - | - |
|

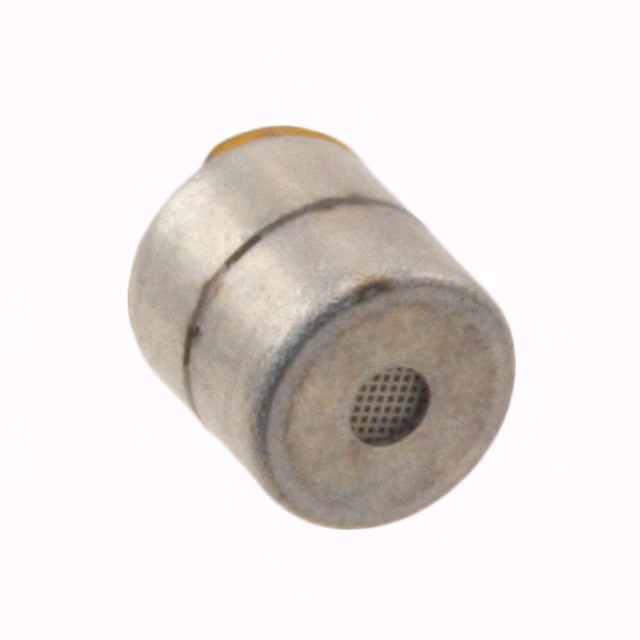

DFG-30852-000MIC COND ANLG UNI -69DB 0.101"D |
0 |
|
Datasheet |
DFG | Tray | Obsolete | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 5 kHz | -69dB ±3dB @ 74dB SPL | - | 1.7 kOhms | - | 1.3 V ~ 3 V | 50 µA | Bottom, Top | - | Solder Pads | 0.101" Dia (2.57mm) | 0.108" (2.74mm) | Circular | - | - |
|
MP34DB01MIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Datasheet |
- | Tray | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 20 kHz | -26dB ±3dB @ 94dB SPL | 62.6dB | - | 1.8 V | 1.64 V ~ 3.6 V | 650 µA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
INMP421BCEZ-R7MIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Datasheet |
INMP421 | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 15 kHz | -26dB ±3dB @ 94dB SPL | 61dB | - | - | 1.62 V ~ 3.63 V | 650 µA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
INMP504ACEZ-R7MIC MEMS ANALOG OMNI -38DB |
0 |
|
Datasheet |
INMP504 | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -38dB ±3dB @ 94dB SPL | 65dB | 200 Ohms | - | 1.6 V ~ 3.3 V | 225 µA | Bottom | - | Solder Pads | 0.132" L x 0.098" W (3.35mm x 2.50mm) | 0.039" (0.98mm) | Rectangular | - | - |
|
MP34DT01MIC MEMS DIGITAL PDM OMNI -26DB |
0 |
|
Datasheet |
- | Tray | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 63dB | - | 1.8 V | 1.64 V ~ 3.6 V | 600 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
SPA2410LR5H-BMIC MEMS ANALOG OMNI -38DB |
0 |
|
Datasheet |
SiSonic™ SP | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 15 kHz | -38dB ±3dB @ 94dB SPL | 63dB | 400 Ohms | - | 1.5 V ~ 3.6 V | 160 µA | Bottom | - | Solder Pads | 0.132" L x 0.098" W (3.35mm x 2.50mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
|
SPQ2410HR5H-PDMIC MEMS ANALOG OMNI -42DB |
0 |
|
- |
SiSonic™ SP | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 56dB | 315 Ohms | - | 1.5 V ~ 3.6 V | 250 µA | Top | - | Solder Pads | 0.148" L x 0.088" W (3.76mm x 2.24mm) | 0.047" (1.20mm) | Rectangular | - | - |
|

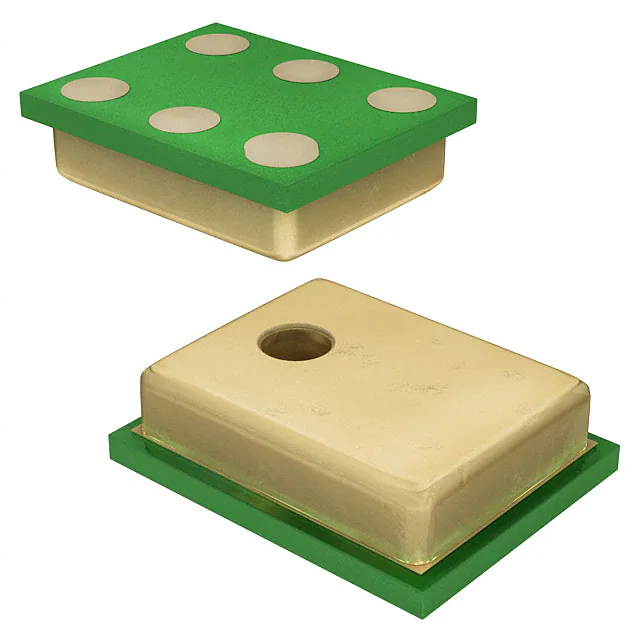

SPM1423HM4H-BMIC MEMS DIGITAL PDM OMNI -22DB |
0 |
|
Datasheet |
SiSonic™ SPM | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -22dB ±3dB @ 94dB SPL | 61.5dB | - | - | 1.6 V ~ 3.6 V | 600 µA | Top | - | Solder Pads | 0.186" L x 0.148" W (4.72mm x 3.76mm) | 0.055" (1.40mm) | Rectangular | - | - |
|
EM-6027SMIC COND ANLG OMNI -43DB 0.157"D |
0 |
|
Datasheet |
EM | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 15 kHz | -43dB ±5dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | - | 500 µA | Top | - | Solder Pads | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Circular | - | - |
|
|
BT-21751-000MICROPHONE COND ANALOG -61.5DB |
0 |
|
- |
BT | Bulk | Obsolete | Electret Condenser | Analog | - | 100 Hz ~ 4.2 kHz | -61.5dB ±1.5dB @ 74dB SPL | - | 3.5 kOhms | 1.3 V | 0.9 V ~ 10 V | 40 µA | Side | - | Solder Pads | 0.310" L x 0.218" W (7.87mm x 5.54mm) | 0.090" (2.29mm) | Rectangular | - | - |
|
|
BT-21834-000MICROPHONE COND ANALOG -57DB |
0 |
|
- |
BT | Bulk | Obsolete | Electret Condenser | Analog | - | 100 Hz ~ 10 kHz | -57dB ±3dB | - | 3.5 kOhms | 1.3 V | - | 50 µA | Top | - | Solder Pads | 0.310" L x 0.218" W (7.87mm x 5.54mm) | 0.090" (2.29mm) | Rectangular | - | - |
|
|
BU-30179-000MIC PIEZO |
0 |
|
- |
BU | Bulk | Obsolete | Piezo | - | - | - | - | - | - | 1.3 V | - | - | - | - | - | - | - | - | - | - |
|
EA-21842-000MIC COND ANALOG OMNI -59DB |
0 |
|
Datasheet |
EA | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 4.8 kHz | -59dB ±3dB @ 74dB SPL | - | 3.5 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
