Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3SM121MZT1UAANALOG MIC/TOP PORT/SEN -38DB |
5,788 |
|
Datasheet |
3S MEMS | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±1dB @ 94dB SPL | 66dB | 200 Ohms | - | - | 80 µA | Top | - | Surface Mount | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
|
TM141059Uni (Cardioid) Microphone |
124 |
|
Datasheet |
- | Tray | Active | Electret Condenser | Analog | Cardioid | 50 Hz ~ 10 kHz | -47dB ±3dB | 65dB | 1 kOhms | 4.5 V | 1 V ~ 10 V | 500 µA | Bottom | - | Solder Pads | 0.382" Dia (9.70mm) | 0.197" (5.00mm) | Circular | - | - |
|
|
OWMU-1465TA-34-CC101MIC COND ANLG UNI -34DB 0.551" D |
942 |
|
Datasheet |
- | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 20 kHz | -34dB ±3dB @ 94dB SPL | 74dB | 2.2 kOhms | 2 V | 1 V ~ 10 V | 450 µA | Top | - | Solder Pads | 0.551" Dia (14.00mm) | 0.264" (6.70mm) | Circular | - | - |
|
UB1662MIC COND UNI -46DB 0.634" |
1,250 |
|
Datasheet |
- | Bulk | Active | Electret Condenser | - | Unidirectional | 10 Hz ~ 10 MHz | -46dB ±3dB @ 120dB SPL | 66dB | - | - | 1 V ~ 10 V | 500 µA | Top | - | - | 0.634" (16.10mm) | 0.244" (6.20mm) | Circular | - | - |
|
CMC-9745-37L100MIC COND ANLG UNI -37DB 0.382"D |
0 |
|
Datasheet |
CMC | Bulk | Active | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 12 kHz | -37dB ±3dB @ 94dB SPL | 72dB | 2 kOhms | 1.5 V | 1.5 V ~ 9 V | 400 µA | Top | - | Wire Leads | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|
CMC-6036-40L100MIC COND ANLG OMNI -40DB 0.236"D |
0 |
|
Datasheet |
CMC | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -40dB ±2dB @ 94dB SPL | 56dB | 2.2 kOhms | 3 V | 3 V ~ 10 V | 500 µA | Top | - | Wire Leads | 0.236" Dia (6.00mm) | 0.150" (3.80mm) | Circular | - | - |
|
CMC-9745-L100MIC COND ANLG UNI -37DB 0.382"D |
0 |
|
Datasheet |
CMC | Bulk | Active | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 12 kHz | -37dB ±3dB @ 94dB SPL | 69dB | 2 kOhms | 1.5 V | 1.5 V ~ 9 V | 400 µA | Top | - | Wire Leads | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|
CMC-4013-SMT-TRMIC COND ANALOG OMNI -42DB |
2,134 |
|
Datasheet |
CMC | Tape & Reel (TR) | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | - | - | - | - | - | - |
|
ICS-40310MIC MEMS ANALOG OMNI -37DB |
75,455 |
|
Datasheet |
ICS-40310 | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 90 Hz ~ 16 kHz | -37dB ±3dB @ 94dB SPL | 64dB | 4.5 kOhms | - | 0.9 V ~ 1.3 V | 25 µA | Bottom | - | Solder Pads | 0.132" L x 0.098" W (3.35mm x 2.50mm) | 0.039" (0.98mm) | Rectangular | - | - |
|
SPQ0410HE5H-PB-7MIC MEMS ANALOG OMNI -42DB |
4,648 |
|
Datasheet |
SiSonic™ | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 59dB | 400 Ohms | - | 1.5 V ~ 3.6 V | 250 µA | Top | - | Solder Pads | 0.148" L x 0.088" W (3.76mm x 2.24mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
VA1200AAMIC PIEZO MEMS ANALOG -43DB |
5,233 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Piezo MEMS | Analog | - | - | -43dB | - | 400 Ohms | 1.8 V | - | 160 µA | - | - | Solder Pads | 0.114" L x 0.108" W (2.90mm x 2.76mm) | 0.035" (0.90mm) | Rectangle | - | - |
|
SPM04C-38/1186MIC PIEZO MEMS ANLG OMNI -38DB |
6,577 |
|
Datasheet |
SPM | Box | Active | Piezo MEMS | Analog | Omnidirectional | 250 Hz ~ 10 kHz | -38dB ±3dB | 60dB | - | - | 1.6 V ~ 3.6 V | 150 mA | Top | IP68 - Dust Tight, Waterproof | Solder Pads | 0.144" L x 0.112" W (3.66mm x 2.85mm) | 0.039" (1.00mm) | Rectangle | - | - |
|

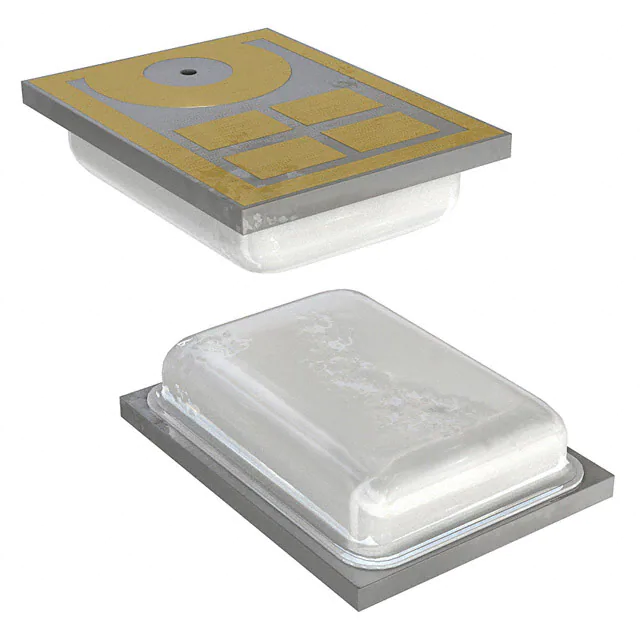

INMP521ACEZ-R7MIC MEMS DIGITAL PDM OMNI -26DB |
1,280 |
|
Datasheet |
INMP521 | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 16 kHz | -26dB ±3dB @ 94dB SPL | 65dB | - | - | 1.62 V ~ 3.63 V | 1.2 mA | Bottom | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.043" (1.10mm) | Rectangular | - | - |
|
BCM4013OSBC-42MIC COND ANLG OMNI -42DB 0.157"D |
15,990 |
|
Datasheet |
BCM | Box | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 12 kHz | -42dB ±3dB | 58dB | 2.2 kOhms | 2 V | 1 V ~ 12 V | 0.5 mA | Top | - | Solder Pads | 0.157" Dia (4.00mm) | 0.051" (1.30mm) | Circular | - | - |
|
HBO0603B-52/1338MIC COND ANLG OMNI -32DB 0.236"D |
130 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 10 kHz | -32dB ±3dB | 74dB | 2.2 kOhms | 3 V | 1 V ~ 10 V | 500 µA | - | - | PC Pins | 0.236" Dia (6.00mm) | - | Circular | - | - |
|
BCM4013OLFC-42-JST-ZHR-2MIC COND ANLG OMNI -42DB 0.157"D |
114 |
|
Datasheet |
BCM | Box | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 16 kHz | -42dB ±3dB | 58dB | - | 2 V | 1 V ~ 10 V | 0.5 mA | Top | - | Wire Leads with Connector | 0.157" Dia (4.00mm) | 0.051" (1.30mm) | Circular | - | - |
|
UB2564MIC COND UNI -42DB 0.984"DIA |
2,282 |
|
Datasheet |
- | Bulk | Active | Electret Condenser | - | Unidirectional | 50 Hz ~ 16 MHz | -42dB ±3dB @ 120dB SPL | 66dB | - | - | 1 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.984" Dia (25.00mm) | 0.260" (6.60mm) | Circular | - | - |
|
HBO0302C-58/1248MIC COND ANLG OMNI -38DB 0.118"D |
9,487 |
|
Datasheet |
HBO | Box | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -38dB ±3dB | 65dB | - | 2 V | 1 V ~ 10 V | 0.5 mA | Top | - | Wire Leads | 0.118" Dia (3.00mm) | 0.059" (1.50mm) | Circular | - | - |
|
BCM9750ULF-47J50MIC COND ANLG OMNI -47DB 0.382"D |
294 |
|
Datasheet |
BCM | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -47dB ±3dB | 58dB | - | 2 V | 1 V ~ 10 V | 0.5 mA | Top | - | Wire Leads with Connector | 0.382" Dia (9.70mm) | 0.205" (5.20mm) | Circular | - | - |
|
|
EK-23132-C36MIC COND ANALOG OMNI -53DB |
447 |
|
Datasheet |
EK | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±2dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Top | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
Microphones Electronic Components
Explore Microphones electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
