Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50.4-HF-32-7-5.5MAGNET 1.260"D X 0.276"THICK RND |
0 |
|
Datasheet |
- | Box | Active | Round | - | Ferrite | Steel, Zinc | - | - | 1.260" Dia x 0.276" H (32.00mm x 7.00mm) | 200°C (TA) |
|
51.2-ND-12-M4-SWMAGNET 0.472"D X 0.276"THICK RND |
0 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 0.472" Dia x 0.276" H (12.00mm x 7.00mm) | 80°C (TA) |
|
ALC8302MAGNET 0.315"D X 0.118"THICK CYL |
0 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Diametric | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N42SH | 12900G, 13200G | 0.315" Dia x 0.118" H (8.00mm x 3.00mm) | 150°C (TA) |
|
YB-074-1MAGNET 0.246"D X 0.167"THICK RND |
0 |
|
Datasheet |
- | Bulk | Active | Round | Diametric | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N38SH | 12200G, 12700G | 0.246" Dia x 0.167" H (6.25mm x 4.25mm) | 150°C (TA) |
|
|
ALC1186MAGNET 0.459"D X 0.339"THICK CYL |
0 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N40UH | 12500G, 13200G | 0.459" Dia x 0.339" H (11.65mm x 8.60mm) | 180°C (TA) |
|
ALC1726MAGNET 0.667"D X 0.102"THICK CYL |
0 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N42H | 12900G, 13200G | 0.667" Dia x 0.102" H (16.95mm x 2.60mm) | 120°C (TA) |
|

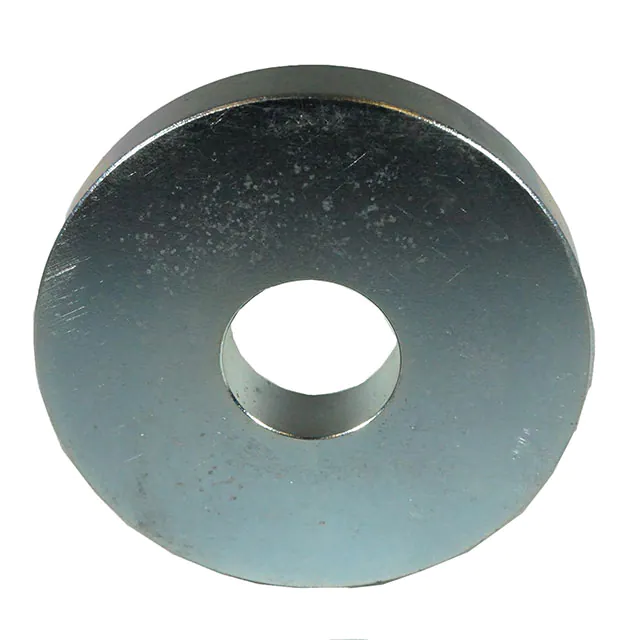

YB-067-1MAGNET 2.972"D X 0.400"THICK RND |
0 |
|
Datasheet |
- | Bulk | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | Epoxy, Zinc | N38SH | 12200G, 12600G | 2.972" Dia x 0.400" H (75.49mm x 10.16mm) | 150°C (TA) |
|
YB-117-1MAGNET 0.591"LX0.591"WX0.315"H |
0 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N45M | 13300G, 13700G | 0.591" L x 0.591" W x 0.315" H (15.00mm x 15.00mm x 8.00mm) | 100°C (TA) |
|
|
UP071508MAGNET 2.756"LX0.591"WX0.315"H |
0 |
|
Datasheet |
- | Box | Obsolete | Rectangular | Axial | - | Plastic | - | 2400G | 2.756" L x 0.591" W x 0.315" H (70.00mm x 15.00mm x 8.00mm) | 85°C |
|
MK-0149MAGNET 0.125"D X 0.063"THICK CYL |
0 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium | Nickel (Ni) | N42 | - | 0.125" Dia x 0.063" H (3.18mm x 1.57mm) | 100°C |
|
501321MAGNET 0.787"D X 0.236"THICK RND |
0 |
|
Datasheet |
RMD | Bag | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.787" Dia x 0.236" H (20.00mm x 6.00mm) | 80°C |
|
|
501331MAGNET 0.787"D X 0.236"THICK RND |
0 |
|
Datasheet |
RMD | Bag | Active | Round | - | Hard Ferrite (HF) | Stainless Steel | - | - | 0.787" Dia x 0.236" H (20.00mm x 6.00mm) | 200°C |
|
501551MAGNET 3.465"D X 0.335"THICK RND |
0 |
|
Datasheet |
RMF | Bag | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 3.465" Dia x 0.335" H (88.00mm x 8.50mm) | 80°C |
|
|
501301MAGNET 0.630"D X 0.177"THICK RND |
0 |
|
Datasheet |
RMD | Bag | Active | Round | - | Hard Ferrite (HF) | Steel, Zinc | - | - | 0.630" Dia x 0.177" H (16.00mm x 4.50mm) | 200°C |
|
|
501311MAGNET 1.969"D X 0.394"THICK RND |
0 |
|
Datasheet |
RMD | Bag | Active | Round | - | Hard Ferrite (HF) | Steel, Zinc | - | - | 1.969" Dia x 0.394" H (50.00mm x 10.00mm) | 200°C |
|
501401MAGNET 0.748"D X 0.295"THICK RND |
0 |
|
Datasheet |
RME | Bag | Active | Round | - | Alnico (AlNiCo) | - | - | - | 0.748" Dia x 0.295" H (19.00mm x 7.50mm) | 280°C |
|
501903MAGNET 0.236"D X 0.394"THICK CYL |
0 |
|
Datasheet |
RML | Bag | Active | Cylindrical | - | Alnico (AlNiCo) | Steel, Zinc | - | - | 0.236" Dia x 0.394" H (6.00mm x 10.00mm) | 450°C |
|
502059MAGNET 0.315"D X 1.260"THICK CYL |
0 |
|
Datasheet |
RML-US | Bag | Active | Cylindrical | - | Alnico (AlNiCo) | - | - | - | 0.315" Dia x 1.260" H (8.00mm x 32.00mm) | 450°C |
|
502801MAGNET 0.512"D X 0.394"THICK CYL |
0 |
|
Datasheet |
RMQ | Bag | Active | Cylindrical | - | Alnico (AlNiCo) | - | - | - | 0.512" Dia x 0.394" H (13.00mm x 10.00mm) | 280°C |
|
|
502047MAGNET 0.157"D X 0.787"THICK CYL |
0 |
|
Datasheet |
RML-US | Bag | Active | Cylindrical | - | Alnico (AlNiCo) | - | - | - | 0.157" Dia x 0.787" H (4.00mm x 20.00mm) | 450°C |
