Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9040MAGNET 0.236"D X 0.098"THICK CYL |
291 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35SH | - | 0.236" Dia x 0.098" H (6.00mm x 2.50mm) | 150°C (TA) |
|
9146MAGNET 0.250"DX0.063"H CYL 1=1PC |
270 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 3309G | 0.250" Dia x 0.063" H (6.35mm x 1.59mm) | 80°C (TA) |
|
|
8021MAGNET 0.375"D X 0.063"THICK CYL |
240 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 1872G (Surface Gauss) | 0.375" Dia x 0.063" H (9.53mm x 1.59mm) | 80°C (TA) |
|
9098DISK N35 NICUNI 3MM(A) X 2.5MM 1 |
124 |
|
- |
- | Bulk | Active | Cylindrical | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N35SH | 11900G | 0.118" Dia x 0.098" H (3.00mm x 2.50mm) | 80°C |
|
M1219-1MAGNET 0.12"DIA X 0.04"THICK CYL |
363 |
|
Datasheet |
- | Bulk | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | N30H | 1500G | 0.12" Dia x 0.04" H (3.0mm x 1.0mm) | 120°C (TA) |
|
9149MAGNET 0.250"DX0.200"H CYL 1=1PC |
161 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 6157G | 0.250" Dia x 0.200" H (6.35mm x 5.00mm) | 80°C (TA) |
|
9041MAGNET 0.315"D X 0.098"THICK CYL |
195 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35SH | - | 0.315" Dia x 0.098" H (8.00mm x 2.50mm) | 150°C (TA) |
|
8698MAGNET 0.125"D X 0.500"THICK CYL |
484 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 5049.23G | 0.125" Dia x 0.500" H (3.18mm x 12.70mm) | 80°C (TA) |
|

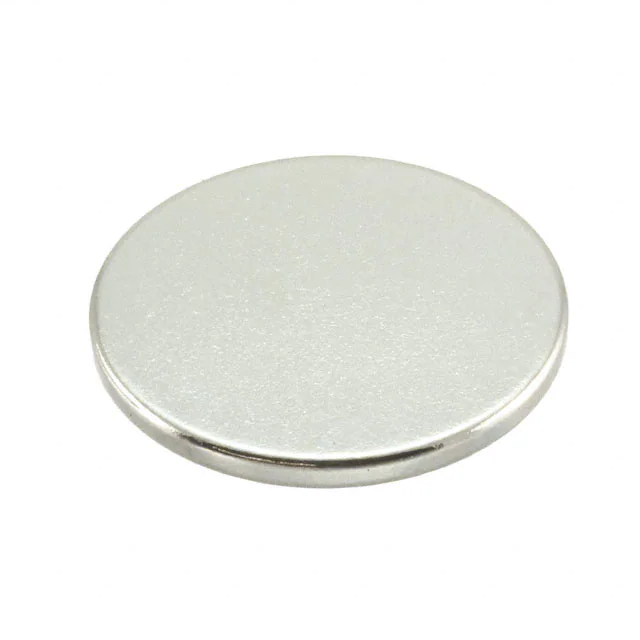

8162MAGNET 0.750"D X 0.063"THICK CYL |
84 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 994G (Surface Gauss) | 0.750" Dia x 0.063" H (19.0mm x 1.59mm) | 80°C (TA) |
|
8028MAGNET 0.250" SQ X 0.250" H SQU |
499 |
|
Datasheet |
- | Box | Active | Square | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3451G (Surface Gauss) | 0.250" Sq x 0.250" H (6.35mm x 6.35mm) | 80°C (TA) |
|
8007MAGNET 0.250"D X 0.100"THICK CYL |
65 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | 3779G | 0.250" Dia x 0.100" H (6.35mm x 2.54mm) | 80°C (TA) |
|
9144MAGNET 0.250"DX0.250"H CYL 1=1PC |
103 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 6619G | 0.250" Dia x 0.250" H (6.35mm x 6.35mm) | 80°C (TA) |
|
8020MAGNET 0.250"D X 0.750"THICK CYL |
111 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 5487G (Surface Gauss) | 0.250" Dia x 0.750" H (6.35mm x 19.0mm) | 80°C (TA) |
|
8164MAGNET 0.375"D X 0.250"THICK CYL |
894 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 4584G (Surface Gauss) | 0.375" Dia x 0.250" H (9.53mm x 6.35mm) | 80°C (TA) |
|
8031MAGNET 1.000"LX0.375"WX0.063"H |
873 |
|
Datasheet |
- | Box | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 1958G (Surface Gauss) | 1.000" L x 0.375" W x 0.063" H (25.4mm x 9.53mm x 1.59mm) | 80°C (TA) |
|
ALNICO500 4X19MMMAGNET 0.157"D X 0.748"THICK CYL |
764 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Alnico 5 (AlNiCo) | - | - | - | 0.157" Dia x 0.748" H (4.00mm x 19.0mm) | 450°C (TA) |
|
8376MAGNET 0.375"D X 0.100"THICK CYL |
120 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N48 | 3191.94G | 0.375" Dia x 0.100" H (9.53mm x 2.54mm) | 80°C (TA) |
|
8909MAGNET 0.250"D X 0.375"THICK CYL |
394 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N40 | 5620.4G | 0.250" Dia x 0.375" H (6.35mm x 9.53mm) | 80°C (TA) |
|

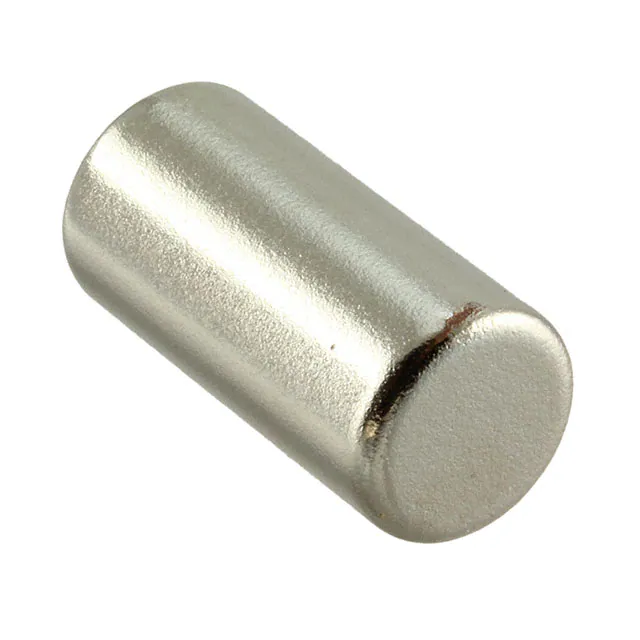

8166MAGNET 0.375"D X 0.750"THICK CYL |
100 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 5551G (Surface Gauss) | 0.375" Dia x 0.750" H (9.53mm x 19.0mm) | 80°C (TA) |
|
9157MAGNET 0.375"D X 0.063"THICK CYL |
37 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 2340G | 0.375" Dia x 0.063" H (9.53mm x 1.59mm) | 80°C (TA) |
