Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G16-A-0188-50-030MAGNET 1.005"D X 0.210"THICK CYL |
192 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 2500G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
G16-A-0750-25-002MAGNET 1.005"D X 0.210"THICK CYL |
192 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Magnalox | - | - | 1370G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0500-85-060MAGNET 1.005"D X 0.210"THICK CYL |
192 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0250-85-064MAGNET 1.005"D X 0.210"THICK CYL |
192 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0500-75-040MAGNET 1.005"D X 0.210"THICK CYL |
191 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|

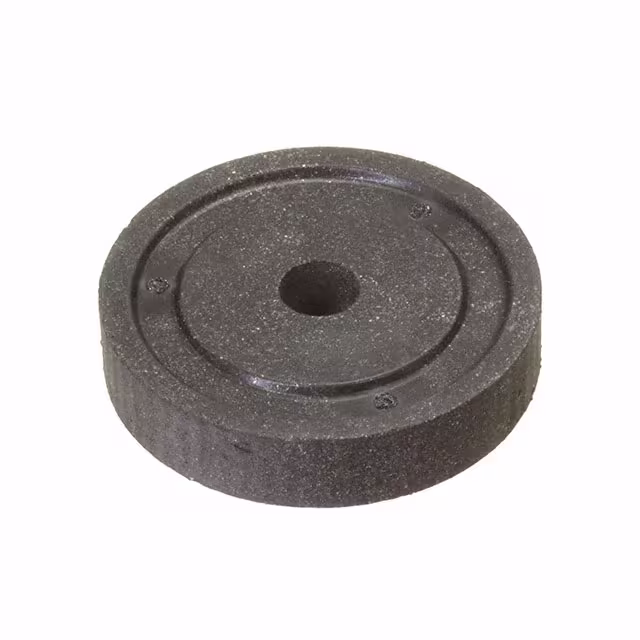

G16-A-0188-85-060MAGNET 1.005"D X 0.210"THICK CYL |
188 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0236-75-036MAGNET 1.005"D X 0.210"THICK CYL |
188 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0375-85-060MAGNET 1.005"D X 0.210"THICK CYL |
184 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0500-50-020MAGNET 1.005"D X 0.210"THICK CYL |
181 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 2500G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0236-85-064MAGNET 1.005"D X 0.210"THICK CYL |
178 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0315-75-032MAGNET 1.005"D X 0.210"THICK CYL |
169 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0157-75-040MAGNET 1.005"D X 0.210"THICK CYL |
159 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
MSM-226MMAGNET 0.236"D X 1.496"THICK CYL |
173 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N30H | 11050G | 0.236" Dia x 1.496" H (6.00mm x 38.00mm) | 85°C (TA) |
|
MSM-228MMAGNET 0.315"D X 1.496"THICK CYL |
135 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N30H | 11900G | 0.315" Dia x 1.496" H (8.00mm x 38.00mm) | 85°C (TA) |
|
102MG15MAGNET 0.311"D X 0.480"THICK CYL |
183 |
|
Datasheet |
MG | Bulk | Not For New Designs | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.311" Dia x 0.480" H (7.90mm x 12.2mm) | 140°C (TA) |
|
NE3712NP35MAGNET 0.375"D X 0.125"THICK RND |
1,410 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.375" Dia x 0.125" H (9.53mm x 3.18mm) | 82.2°C |
|
CA-0036MAGNET 0.800"LX0.250"WX0.250"H |
990 |
|
Datasheet |
- | Box | Active | Rectangular | - | Alnico 5 (AlNiCo) | - | C5 | - | 0.800" L x 0.250" W x 0.250" H (20.32mm x 6.35mm x 6.35mm) | 525°C |
|
|
NE5020NP35MAGNET 0.500"D X 0.200"THICK RND |
480 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.500" Dia x 0.200" H (12.70mm x 5.08mm) | 82.2°C |
|
|
NE3720NP35MAGNET 0.375"D X 0.200"THICK RND |
436 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.375" Dia x 0.200" H (9.53mm x 5.08mm) | 82.2°C |
|
|
NE3725NP35MAGNET 0.375"D X 0.250"THICK CYL |
650 |
|
Datasheet |
Mag-Mate® | Bag | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.375" Dia x 0.250" H (9.53mm x 6.35mm) | 82.2°C |
