Switches (Solid State)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Technology | Polarization | Sensing Range | Test Condition | Voltage - Supply | Current - Supply (Max) | Current - Output (Max) | Output Type | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1155LUBTN-TMAG SWITCH UNIPOLAR 2SIP |
0 |
|
Datasheet |
- | 2-SIP Module | Tape & Reel (TR) | Last Time Buy | Unipolar Switch | Hall Effect | South Pole | 6mT Trip, 1mT Release | -40°C ~ 150°C | 3V ~ 24V | 17mA | - | Current Source | - | -40°C ~ 150°C | Automotive | AEC-Q100 | Through Hole | 2-UltraMini SIP |
|
AH3391Q-P-BMAGNETIC SWITCH UNIPOLAR 3SIP |
1,202 |
|
- |
- | 3-SIP | Bulk | Obsolete | Unipolar Switch | Hall Effect | South Pole | 27.5mT Trip, 25mT Release | 25°C | 3V ~ 28V | 4mA | 60mA | Open Drain | - | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Through Hole | 3-SIP |
|
S-5716ANDH0-I4T1UMAGNETIC SWITCH BIPOLAR SNT-4A |
4,950 |
|
Datasheet |
S-5716A | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | Omnipolar Switch | Hall Effect | North Pole, South Pole | ±2.7mT Trip, ±2.2mT Release | 25°C | 2.7V ~ 5.5V | 8µA | 2mA | Open Drain | Sleep Mode | -40°C ~ 85°C | - | - | Surface Mount | SNT-4A |
|
|
S-5716ACNL0-I4T1UMAGNETIC SWITCH UNIPOLAR SNT-4A |
4,702 |
|
Datasheet |
S-5716A | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | Unipolar Switch | Hall Effect | North Pole | ±2.7mT Trip, ±2.2mT Release | 25°C | 2.7V ~ 5.5V | 5µA | 2mA | Open Drain | Sleep Mode | -40°C ~ 85°C | - | - | Surface Mount | SNT-4A |
|
APS13291KLHALTMAGNETIC SWITCH LATCH SOT23W |
6,759 |
|
Datasheet |
- | SOT-23W | Tape & Reel (TR) | Last Time Buy | Latch | Hall Effect | South Pole | 8mT Trip, -8mT Release | 25°C | 2.8V ~ 24V | 3mA | 60mA | Open Drain | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23W |
|
RR122-1A52-511MAGNETIC SWITCH OMNIPOL SOT23-3 |
43,344 |
|
Datasheet |
RedRock® RR122 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Omnipolar Switch | Magnetic, TMR (Tunneling Magnetoresistive) | North Pole, South Pole | ±0.9mT Trip, ±0.5mT Release | 25°C | 1.7V ~ 5.5V | 1µA (Typ) | 20mA | Push-Pull | - | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
|
RR122-3C72-511MAG SWITCH LATCH/BIPLR SOT23-3 |
39,678 |
|
Datasheet |
RedRock® RR122 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Latch, Bipolar Switch | Magnetic, TMR (Tunneling Magnetoresistive) | North Pole, South Pole | -1.0mT Trip, 1.0mT Release | 25°C | 1.7V ~ 5.5V | 11µA (Typ) | 20mA | Push-Pull | - | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
|
RR122-1B92-511MAGNETIC SWITCH OMNIPOL SOT23-3 |
15,991 |
|
Datasheet |
RedRock® RR122 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Omnipolar Switch | Magnetic, TMR (Tunneling Magnetoresistive) | North Pole, South Pole | ±3.0mT Trip, ±2.0mT Release | 25°C | 1.7V ~ 5.5V | 36µA (Typ) | 20mA | Push-Pull | - | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
|
RR122-2B22-511MAGNETIC SWITCH UNIPOLAR SOT23-3 |
8,520 |
|
Datasheet |
RedRock® RR122 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Unipolar Switch | Magnetic, TMR (Tunneling Magnetoresistive) | North Pole, South Pole | -3.0mT Trip, -2.0mT Release | 25°C | 1.7V ~ 5.5V | 100nA (Typ) | 20mA | Push-Pull | - | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|

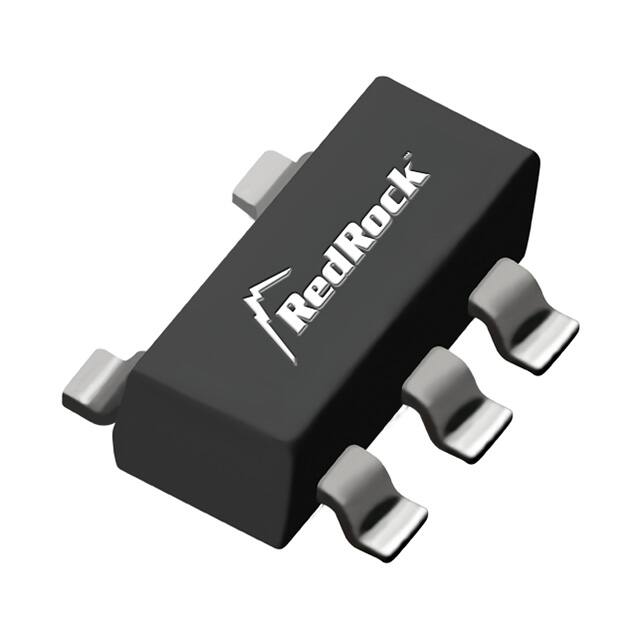

RR122-3CU2-515MAG SWITCH LATCH/BIPLR SOT23-5 |
2,663 |
|
Datasheet |
RedRock® RR122 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Latch, Bipolar Switch | Magnetic, TMR (Tunneling Magnetoresistive) | North Pole, South Pole | -1.0mT Trip, 1.0mT Release | 25°C | 1.7V ~ 5.5V | 46µA (Typ) | 20mA | Push-Pull | 10kHz Boost Mode | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
AH175-PL-A-BMAGNETIC SWITCH LATCH 3SIP |
6,767 |
|
Datasheet |
* | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TL170CLPMAGNETIC SWITCH HALL EFFECT |
7,256 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TMR1202HTSTMR SENSOR BIPL 1.5UA FAST HITMP |
7,000 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | Bipolar Switch | Magnetoresistive | North Pole, South Pole | 1.7mT Trip, -1.7mT Release | 25°C | 1.8V ~ 5.5V | 1.5µA | 9mA | Push-Pull | Temperature Compensated | -40°C ~ 150°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
S-5712CCDH1-I4T1UMAGNETIC SWITCH OMNIPOLAR SNT-4A |
4,796 |
|
Datasheet |
S-5712 | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | Omnipolar Switch | Hall Effect | North Pole, South Pole | ±4mT Trip, ±3.7mT Release | 25°C | 1.6V ~ 3.5V | 22µA | 1mA | Push-Pull | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SNT-4A |
|
|
S-5712ACSL1-I4T1UMAGNETIC SWITCH UNIPOLAR SNT-4A |
2,484 |
|
Datasheet |
S-5712 | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | Unipolar Switch | Hall Effect | South Pole | 4mT Trip, 1.1mT Release | 25°C | 1.6V ~ 3.5V | 4µA | 1mA | Push-Pull | - | -40°C ~ 85°C | - | - | Surface Mount | SNT-4A |
|
|
AH173-PL-A-BIC HALL SENSOR LATCH 25MA SIP-3L |
1,318 |
|
Datasheet |
* | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RR121-1B53-311MAGNETIC SWITCH OMNIPOL SOT23-3 |
7,765 |
|
Datasheet |
RedRock™ 121 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Omnipolar Switch | Magnetic, TMR (Tunneling Magnetoresistive) | North Pole, South Pole | 3mT Trip, 2mT Release | 25°C | 2.7V ~ 3.6V | 2.5µA | 10mA | Digital | - | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-3 |
|
|
RR122-1E73-511MAGNETIC SWITCH OMNIPOL SOT23-3 |
2,266 |
|
Datasheet |
RedRock® RR122 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Omnipolar Switch | Magnetic, TMR (Tunneling Magnetoresistive) | North Pole, South Pole | ±1.5mT Trip, ±1.0mT Release | 25°C | 1.7V ~ 5.5V | 12µA (Typ) | 20mA | Push-Pull | - | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-3 |
|
DRV5015A2QDBZTMAGNETIC SWITCH LATCH SOT23-3 |
21,399 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Latch | Hall Effect | North Pole, South Pole | 3.7mT Trip, -3.7mT Release | -40°C ~ 125°C | 2.5V ~ 5.5V | 2.8mA | 30mA | Digital | - | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-3 |
|
DRV5011ADDMRTMAGNETIC SWITCH LATCH 4X2SON |
9,471 |
|
Datasheet |
- | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Latch | Hall Effect | North Pole, South Pole | ±0.6mT Trip, ±3.8mT Release | -40°C ~ 150°C | 2.5V ~ 5.5V | 3mA | 30mA | Push-Pull | - | -40°C ~ 135°C (TA) | - | - | Surface Mount | 4-X2SON (1.1x1.4) |
Switches (Solid State) Electronic Components
Explore Switches (Solid State) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
