Switches (Solid State)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Technology | Polarization | Sensing Range | Test Condition | Voltage - Supply | Current - Supply (Max) | Current - Output (Max) | Output Type | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1227LLTTR-TMAGNETIC SWITCH LATCH SOT89-3 |
0 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | Latch | Hall Effect | South Pole | 17.5mT Trip, -17.5mT Release | -40°C ~ 150°C | 3.8V ~ 24V | 6mA | 25mA | Open Drain | - | -40°C ~ 150°C (TA) | - | - | Surface Mount | SOT-89-3 |
|
|
A1229LLTTR-TMAGNETIC SWITCH LATCH SOT89-3 |
0 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | Latch | Hall Effect | South Pole | 20mT Trip, -20mT Release | -40°C ~ 150°C | 3.8V ~ 24V | 6mA | 25mA | Open Drain | - | -40°C ~ 150°C (TA) | - | - | Surface Mount | SOT-89-3 |
|
TLE4928HALA1MAGNETIC SWITCH SPEC PURP SSO-3 |
0 |
|
Datasheet |
- | 3-SSIP Module | Tape & Box (TB) | Obsolete | Special Purpose | Hall Effect | - | - | - | - | - | - | - | - | - | Automotive | AEC-Q100 | Through Hole | PG-SSO-3-91 |
|
TLV49462KFTSA1MAGNETIC SWITCH LATCH SC59 |
0 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Latch | Hall Effect | South Pole | 3.5mT Trip, -3.5mT Release | -40°C ~ 85°C | 2.7V ~ 18V | 6mA | 20mA | Open Drain | Temperature Compensated | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | PG-SC59-3 |
|
TCS10DPU(TE85L,F)MAGNETIC SWITCH OMNIPOLAR UFV |
0 |
|
- |
TCS | 6-SMD (5 Leads), Flat Leads | Tape & Reel (TR) | Obsolete | Omnipolar Switch | Hall Effect | North Pole, South Pole | ±2.5mT Trip, ±0.3mT Release | 25°C | 2.3V ~ 3.6V | 1.3mA | 5mA | Push-Pull | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | UFV |
|
|
TCS10DLU(TE85L,F)MAGNETIC SWITCH OMNIPOLAR UFV |
0 |
|
- |
TCS | 6-SMD (5 Leads), Flat Leads | Tape & Reel (TR) | Obsolete | Omnipolar Switch | Hall Effect | North Pole, South Pole | ±2.5mT Trip, ±0.3mT Release | 25°C | 2.3V ~ 3.6V | 1.3mA | 5mA | Open Drain | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | UFV |
|
413SR10MAGNETIC SWITCH UNIPOLAR 3SIP |
0 |
|
- |
400SR | 3-SIP | Bulk | Obsolete | Unipolar Switch | Hall Effect | South Pole | 43mT Trip, 16mT Release | -40°C ~ 150°C | 4.5V ~ 24V | 15.5mA | 40mA | Open Collector | - | -40°C ~ 150°C (TA) | - | - | Through Hole | - |
|
65SS2MAGNETIC SWITCH UNIPOLAR 4DIP |
0 |
|
- |
65SS | 4-SIP Module | Bulk | Obsolete | Unipolar Switch | Hall Effect | South Pole | 70mT Trip, 10mT Release | -40°C ~ 150°C | 4.5V ~ 9V | 4mA | 10mA | Open Collector | - | -40°C ~ 150°C (TA) | - | - | Through Hole | - |
|

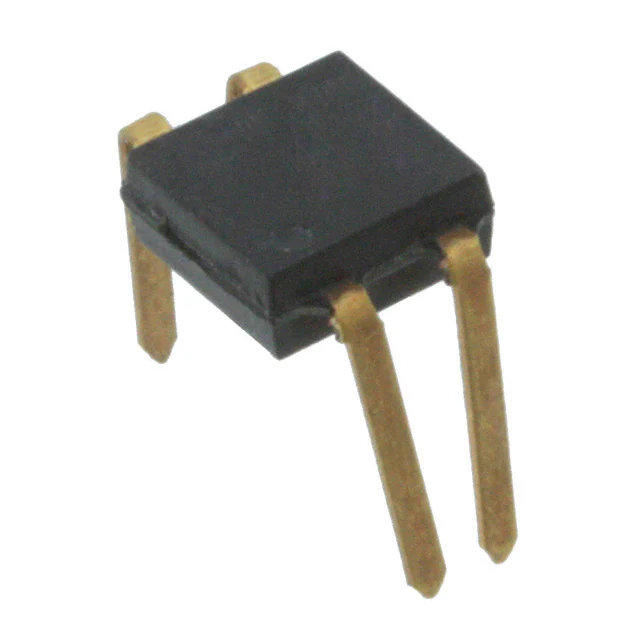

65SS4MAGNETIC SWITCH UNIPOLAR 4DIP |
0 |
|
- |
65SS | 4-DIP Module | Bulk | Obsolete | Unipolar Switch | Hall Effect | South Pole | 57.5mT Trip, 8.2mT Release | -40°C ~ 150°C | 4.5V ~ 9V | 4mA | 10mA | Open Collector | - | -40°C ~ 150°C (TA) | - | - | Through Hole | - |
|
|
SS421LMAGNETIC SWITCH LATCH 4SIP |
0 |
|
- |
SS421 | 4-SIP | Bulk | Obsolete | Latch | Hall Effect | South Pole | 25mT Trip, -25mT Release | 25°C | 4.5V ~ 16V | 15mA | 20mA | Open Drain | Temperature Compensated | -40°C ~ 105°C (TA) | - | - | Through Hole | 4-SIP |
|
|
SS-20007MAGNETIC SWITCH |
0 |
|
- |
- | - | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SS449AMAGNETIC SWITCH UNIPOLAR RADIAL |
0 |
|
Datasheet |
SS400 | 3-SIP | Bulk | Active | Unipolar Switch | Hall Effect | South Pole | 39mT Trip, 23.5mT Release | 25°C | 3.8V ~ 30V | 10mA | 20mA | Open Collector | Temperature Compensated | -40°C ~ 150°C (TA) | - | - | Through Hole | Radial Lead |
|
AH180N-WSG-7MAG SWITCH OMNIPOLAR TSOT23-3 |
0 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Omnipolar Switch | Hall Effect | North Pole, South Pole | ±5mT Trip, ±1mT Release | 25°C | 2.5V ~ 5.5V | 16µA | - | Open Drain | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-59-3 |
|
A1324LLHLU-TMAGNETIC SWITCH SOT23W |
0 |
|
Datasheet |
- | SOT-23W | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23W |
|

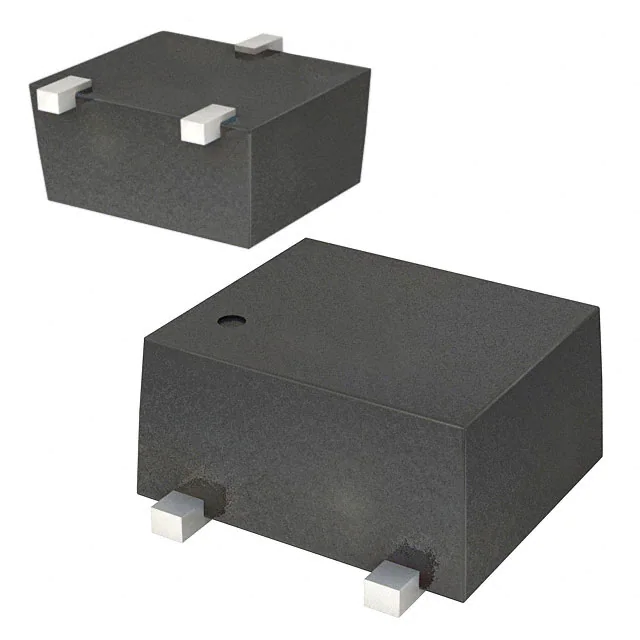

AS-V20TA-RMAGNETIC SWITCH AMR SENSOR |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | Magnetoresistive | - | 4mT Trip, 0.8mT Release | -40°C ~ 85°C | 2.5V ~ 5.5V | 12µA | - | - | - | -40°C ~ 85°C (TA) | - | - | - | - |
|
AH1883-FJG-7MAGNETIC SWITCH OMNIPOLAR 3-UDFN |
0 |
|
Datasheet |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AN48836B-NLMAG SWITCH OMNIPOLAR SMINI-5DE |
0 |
|
Datasheet |
AN488xx | 6-SMD (5 Leads), Flat Leads | Tape & Reel (TR) | Obsolete | Omnipolar Switch | Hall Effect | North Pole, South Pole | ±6mT Trip, ±0.5mT Release | 25°C | 1.65V ~ 3.6V | 5µA | 2mA | Push-Pull | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SMINI-5DE |
|
|
AN48846B-NLMAG SWITCH BIPOLAR SMINI-5DE |
0 |
|
Datasheet |
AN488xx | 6-SMD (5 Leads), Flat Leads | Tape & Reel (TR) | Obsolete | Bipolar Switch | Hall Effect | North Pole, South Pole | 4mT Trip, -4mT Release | 25°C | 1.65V ~ 3.6V | 65µA | 2mA | Push-Pull | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SMINI-5DE |
|
AH180-PG-B-SMAGNETIC SWITCH OMNIPOLAR 3SIP |
0 |
|
Datasheet |
- | 3-SIP | Bulk | Obsolete | Omnipolar Switch | Hall Effect | North Pole, South Pole | ±6mT Trip, ±2mT Release | 25°C | 2.5V ~ 5.5V | 16µA | - | Open Drain | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 3-SIP |
|
|
AH180-WG-7-PMAGNETIC SWITCH OMNIPOLAR SC59 |
0 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Omnipolar Switch | Hall Effect | North Pole, South Pole | ±6mT Trip, ±1mT Release | 25°C | 2.5V ~ 5.5V | 16µA | - | Open Drain | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-59-3 |
