Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MK01-BSWITCH REED SPST-NO 500MA 180V |
3,205 |
|
Datasheet |
MK01 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 60AT | - | 500mA (AC/DC) | 180 V | 180 V | 10W | 0.5 ms | 0.05 ms | Surface Mount | J Lead | 0.740" (18.80mm) | 0.709" L x 0.146" W x 0.134" H (18.00mm x 3.70mm x 3.40mm) | 0.134" (3.40mm) | -20°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
CT10-1020-G1SWITCH REED SPST-NO 500MA 140V |
81,231 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 20AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.640" (16.26mm) | 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm) | 0.115" (2.92mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
CT10-1030-G2SWITCH REED SPST-NO 500MA 140V |
45,274 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 30AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm) | 0.115" (2.92mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
CT10-1040-G1SWITCH REED SPST-NO 500MA 140V |
996 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 40AT | 3 ~ 35AT | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.640" (16.26mm) | 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm) | 0.115" (2.92mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
59177-1-U-00-DSWITCH REED |
2,576 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
59177-1-S-00-DSWITCH REED |
2,373 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
59177-1-T-00-DSWITCH REED |
2,346 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KSK-1A80-1015SWITCH REED SPST-NO 500MA 170V |
2,600 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 0.1 ms | Through Hole | Axial | 1.409" (35.80mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 130°C | 0.2 pF | 500mA (AC/DC) |
|
PMC-0701S1015SWITCH REED SPST-NO 500MA 120V |
6,139 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Surface Mount | Axial | 0.394" (10.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | - | 700mA (AC/DC) |
|

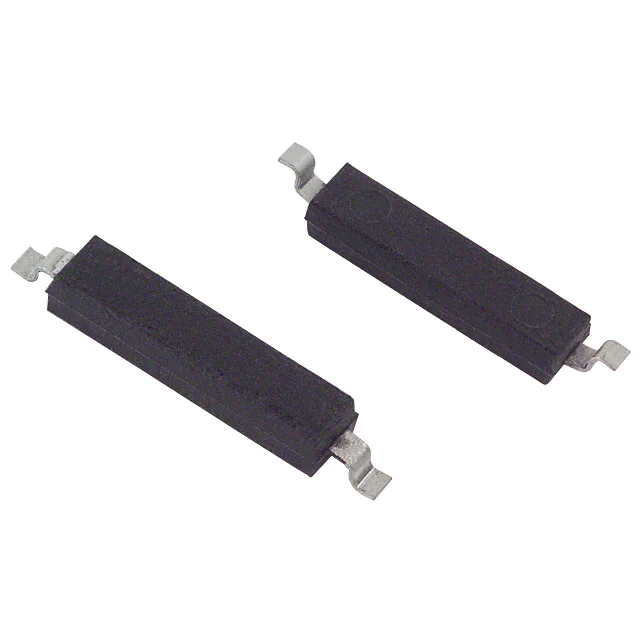

MK22-B-2SWITCH REED SPST-NO 1A 200V |
1,831 |
|
Datasheet |
MK22 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 1A (AC/DC) | 200 V | 200 V | 20W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.614" (15.60mm) | 0.457" L x 0.116" W x 0.091" H (11.60mm x 2.95mm x 2.30mm) | 0.094" (2.40mm) | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|
ORD 219/10-15 ATSWITCH REED SPST-NO 500MA 100V |
994 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 100 V | 100 V | 10W | 0.4 ms | 0.05 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.079" Dia x 0.472" L (2.00mm x 12.00mm) | - | - | 0.3 pF | 1A (AC/DC) |
|
|
MITI-7L-6-10SWITCH REED SPST-NO 180MA 120V |
871 |
|
Datasheet |
MITI-7 | Bulk | Active | Glass Body Reed | SPST-NO | 6 ~ 10AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
PMC-1001THL1015SWITCH REED SPST-NO 700MA 130V |
3,744 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.768" (19.50mm) | 0.610" L x 0.114" W x 0.110" H (15.50mm x 2.90mm x 2.80mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|
MK06-6-CSWITCH REED SPST-NO 400MA 200V |
843 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 400mA (AC/DC) | 200 V | 200 V | 10W | 0.6 ms | 0.05 ms | Through Hole | PC Pin | 0.679" (17.25mm) | 0.679" L x 0.130" W x 0.165" H (17.25mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | 0.2 pF | 500mA (AC/DC) |
|
MK06-6-ASWITCH REED SPST-NO 400MA 200V |
6,479 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 5 ~ 10AT | - | 400mA (AC/DC) | 200 V | 200 V | 10W | 0.6 ms | 0.05 ms | Through Hole | PC Pin | 0.679" (17.25mm) | 0.679" L x 0.130" W x 0.165" H (17.25mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | 0.2 pF | 500mA (AC/DC) |
|
MITI-7-6-10SWITCH REED SPST-NO 180MA 120V |
467 |
|
Datasheet |
MITI-7 | Box | Active | Glass Body Reed | SPST-NO | 6 ~ 10AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 500 µs | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
PMC-0701TS1015SWITCH REED SPST-NO 500MA 120V |
4,302 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Surface Mount | Axial | 0.394" (10.00mm) | 0.276" L x 0.079" W x 0.091" H (7.00mm x 2.00mm x 2.30mm) | - | -40°C ~ 125°C | - | 700mA (AC/DC) |
|
MK06-6-BSWITCH REED SPST-NO 400MA 200V |
175 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 400mA (AC/DC) | 200 V | 200 V | 10W | 0.6 ms | 0.05 ms | Through Hole | PC Pin | 0.679" (17.25mm) | 0.679" L x 0.130" W x 0.165" H (17.25mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | 0.2 pF | 500mA (AC/DC) |
|
PMC-0701F1015SWITCH REED SPST-NO 500MA 120V |
1,315 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Surface Mount | Gull Wing | 0.512" (13.00mm) | 0.276" L x 0.059" W x 0.079" H (7.00mm x 1.50mm x 2.00mm) | 0.079" (2.00mm) | -40°C ~ 125°C | - | 700mA (AC/DC) |
|
MK06-7-BSWITCH REED SPST-NO 500MA 200V |
343 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Through Hole | PC Pin | 0.779" (19.79mm) | 0.779" L x 0.130" W x 0.165" H (19.79mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | 0.3 pF | 1A (AC/DC) |
