Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLRR-4-17-33SWITCH REED SPST-NO 700MA 140V |
0 |
|
Datasheet |
MLRR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 33AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
|
MLRR-4-32-43SWITCH REED SPST-NO 700MA 140V |
0 |
|
Datasheet |
MLRR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 32 ~ 43AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
MRPR-3-17-23SWITCH REED SPST-NO 1.1A 140V |
0 |
|
Datasheet |
MRPR-3 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 1.1A (AC), 1.5A (DC) | 140 V | 200 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | - | -40°C ~ 125°C | 0.2 pF | 3A (DC) |
|
MRPR-3-22-28SWITCH REED SPST-NO 1.1A 140V |
0 |
|
Datasheet |
MRPR-3 | Box | Obsolete | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 1.1A (AC), 1.5A (DC) | 140 V | 200 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | - | -40°C ~ 125°C | 0.2 pF | 3A (DC) |
|
|
MRPR-3-42-48SWITCH REED SPST-NO 1.1A 140V |
0 |
|
Datasheet |
MRPR-3 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 42 ~ 48AT | - | 1.1A (AC), 1.5A (DC) | 140 V | 200 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | - | -40°C ~ 125°C | 0.2 pF | 3A (DC) |
|
MRPR-8-12-18SWITCH REED SPST-NO 700MA 265V |
0 |
|
Datasheet |
MRPR-8 | Bulk | Active | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
|

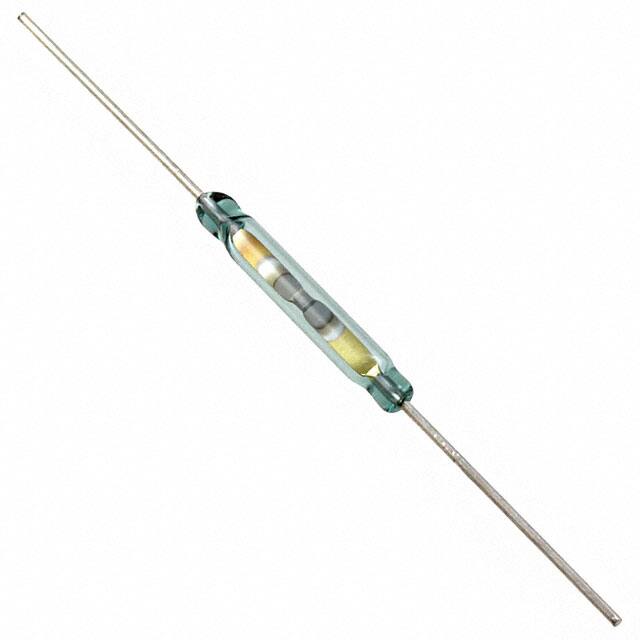

MRPR-8-22-28SWITCH REED SPST-NO 700MA 265V |
0 |
|
Datasheet |
MRPR-8 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
|
MRPR-8-27-33SWITCH REED SPST-NO 700MA 265V |
0 |
|
Datasheet |
MRPR-8 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 27 ~ 33AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
|
|
MRPR-8-27-38SWITCH REED SPST-NO 700MA 265V |
0 |
|
Datasheet |
MRPR-8 | Box | Obsolete | Glass Body Reed | SPST-NO | 27 ~ 38AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
|

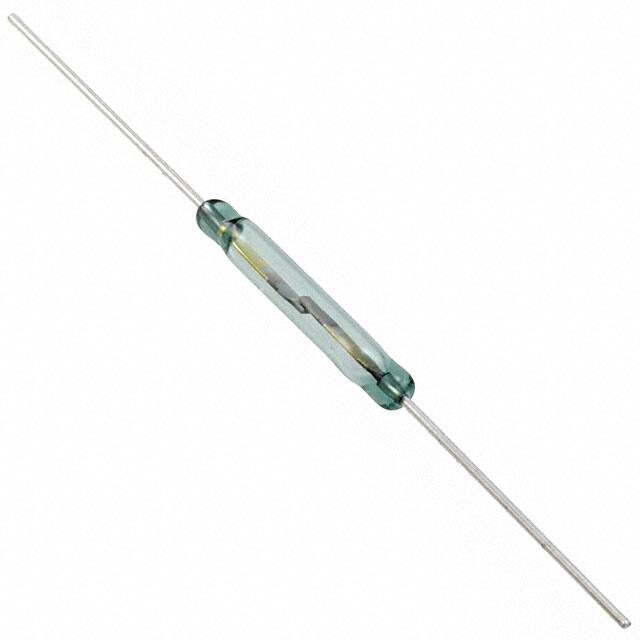

MRPR-8-32-38SWITCH REED SPST-NO 700MA 265V |
0 |
|
Datasheet |
MRPR-8 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 32 ~ 38AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
|
|
MRPR-8-37-43SWITCH REED SPST-NO 700MA 265V |
0 |
|
Datasheet |
MRPR-8 | Box | Obsolete | Glass Body Reed | SPST-NO | 37 ~ 43AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
|
RI-03AASWITCH REED SPST-NO 500MA 140V |
0 |
|
- |
RI-03 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 14 ~ 23AT | 6 ~ 21AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.591" L (2.54mm x 15.00mm) | - | -55°C ~ 125°C | 0.3 pF | 1.5A (DC) |
|
|
KSK-1A69-120170SWITCH REED SPST-NO 3A 10000V |
0 |
|
Datasheet |
KSK | Bulk | Obsolete | Glass Body Reed | SPST-NO | 120 ~ 170AT | - | 3A (AC/DC) | 10000 V | 10000 V | 50W | 3 ms | 1.5 ms | Surface Mount | Axial, Flat | 3.213" (81.60mm) | 0.213" Dia x 2.102" L (5.40mm x 53.40mm) | - | -40°C ~ 130°C | 0.8 pF | 5A (AC/DC) |
|
KSK-1A85-3040SWITCH REED SPST-NO 1A 1000V |
0 |
|
Datasheet |
KSK | Bulk | Obsolete | Glass Body Reed | SPST-NO | 30 ~ 40AT | - | 1A (AC/DC) | 1000 V | 1000 V | 100W | 1.1 ms | 0.1 ms | Through Hole | Axial | 2.181" (55.40mm) | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) | - | -40°C ~ 130°C | 0.5 pF | 2.5A (AC/DC) |
|
ORD 2210/10-20 ATSWITCH REED SPST-NO 700MA 150V |
0 |
|
Datasheet |
ORD | Bulk | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 20AT | - | 700mA (AC), 1A (DC) | 150 V | 200 V | 50W | 0.6 ms | 0.05 ms | Through Hole | Axial | 2.181" (55.40mm) | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) | - | - | 0.5 pF | 2.5A (AC/DC) |
|
|
ORD 2212/20-30 ATSWITCH REED SPST-NO 200MA 100V |
0 |
|
Datasheet |
ORD | Bulk | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 30AT | - | 200mA (AC/DC) | 100 V | 100 V | 10W | 0.4 ms | 0.05 ms | Through Hole | Axial | 1.728" (43.90mm) | 0.110" Dia x 0.650" L (2.80mm x 16.50mm) | - | - | 0.5 pF | 500mA (AC/DC) |
|
|
ORD 9216/20-30 ATSWITCH REED SPST-NO 500MA 100V |
0 |
|
- |
ORD | Bulk | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 30AT | - | 500mA (AC/DC) | 100 V | 100 V | 10W | 0.4 ms | 0.05 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | - | - | 0.3 pF | 1A (AC/DC) |
|
KSK-1A04-1015SWITCH REED SPST-NO 300MA 30V |
0 |
|
Datasheet |
KSK | Bulk | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 300mA (AC/DC) | 30 V | 30 V | 1W | 0.2 ms | 0.15 ms | Surface Mount | Axial, Flat | 1.358" (34.50mm) | 0.161" L x 0.057" W x 0.043" H (4.10mm x 1.45mm x 1.10mm) | - | -40°C ~ 130°C | 0.1 pF | 500mA (AC/DC) |
|
FRB2S1015SWITCH REED SPST-NO 500MA 200V |
0 |
|
Datasheet |
FRB | Bulk | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.549" L x 0.100" W x 0.090" H (13.94mm x 2.54mm x 2.29mm) | - | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
|
FRB2S1520SWITCH REED SPST-NO 500MA 200V |
0 |
|
Datasheet |
FRB | Bulk | Obsolete | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10VA | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.360" (34.54mm) | 0.549" L x 0.100" W x 0.090" H (13.94mm x 2.54mm x 2.29mm) | - | -40°C ~ 125°C | 0.3 pF | 1.5A (AC/DC) |
