Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74HCT04DB,118IC INVERTER 6CH 1-INP 14SSOP |
0 |
|
Datasheet |
74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
74HCT04PW,112IC INVERTER 6CH 1-INP 14TSSOP |
0 |
|
Datasheet |
74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|

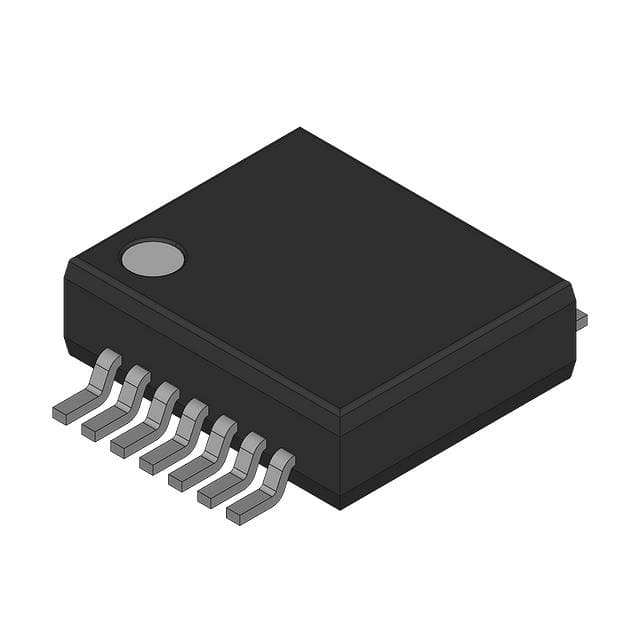

74HCT08DB,118IC GATE AND 4CH 2-INP 14SSOP |
0 |
|
Datasheet |
74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
|
74HCT08PW,112IC GATE AND 4CH 2-INP 14TSSOP |
0 |
|
Datasheet |
74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HCT10D,652IC GATE NAND 3CH 3-INP 14SO |
0 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 3 | 3 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74HCT132DB,118IC GATE NAND 4CH 2-INP 14SSOP |
0 |
|
Datasheet |
74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 33ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
74HCT132PW,112IC GATE NAND 4CH 2-INP 14TSSOP |
0 |
|
Datasheet |
74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 33ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HCT14PW,112IC INVERTER 6CH 1-INP 14TSSOP |
0 |
|
Datasheet |
74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 34ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74HCT20D,652IC GATE NAND 2CH 4-INP 14SO |
0 |
|
- |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 2 | 4 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 28ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74HCT20D,653IC GATE NAND 2CH 4-INP 14SO |
0 |
|
- |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | 4 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 28ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74HCT27D,652IC GATE NOR 3CH 3-INP 14SO |
0 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR Gate | 3 | 3 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 21ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74HCT27DB,118IC GATE NOR 3CH 3-INP 14SSOP |
0 |
|
Datasheet |
74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NOR Gate | 3 | 3 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 21ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
74HCT27PW,112IC GATE NOR 3CH 3-INP 14TSSOP |
0 |
|
Datasheet |
74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NOR Gate | 3 | 3 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 21ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HCT2G86DP,125IC GATE XOR 2CH 2-INP 8TSSOP |
0 |
|
Datasheet |
74HCT | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 2 | 2 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
|
74HCT30D,652IC GATE NAND 1CH 8-INP 14SO |
0 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 1 | 8 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 28ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74HCT30DB,118IC GATE NAND 1CH 8-INP 14SSOP |
0 |
|
Datasheet |
74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 1 | 8 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 28ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
|
74HCT30PW,112IC GATE NAND 1CH 8-INP 14TSSOP |
0 |
|
Datasheet |
74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NAND Gate | 1 | 8 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 28ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74HCT32DB,118IC GATE OR 4CH 2-INP 14SSOP |
0 |
|
Datasheet |
74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 5.2mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
|
74HCT32PW,112IC GATE OR 4CH 2-INP 14TSSOP |
0 |
|
Datasheet |
74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HCT4002D,112IC GATE NOR 2CH 4-INP 14SO |
0 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR Gate | 2 | 4 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 22ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
