Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74VHCT14ASJXIC INVERT SCHMITT 6CH 1INP 14SOP |
0 |
|
Datasheet |
74VHCT | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 9.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
74VHCU04MIC INVERTER 6CH 1-INP 14SOIC |
0 |
|
Datasheet |
74VHCU | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.3V | 1.7V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
74VHCU04SJIC INVERTER 6CH 1-INP 14SOP |
0 |
|
Datasheet |
74VHCU | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.3V | 1.7V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74VHCU04SJXIC INVERTER 6CH 1-INP 14SOP |
0 |
|
Datasheet |
74VHCU | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.3V | 1.7V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
CD4001BCSJXIC GATE NOR 4CH 2-INP 14SOP |
0 |
|
Datasheet |
4000B | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NOR Gate | 4 | 2 | - | 3V ~ 15V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 70ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOP |
|
CD4049UBCSJIC INVERTER 6CH 1-INP 16SOP |
0 |
|
- |
4000B | 16-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 3V ~ 15V | 4 µA | 7.2mA, 29mA | 1V ~ 3V | 4V ~ 12V | 35ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 16-SOP |
|
|
CD4069UBCSJIC INVERTER 6CH 1-INP 14SOP |
0 |
|
Datasheet |
4000B | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 3V ~ 15V | 1 µA | 3.4mA, 3.4mA | 1V ~ 3V | 4V ~ 12V | 50ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOP |
|
|
CD4069UBCSJXIC INVERTER 6CH 1-INP 14SOP |
0 |
|
Datasheet |
4000B | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 3V ~ 15V | 1 µA | 3.4mA, 3.4mA | 1V ~ 3V | 4V ~ 12V | 50ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOP |
|
|
DM74ALS00ASJXIC GATE NAND 4CH 2-INP 14SOP |
0 |
|
Datasheet |
74ALS | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 11ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOP |
|

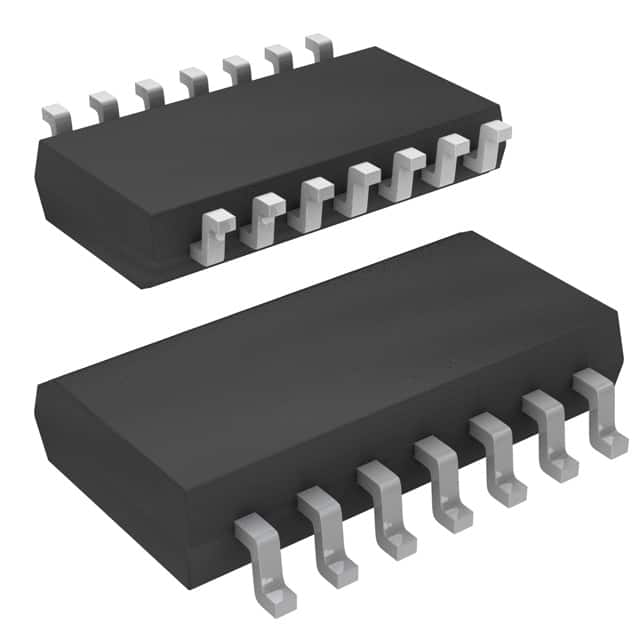

DM74ALS02SJXIC GATE NOR 4CH 2-INP 14SOP |
0 |
|
Datasheet |
74ALS | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NOR Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 12ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOP |
|
DM74ALS09NIC GATE AND 4CH 2-INP 14MDIP |
0 |
|
Datasheet |
74ALS | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | AND Gate | 4 | 2 | Open Collector | 4.5V ~ 5.5V | - | -, 8mA | 0.8V | 2V | 54ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-MDIP |
|
|
DM74ALS1008AMIC GATE AND 4CH 2-INP 14SOIC |
0 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 2.6mA, 24mA | 0.8V | 2V | 9ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74ALS1008AMXIC GATE AND 4CH 2-INP 14SOIC |
0 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 2.6mA, 24mA | 0.8V | 2V | 9ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74ALS1032AMXIC GATE OR 4CH 2-INP 14SOIC |
0 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 2.6mA, 24mA | 0.8V | 2V | 12ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74ALS38AMIC GATE NAND 4CH 2-INP 14SOIC |
0 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | Open Collector | 4.5V ~ 5.5V | - | -, 24mA | 0.8V | 2V | 33ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74AS1032AMIC GATE OR 4CH 2-INP 14SOIC |
0 |
|
Datasheet |
74AS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 48mA, 48mA | 0.8V | 2V | 6.3ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74AS1032AMXIC GATE OR 4CH 2-INP 14SOIC |
0 |
|
Datasheet |
74AS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 48mA, 48mA | 0.8V | 2V | 6.3ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74AS21MXIC GATE AND 2CH 4-INP 14SOIC |
0 |
|
Datasheet |
74AS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 2 | 4 | - | 4.5V ~ 5.5V | - | 2mA, 20mA | 0.8V | 2V | 6ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
74ACTQ04SCXIC INVERTER 6CH 1IN 14SOIC |
0 |
|
Datasheet |
74ACTQ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74VHC32NIC GATE OR 4CH 2-INP 14MDIP |
0 |
|
Datasheet |
74VHC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-MDIP |
Gates and Inverters Electronic Components
Explore Gates and Inverters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
