Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC74AC04FN(F,M)IC INVERTER 6CH 1IN 14SOL |
0 |
|
Datasheet |
74AC | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 2V ~ 5.5V | 4 µA | 24mA, 24mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 6.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOL |
|
|
TC74AC86FN(F,M)IC GATE XOR 4CH 2-INP 14SOL |
0 |
|
Datasheet |
74AC | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 5.5V | 4 µA | 24mA, 24mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.3ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOL |
|
|
TC74LCX00FN(F,M)IC GATE NAND 4CH 2-INP 14SOL |
0 |
|
Datasheet |
74LCX | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.8V | 2V | 5.2ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOL |
|

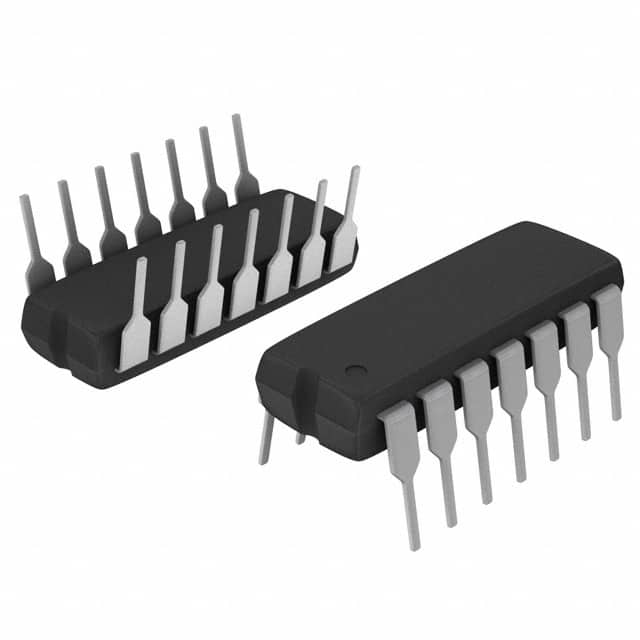

MC14001BCPGIC GATE NOR 4CH 2-INP 14DIP |
0 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NOR Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
MC14011UBCPGIC GATE NAND 4CH 2-INP 14DIP |
0 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.5mA, 8.8mA | 1V ~ 2.5V | 4V ~ 12.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14012BCPGIC GATE NAND 2CH 4-INP 14DIP |
0 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 2 | 4 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14025BCPGIC GATE NOR 3CH 3-INP 14DIP |
0 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NOR Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
MC14049BCPGIC INVERTER 6CH 1-INP 16DIP |
0 |
|
Datasheet |
4000B | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 3V ~ 18V | 4 µA | 10mA, 40mA | 1.5V ~ 4V | 3.5V ~ 11V | 60ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 16-PDIP |
|
|
MC14049UBCPGIC INVERTER 6CH 1-INP 16DIP |
0 |
|
Datasheet |
4000B | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 3V ~ 18V | 4 µA | 10mA, 40mA | 1V ~ 2.5V | 4V ~ 12.5V | 50ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 16-PDIP |
|
|
MC14069UBCPGIC INVERTER 6CH 1-INP 14DIP |
0 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1V ~ 2.5V | 4V ~ 12.5V | 55ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14070BCPGIC GATE XOR 4CH 2-INP 14DIP |
0 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 110ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14073BCPGIC GATE AND 3CH 3-INP 14DIP |
0 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | AND Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14081BCPGIC GATE AND 4CH 2-INP 14DIP |
0 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | AND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14093BCPGIC GATE NAND 4CH 2-INP 14DIP |
0 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14106BCPGIC INVERT SCHMITT 6CH 1INP 14DIP |
0 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC14584BCPGIC INVERT SCHMITT 6CH 1INP 14DIP |
0 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.6V ~ 4.6V | 3.4V ~ 10.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC74HC00ANGIC GATE NAND 4CH 2-INP 14DIP |
0 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC74HC02ANGIC GATE NOR 4CH 2-INP 14DIP |
0 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NOR Gate | 4 | 2 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC74HC04ANGIC INVERTER 6CH 1-INP 14DIP |
0 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
MC74HC132ANGIC GATE NAND 4CH 2-INP 14DIP |
0 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | Schmitt Trigger | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V | 21ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
Gates and Inverters Electronic Components
Explore Gates and Inverters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
