Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74HCU04NIC INVERTER 6CH 1-INP 14DIP |
2,021 |
|
Datasheet |
74HCU | 14-DIP (0.300", 7.62mm) | Bulk | Active | Inverter | 6 | 1 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.7V ~ 4.8V | 14ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|

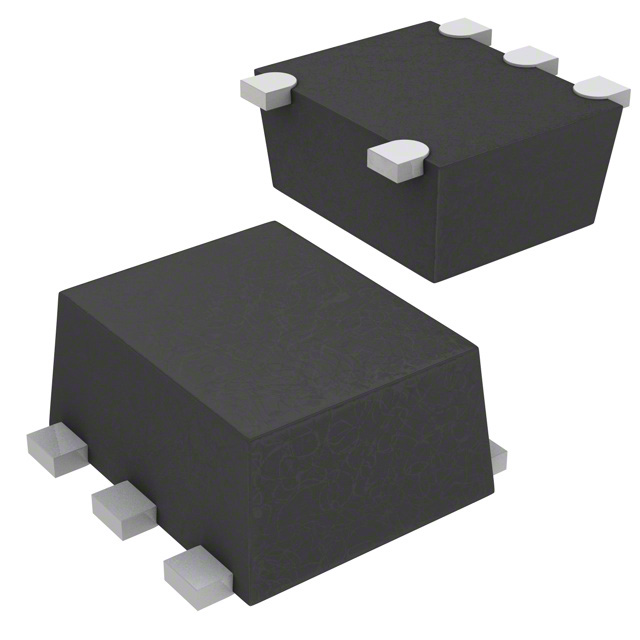

7UL1G08FS,LFIC GATE AND 1CH 2-INP FSV |
10,128 |
|
Datasheet |
7UL | SOT-953 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 0.9V ~ 3.6V | 1 µA | 8mA, 8mA | 0.1V ~ 0.4V | 0.75V ~ 2.48V | 4.4ns @ 3.6V, 30pF | -40°C ~ 85°C (TA) | - | - | Surface Mount | fSV |
|
|
SN74AC04NIC INVERTER 6CH 1IN 14DIP |
1,487 |
|
Datasheet |
74AC | 14-DIP (0.300", 7.62mm) | Bulk | Active | Inverter | 6 | 1 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
NC7SV00P5XIC GATE NAND 1CH 2-INP SC70-5 |
7,656 |
|
Datasheet |
7SV | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 0.9V ~ 3.6V | 900 nA | 24mA, 24mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 2.3ns @ 3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
74VHC132FTIC GATE NAND 4CH 2-INP 14TSSOPB |
4,346 |
|
Datasheet |
74VHC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.1V ~ 36V | 2V ~ 4.5V | 9.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOPB |
|
NC7SV32P5XIC GATE OR 1CH 2-INP SC70-5 |
2,958 |
|
Datasheet |
7SV | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 0.9V ~ 3.6V | 900 nA | 24mA, 24mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 3.3ns @ 3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
74VHCT04AFTIC INVERTER 6CH 1-INP 14TSSOP |
2,453 |
|
Datasheet |
74VHCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
NC7SV08P5XIC GATE AND 1CH 2-INP SC88A |
2,188 |
|
Datasheet |
7SV | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 0.9V ~ 3.6V | 900 nA | 24mA, 24mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 2.3ns @ 3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5) |
|
|
74LCX32FTIC GATE OR 4CH 2-INP 14TSSOPB |
1,927 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 1.65V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 6.5ns @ 3.3V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOPB |
|
SN74HC08IPWRQ1IC GATE AND 4CH 2-INP 14TSSOP |
3,749 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP |
|
|
SN74AC11NIC GATE AND 3CH 3-INP 14DIP |
688 |
|
Datasheet |
74AC | 14-DIP (0.300", 7.62mm) | Bulk | Active | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
SN74AC08QPWRQ1IC GATE AND 4CH 2-INP 14TSSOP |
705 |
|
Datasheet |
74AC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP |
|
NC7ST86M5XIC GATE XOR 1CH 2-INP SOT23-5 |
23,176 |
|
Datasheet |
7ST | SC-74A, SOT-753 | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 1 | 2 | - | 4.5V ~ 5.5V | 1 µA | 2mA, 2mA | 0.8V | 2V | 28ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
74LVC1G14Z-7IC INVERT SCHMITT 1CH 1IN SOT553 |
18,771 |
|
Datasheet |
74LVC | SOT-553 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.3V ~ 1.45V | 1.2V ~ 3.33V | 6.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-553 |
|
74LVC2G08DP-Q100HIC GATE AND 2CH 2-INP 8TSSOP |
15,815 |
|
Datasheet |
74LVC | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 0.95V ~ 3.4V | 3.8ns @ 5V, 50pF | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-TSSOP |
|
|
CD4073BPWRIC GATE AND 3CH 3-INP 14TSSOP |
8,475 |
|
Datasheet |
4000B | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74HC21QPWRQ1IC GATE AND 2CH 4-INP 14TSSOP |
5,936 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 4 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 19ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP |
|
|
NC7SV04P5XIC INVERTER 1CH 1-INP SC70-5 |
5,333 |
|
Datasheet |
7SV | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 0.9V ~ 3.6V | 900 nA | 24mA, 24mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 2.3ns @ 3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
SN74LVC08AQPWRQ1IC GATE AND 4CH 2-INP 14TSSOP |
4,689 |
|
Datasheet |
74LVC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.8V | 2V | 4.1ns @ 3.3V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP |
|
|
SN74AHCT04NIC INVERTER 6CH 1-INP 14DIP |
677 |
|
Datasheet |
74AHCT | 14-DIP (0.300", 7.62mm) | Bulk | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Through Hole | 14-PDIP |
Gates and Inverters Electronic Components
Explore Gates and Inverters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
