Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC74VHC1G86DFT2G-L22038IC GATE XOR 1CH 2-INP SC88A |
195 |
|
Datasheet |
74VHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
SN74LVC1G86DBVRG4IC GATE XOR 1CH 2-INP SOT23-5 |
621 |
|
Datasheet |
74LVC | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | XOR (Exclusive OR) | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
74HC4049DB,118IC BUFFER INVERT 6V 16SSOP |
1,000 |
|
Datasheet |
74HC | 16-SSOP (0.209", 5.30mm Width) | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 16-SSOP |
|
|
74VHCT32ATTRIC GATE OR 4CH 2-INP 14TSSOP |
669 |
|
Datasheet |
74VHCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74LVC11D,112IC GATE AND 3CH 3-INP 14SO |
231 |
|
Datasheet |
74LVC | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | AND Gate | 3 | 3 | - | 1.2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1.08V ~ 2V | 6.2ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
SN74LS32NSRG4IC GATE OR 4CH 2-INP 14SO |
0 |
|
Datasheet |
74LS | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | OR Gate | 4 | 2 | - | 4.75V ~ 5.25V | - | 400µA, 8mA | 0.8V | 2V | 22ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SO |
|
SN74F64NIC GATE INVERTER AND/OR |
948 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

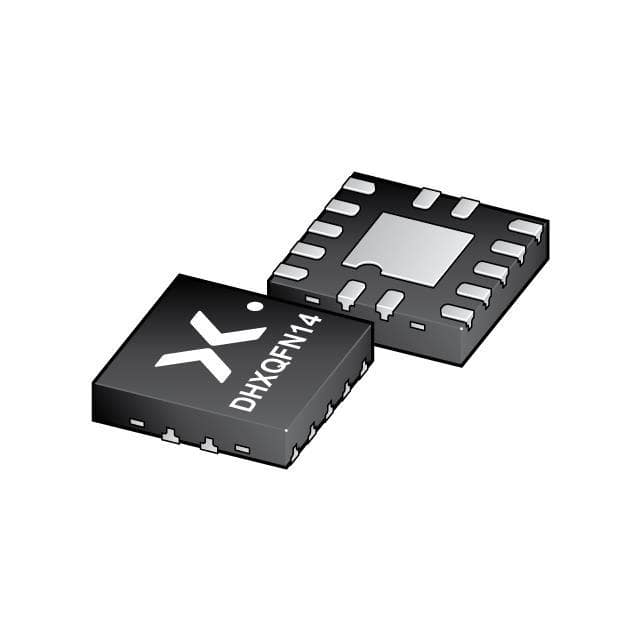

74LVC14ABZZIC INVERTER 6CH 1-INP 14DHXQFN |
799 |
|
Datasheet |
74LVC | 14-XFQFN Exposed Pad | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 40 µA | 24mA, 24mA | 0.75V ~ 1.5V | 1V ~ 2V | 8ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-DHXQFN (2x2) |
|
74AHC32BQ,115IC GATE OR 4CH 2-INP 14DHVQFN |
1,000 |
|
Datasheet |
74AHC | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-DHVQFN (2.5x3) |
|
|
SN74AHC1G04DBVRG4IC INVERTER 1CH 1-INP SOT23-5 |
566 |
|
Datasheet |
74AHC | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Inverter | 1 | 1 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
74LVT00PW,118IC GATE NAND 4CH 2-INP 14TSSOP |
0 |
|
Datasheet |
74LVT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | - | 2.7V ~ 3.6V | - | 20mA, 32mA | 0.8V | 2V | 2.7ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
74HC10PW,112IC GATE NAND 3CH 3-INP 14TSSOP |
276 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NAND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 16ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74VHCT08BQ,115IC GATE AND 4CH 2-INP 14DHVQFN |
245 |
|
Datasheet |
74VHCT | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-DHVQFN (2.5x3) |
|
74VHC02MTRIC GATE NOR 4CH 2-INP 14SO |
142 |
|
Datasheet |
74VHC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NOR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
CD4025BEIC GATE NOR 3CH 3-INP 14DIP |
957 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NOR Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
74ABT08PW,118IC GATE AND 4CH 2-INP 14-TSSOP |
956 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DM74S133NIC GATE NAND 1CH 13-INP 16DIP |
1,000 |
|
Datasheet |
74S | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 1 | 13 | - | 4.75V ~ 5.25V | - | 1mA, 20mA | 0.8V | 2V | 10ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 16-PDIP |
|
|
74AHCT32S14-13IC GATE OR 4CH 2-INP 14SO |
743 |
|
Datasheet |
74AHCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 20 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-SO |
|
74HC32T14-13IC GATE OR 4CH 2-INP 14TSSOP |
594 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 2V ~ 6V | 20 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
4081BDMIC GATE AND 14CDIP |
993 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Gates and Inverters Electronic Components
Explore Gates and Inverters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
