Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC2G06DCKRIC INVERTER 2CH 2-INP SC70-6 |
14,628 |
|
Datasheet |
74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Inverter | 2 | 2 | Open Drain | 1.65V ~ 5.5V | 10 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
SN74LVC1G04DRLRIC INVERTER 1CH 1-INP SOT5 |
14,195 |
|
Datasheet |
74LVC | SOT-553 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.7ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-5 |
|
SN74HCT00PWRIC GATE NAND 4CH 2-INP 14TSSOP |
13,469 |
|
Datasheet |
74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 18ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74AHC08PWRIC GATE AND 4CH 2-INP 14TSSOP |
12,013 |
|
Datasheet |
74AHC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
SN74AUP1G08DBVRIC GATE AND 1CH 2-INP SOT23-5 |
11,217 |
|
Datasheet |
74AUP | SC-74A, SOT-753 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
CD74HC00M96IC GATE NAND 4CH 2-INP 14SOIC |
11,209 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|

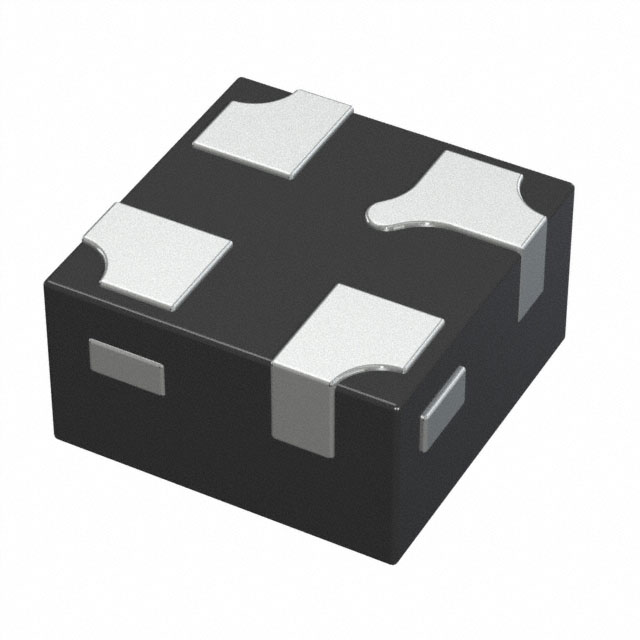

74LVC1G14GX4ZIC INVERT SCHMITT 1CH 1IN 4X2SON |
8,037 |
|
Datasheet |
74LVC | 4-XFDFN | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.46V ~ 1.58V | 1.14V ~ 2.79V | 6.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-X2SON (0.6x0.6) |
|
|
SN74HCT04PWRIC INVERTER 6CH 1-INP 14TSSOP |
7,875 |
|
Datasheet |
74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 18ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74LVC1G04GX4ZIC INVERTER 1CH 1-INP 4X2SON |
7,161 |
|
Datasheet |
74LVC | 4-XFDFN | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-X2SON (0.6x0.6) |
|
|
SN74HC03DRIC GATE NAND 4CH 2-INP 14SOIC |
7,029 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Open Drain | 2V ~ 6V | 2 µA | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 23ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74HC27DRIC GATE NOR 3CH 3-INP 14SOIC |
6,552 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NOR Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74HC2G04GW,125IC INVERTER 2CH 2-INP 6TSSOP |
5,908 |
|
Datasheet |
74HC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Inverter | 2 | 2 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
74LVC2G14GS,132IC INVERT SCHMITT 2CH 2INP 6XSON |
5,633 |
|
Datasheet |
74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Inverter | 2 | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.25V ~ 1.2V | 1.7V ~ 3.8V | 4.3ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
SN74AHC1G02DBVRQ1AUTOMOTIVE, 2-INPUT 2-V TO 5.5-V |
4,599 |
|
Datasheet |
74AHC | SC-74A, SOT-753 | Tape & Reel (TR) | Active | NOR Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 6ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
74LVC11PW,118IC GATE AND 3CH 3-INP 14TSSOP |
4,355 |
|
Datasheet |
74LVC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 3 | 3 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1.08V ~ 2V | 6.2ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74HC86PW,118IC GATE XOR 4CH 2-INP 14TSSOP |
4,103 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 20ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74HC2G14GW,125IC INVERT SCHMITT 2CH 2IN 6TSSOP |
3,983 |
|
Datasheet |
74HC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Inverter | 2 | 2 | Schmitt Trigger | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V | 21ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
|
74LVC02APW,118IC GATE NOR 4CH 2-INP 14TSSOP |
2,361 |
|
Datasheet |
74LVC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NOR Gate | 4 | 2 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1.08V ~ 2V | 4.4ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74LVC11D,118IC GATE AND 3CH 3-INP 14SO |
2,111 |
|
Datasheet |
74LVC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND Gate | 3 | 3 | - | 1.2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1.08V ~ 2V | 6.2ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74HCT04D,653IC INVERTER 6CH 1-INP 14SO |
2,086 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
