Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AUP1G97DBVTG4IC CONFIG MULTI FUNCTION SOT23-6 |
0 |
|
Datasheet |
74AUP | SOT-23-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
SN74AUP1G97DCKTG4IC CONFIG MULTI FUNCTION SC70-6 |
0 |
|
Datasheet |
74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|
NC7SZ58P6X-L22347IC LOGIC GATE UHS 2-INP SC70-6 |
0 |
|
Datasheet |
7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC2G100PWRQ1AUTOMOTIVE TWO-CHANNEL 1.1V-TO-3 |
0 |
|
Datasheet |
74LVC | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 24mA, 24mA | 1.1V ~ 3.6V | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 16-TSSOP |
|
74LVC1G97FW4-7IC CONFIG MULTI-FUNC GATE |
43 |
|
Datasheet |
74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN1010-6 |
|

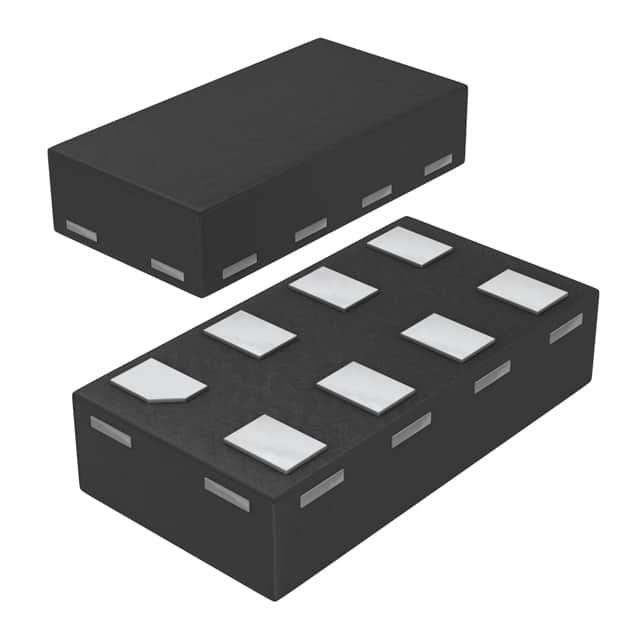

74LVC1G99GF,115IC GATE MUTLIFUNCT 3ST 8XSON |
4 |
|
Datasheet |
74LVC | 8-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.35x1) |
|
SN74LV8151DGVRE4IC BUFFER INVERTER 10BIT 24TVSOP |
0 |
|
Datasheet |
74LV | 24-TFSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Buffer/Inverter | 1 | 10 | No | Single-Ended | 12mA, 12mA | 2V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-TVSOP |
|
SN74LV8151PWRE4IC BUFFER INVERTER 10BIT 24TSSOP |
0 |
|
Datasheet |
74LV | 24-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Buffer/Inverter | 1 | 10 | No | Single-Ended | 12mA, 12mA | 2V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-TSSOP |
|
CD4019BCNIC GATE AND/OR QUAD 16-DIP |
0 |
|
Datasheet |
4000B | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | AND/OR Gate | 4 | 2, 2 | No | Single-Ended | 3mA, 10mA | 3V ~ 15V | -55°C ~ 125°C | - | - | Through Hole | 16-PDIP |
|
CD4572UBPWIC CMOS HEX GATE 4INV 16-TSSOP |
0 |
|
Datasheet |
4000B | 16-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NOR/NAND/INVERT Gate | 6 | 8 Input (1, 1, 2, 2, 1, 1) | No | Differential | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
|
CD4572UBPWE4IC CMOS HEX GATE 4INV 16-TSSOP |
0 |
|
Datasheet |
4000B | 16-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NOR/NAND/INVERT Gate | 6 | 8 Input (1, 1, 2, 2, 1, 1) | No | Differential | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
|
CD4572UBPWG4IC CMOS HEX GATE 4INV 16-TSSOP |
0 |
|
Datasheet |
4000B | 16-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NOR/NAND/INVERT Gate | 6 | 8 Input (1, 1, 2, 2, 1, 1) | No | Differential | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
74LVC1G58FZ4-7IC LOGIC GATE/INVERTER |
0 |
|
Datasheet |
74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN1410-6 |
|
CD4078BPWE4IC 8INPUT NOR/OR GATE 14-TSSOP |
0 |
|
Datasheet |
4000B | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NOR/OR Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74LVC1G99GD,125IC GATE MUTLIFUNCT 3ST XSON8U |
0 |
|
Datasheet |
74LVC | 8-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
DM74LS51NIC GATE AND/OR/INVERT 2INP 14DIP |
0 |
|
Datasheet |
74LS | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | AND/OR/INVERT Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | 400µA, 8mA | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Through Hole | 14-MDIP |
|
CD4086BM96IC EXPND AND-ORINV GATE 14-SOIC |
0 |
|
Datasheet |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND/OR/INVERT Gate | 1 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
CD4086BM96E4IC EXPND AND-ORINV GATE 14-SOIC |
0 |
|
Datasheet |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND/OR/INVERT Gate | 1 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
CD4086BM96G4IC EXPND AND-ORINV GATE 14-SOIC |
0 |
|
Datasheet |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND/OR/INVERT Gate | 1 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
74AUP1G97FW4-7IC GATE SGL GATE X2-DFN1010-6 |
0 |
|
Datasheet |
74AUP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN1010-6 |
Gates and Inverters - Multi-Function, Configurable Electronic Components
Frequently Asked Questions
Q1: What products are included in Gates and Inverters - Multi-Function, Configurable?
This category includes related Gates and Inverters - Multi-Function, Configurable subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Gates and Inverters - Multi-Function, Configurable components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Gates and Inverters - Multi-Function, Configurable and other electronic components.
