Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D5F-3C30SWITCH SNAP ACTION SPST-NO |
0 |
|
- |
D5F | Bulk | Obsolete | SPST-NO | Off-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 250gf | 100gf | - | 0.020" (0.5mm) | 0.0008" (0.020mm) | - | -10°C ~ 60°C |
|
|
604HE223-6BSWITCH SNAP ACTION 4PDT 1A 28V |
0 |
|
Datasheet |
HE | Bulk | Active | 4PDT | On-Mom | 1A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | - | - | 2268 ~ 5443gf | 1361gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.125" (3.2mm) | -54°C ~ 125°C |
|
|
ML-1155SEALED SE SWITCH |
0 |
|
Datasheet |
ML | Bulk | Active | DPDT | Off-On | 5A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Panel Mount | Cable with Connector | - | - | 2268gf | 907gf | - | 0.040" (1.0mm) | 0.020" (0.51mm) | 0.125" (3.2mm) | -55°C ~ 85°C |
|
|
616.2000.705FOOT SWITCH, DOUBLE PEDAL |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
105ML1SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
ML | Bulk | Not For New Designs | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | - | Sealed | 2722gf | 1814gf | 3.856" (97.9mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.500" (12.7mm) | - |
|
|
1HE44-RSWITCH LIMIT PB PNL MT DPDT 5A |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
24EN9-6SWITCH SNAP ACTION DPDT 10A 28V |
0 |
|
Datasheet |
EN | Bulk | Active | DPDT | On-Mom | 10A (DC) | - | 28 V | Cross Roller Plunger | Panel Mount | Wire Leads | - | - | 5443gf | 2268gf | - | 0.050" (1.27mm) | 0.035" (0.9mm) | 0.250" (6.35mm) | -55°C ~ 85°C |
|
|
404HE223-6BSEALED SE/HI TEMP SEALED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

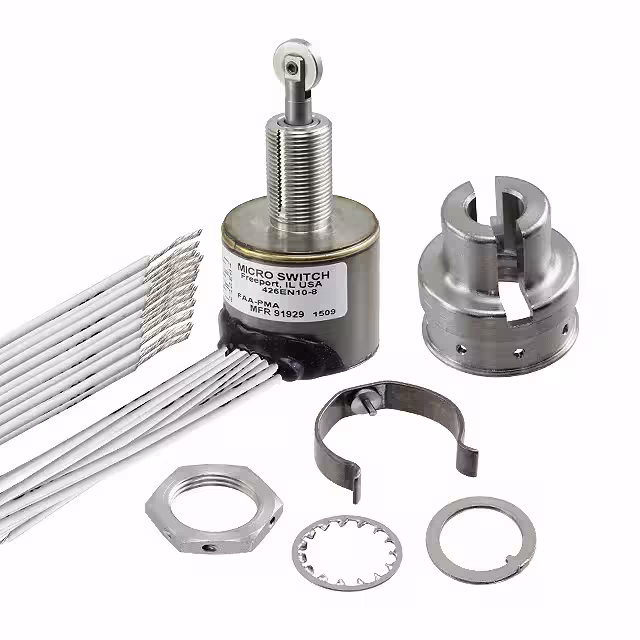

426EN10-8SWITCH SNAP ACTION SPDTX6 7A 28V |
0 |
|
Datasheet |
EN | Bulk | Active | SPDT x 6 | On-Mom | 7A (DC) | - | 28 V | Roller Plunger | Panel Mount | Wire Leads | - | Cable Length 8' | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.030" (0.76mm) | 0.250" (6.35mm) | -54°C ~ 85°C |
|
|
424HE55-6SEALED SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | SPDT x 4 | On-On | 1A (DC) | - | 28 V | Lever, Roller | Panel Mount | Wire Leads | - | - | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.51mm) | 0.250" (6.35mm) | - |
|
|
21HE23-RBSWITCH LIMIT WHEEL PLUNG SPDTX2 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D5F-2B100SWITCH SNAP ACTION SPST-NC |
0 |
|
- |
D5F | Bulk | Obsolete | SPST-NC | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 250gf | 100gf | - | 0.020" (0.5mm) | 0.0008" (0.020mm) | - | -10°C ~ 60°C |
|
|
24CX12SWITCH SNAP ACTION DPDT 10A 250V |
0 |
|
Datasheet |
CX | Bulk | Active | DPDT | On-Mom | 10A (AC), 150mA (DC) | 250 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 51gf | - | - | 30° | 20° | 75° | -25°C ~ 85°C |
|
|
444EN1-12SWITCH AERO SEALED |
0 |
|
Datasheet |
EN | Bulk | Active | - | - | - | - | - | - | Panel Mount | - | - | - | - | - | - | - | - | - | -54°C ~ 85°C |
|
|
1EN415-RBSWITCH LIMIT PB PNL MT SPDT 1A |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
221EN502-RSWITCH SNAP ACT SPST-NO 4A 28V |
0 |
|
Datasheet |
EN | Bulk | Active | SPST-NO | Off-Mom | 4A (DC) | - | 28 V | Roller Plunger | Panel Mount | Connector | - | - | 1360 ~ 2722gf | 454gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.250" (6.35mm) | - |
|
|
21HE310SWITCH LIMIT WHEEL PLUNG SPDTX2 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2VB2SEALED SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | SPDT x 2 | On-On | 15A (AC), 500mA (DC) | 125 V | 28 V | Roller Plunger | Panel Mount | Screw Terminal | - | - | 2268gf | 227gf | - | - | 0.031" (0.80mm) | 0.250" (6.35mm) | - |
|
|
404HE242-6BSEALED SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | SPDT x 4 | On-On | 7A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Wire Leads | - | - | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.51mm) | 0.500" (12.7mm) | -55°C ~ 125°C |
|
|
51ML7-E1SWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
- | Bulk | Not For New Designs | DPDT | On-On | 10A (AC) | 125 V | - | Side Rotary, Roller | Panel Mount | Screw Terminal | - | - | 1361gf | 113gf | - | 0.118" (3.0mm) | 0.156" (4.0mm) | 0.197" (5.0mm) | - |
