Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11CX212SWITCH SNAP ACT SPDTX2 15A 120V |
0 |
|
Datasheet |
CX | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 51gfm | - | - | 15° | 10° | 90° | -25°C ~ 85°C |
|
|
9007CB300S1SWITCH LIMIT 10A 600V |
0 |
|
Datasheet |
Square D | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LS2A4KY-FPSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Stainless Steel | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
109HM1SWITCH SNAP ACT SPDT 0.5A 125V |
0 |
|
Datasheet |
HM | Bulk | Active | SPDT | On-Mom | 500mA (AC/DC) | 125 V | 28 V | Lever, Straight | Panel Mount | Solder Lug | - | - | 198gf | 28gf | 0.330" (8.4mm) | 0.012" (0.3mm) | 0.006" (0.15mm) | 0.003" (0.076mm) | -184°C ~ 121°C |
|
|
10HF3SEALED SE SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
44506-0080SWITCH SNAP ACTION 2NC 2M CBL |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1EN75-R3SWITCH SNAP ACTION SPDTX2 5A 28V |
0 |
|
Datasheet |
EN | Bulk | Active | SPDT x 2 | On-Mom | 5A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Connector | Environment Sealed | - | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.250" (6.35mm) | -54°C ~ 85°C |
|

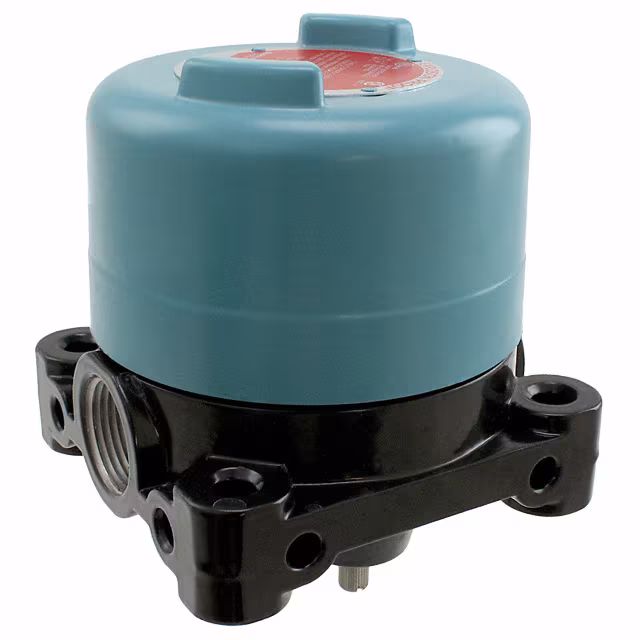

12CX2SWITCH SNAP ACT SPDTX2 20A 120V |
0 |
|
Datasheet |
CX | Bulk | Active | SPDT x 2 | On-Mom | 20A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof | 126gfm | 11gfm | - | 15° | 10° | 90° | -25°C ~ 85°C |
|
|
1EN243-R1SWITCH AERO SEALED |
0 |
|
Datasheet |
EN | Bulk | Active | - | - | - | - | - | - | Panel Mount | - | - | - | - | - | - | - | - | - | -54°C ~ 85°C |
|
|
622HE222-6SWITCH AERO SEALED |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1EN42-RSWITCH SNAP ACTION DPDT 4A 28V |
0 |
|
Datasheet |
EN | Bulk | Active | DPDT | On-Mom | 4A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Connector | - | - | 5443gf | 1814gf | - | 0.040" (1.0mm) | - | 0.250" (6.35mm) | -55°C ~ 85°C |
|
|
1EN575-6SEALED SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | SPDT x 2 | On-On | 4A (DC) | - | - | Round (Pin Plunger) | Panel Mount | Wire Leads | - | - | 1361 ~ 2722gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.51mm) | - | -55°C ~ 85°C |
|
|
704EN61-BSEALED SWIITCH |
0 |
|
Datasheet |
- | Bulk | Active | SPDT x 6 | On-On | 7A (DC) | - | 28 V | Roller Plunger | Panel Mount | Cable Leads | - | - | 1361gf | 680gf | - | - | 0.020" (0.51mm) | - | - |
|
|
1EN370SWITCH ENVIRONM SEALED LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
51ML1SWITCH SNAP ACTION SPDT 20A 120V |
0 |
|
Datasheet |
ML | Bulk | Not For New Designs | SPDT | On-Mom | 20A (AC), 500mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Sealed | 1360gf | 113gf | - | 12° | 4° | 60° | - |
|
|
12CX12-D01SWITCH SNAP ACT SPDTX2 20A 120V |
0 |
|
Datasheet |
CX | Bulk | Active | SPDT x 2 | On-On | 20A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof | 50gfm | - | - | 15° | 10° | 90° | -25°C ~ 85°C |
|
624EN1-6SWITCH SNAP ACTION SPDTX4 7A 28V |
0 |
|
Datasheet |
EN | Bulk | Active | SPDT x 4 | On-Mom | 7A (DC) | - | 28 V | Roller Plunger | Panel Mount | Wire Leads | - | Cable Length 6' | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.125" (3.2mm) | -54°C ~ 85°C |
|
|
21EN375-6SWITCH LIMIT WHEEL PLUNG SPDTX2 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
607.3200.009SWITCH LIMIT |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LS2H4LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Stainless Steel | 19gfm | - | - | 9° | 4° | 66° | -12°C ~ 121°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
