Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
38HM65-ASWITCH HERM SEALED BASIC |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

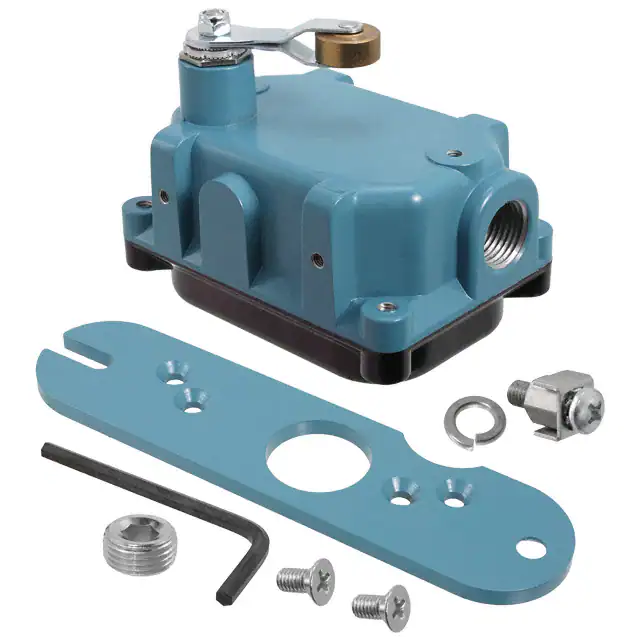

1EX1SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
EX | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Explosion Proof | 227 ~ 567gf | 113gf | - | 0.219" (5.6mm) | 0.007" (0.18mm) | 90° | -40°C ~ 71°C |
|
|
9007TUC3SWITCH LIMIT 30A 600V |
0 |
|
Datasheet |
T | Box | Active | - | - | 30A (AC) | 600 V | - | - | - | - | IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007CR61BSWITCH LIMIT 10A 600V |
0 |
|
Datasheet |
C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007TUD12SWITCH LIMIT SPDT 20A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007TUC12SWITCH LIMIT 30A 600V |
0 |
|
Datasheet |
T | Box | Active | - | - | 30A (AC) | 600 V | - | - | - | - | IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
LSXJ4L-7ASWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Rod | Chassis Mount | Screw Terminal | - | - | 283gf | - | - | 1.000" (25.4mm) | - | - | -12°C ~ 93°C |
|
|
9007C68T10P6Y1852LIMIT SWITCH 600V 10AMP C +OPTIO |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSXP3K3SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Actuator Mounted Right Side | 46gfm | - | - | 9° | 3° | 66° | -12°C ~ 121°C |
|
|
51.301RFOOT SWITCH FS3 U1(3X)STDCLR 1NO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5HM11SWITCH SNAP ACT SPDT 2.5A 115V |
0 |
|
Datasheet |
HM | Bulk | Active | SPDT | On-Mom | 2.5A (AC), 4A (DC) | 115 V | 28 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 198gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.006" (0.15mm) | 0.003" (0.076mm) | -184°C ~ 164°C |
|
EX-N15SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
EX | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Explosion Proof | 1360gf | 340gf | 2.060" (52.3mm) | 0.078" (2.0mm) | 0.004" (0.1mm) | 0.187" (4.75mm) | -40°C ~ 71°C |
|
|
9007TSB1M12SWITCH LIMIT SPDT 20A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|

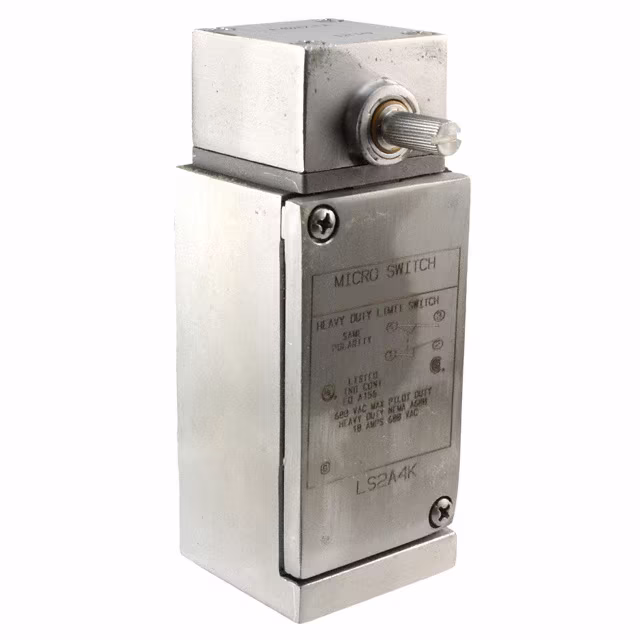

LS2A4KSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Stainless Steel | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
9007TUB3M11SWITCH LIMIT SPDT 20A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
HL100WTR2M10SWITCH LIMIT 3PDT 20A 120V |
0 |
|
Datasheet |
L100/300 | Bulk | Active | 3PDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -18°C ~ 177°C |
|
|
51.313RFOOT SWITCH FS3 SU2 (3X)M 3PEDAL |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LSXJ3K-7ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Rod | Chassis Mount | Screw Terminal | - | - | 283gf | - | - | 1.000" (25.4mm) | - | - | -12°C ~ 93°C |
|
|
BL100WS2M1LIMIT SWITCH 600VAC 10AMP TYPE L |
0 |
|
Datasheet |
L100 | Bulk | Active | DPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -17.8°C ~ 176.7°C |
|
|
1EN196-3SWITCH LIMIT PB PNL MT DPDT 4A |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
