Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1CH25SEALED SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | SPDT x 2 | On-On | 4A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Wire Leads | - | - | 2268 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.51mm) | 0.250" (6.35mm) | - |
|
|
LSYFC7LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Screw Terminal | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.190" (4.8mm) | -12°C ~ 121°C |
|
|
9007C54B2P6Y247LIMIT SWITCH 600V 10AMP C +OPTIO |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007TUB8SWITCH LIMIT SPDT 20A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-On | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007TUB6SWITCH LIMIT SPDT 20A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007TUB5M11SWITCH LIMIT SPDT 20A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
12CX5A-2ASWITCH SNAP ACT SPDTX2 20A 120V |
0 |
|
Datasheet |
CX | Bulk | Obsolete | SPDT x 2 | On-Mom | 20A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof, Nylon Roller Back Mounted | 126gfm | 11gfm | - | 15° | 10° | 90° | -25°C ~ 85°C |
|
|
601.9390.022SWITCH SAFETY HINGE |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.9390.023SWITCH SAFETY HINGE |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.9390.024SWITCH SAFETY HINGE SHS3-U15Z-KR |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.9390.025SWITCH SAFETY HINGE SHS3-U15Z-KR |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LSQ038SWITCH SNAP ACTION DPDT |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | - | - | - | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 9° | 4° | 66° | -12°C ~ 121°C |
|
|
VB-4121SWITCH SNAP ACT SPDTX4 10A 125V |
0 |
|
Datasheet |
VB | Bulk | Active | SPDT x 4 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Bevel Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 1.024" (26.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
VB-4151SWITCH SNAP ACT SPDTX4 10A 125V |
0 |
|
Datasheet |
VB | Bulk | Active | SPDT x 4 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Bevel Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 0.512" (13.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
VB-4221SWITCH SNAP ACT SPDTX4 10A 125V |
0 |
|
Datasheet |
VB | Bulk | Active | SPDT x 4 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 1.260" (32.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
VB-4241SWITCH SNAP ACT SPDTX4 10A 125V |
0 |
|
Datasheet |
VB | Bulk | Active | SPDT x 4 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 0.748" (19.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
VB-4251SWITCH SNAP ACT SPDTX4 10A 125V |
0 |
|
Datasheet |
VB | Bulk | Active | SPDT x 4 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 0.748" (19.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
D4A-4501N-FSWITCH SNAP ACTION DPDT 5A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | DPDT (DB/DM) | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 40gfm | 5.103gfm | - | 15° | 7° | 70° | -40°C ~ 100°C |
|
|
9007C66A2SWITCH LIMIT DPDT 6A 120V |
0 |
|
Datasheet |
9007 | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|

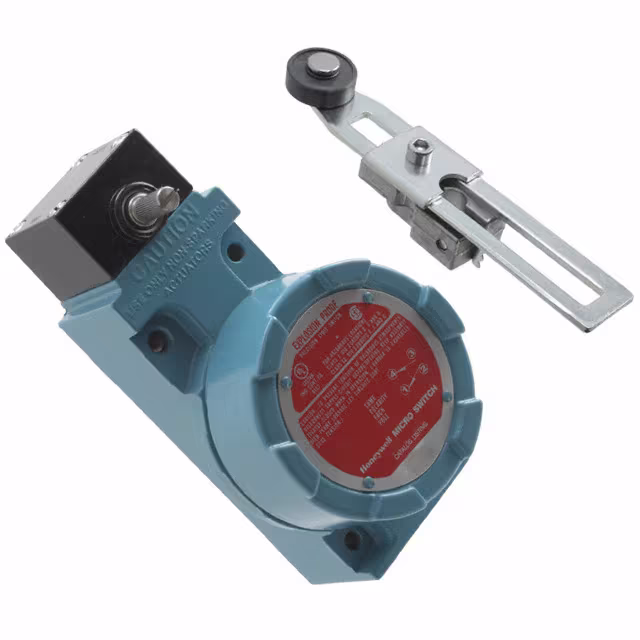

LSXA3K-2CSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | - | Nylon Roller, Front Mounted | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
