Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
604.1121.997SWITCH LIMIT DPST 6A 240V |
0 |
|
Datasheet |
D | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 6A (AC) | 240 V | - | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -30°C ~ 80°C |
|
|
9007ML04S0100SWITCH LIMIT SPDT 6A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
LSXA3NSWITCH SNAP ACT SPST-NC 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Obsolete | SPST-NC | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
XCKD2149G11SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
LSD1FSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Discontinued at Digi-Key | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Plug In | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.016" (0.4mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
LSD8ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Plug In | - | Status Indicator | 1814gf | - | - | 0.071" (1.8mm) | 0.016" (0.4mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
BZG1-2RN34SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
- |
BZG | Bulk | Not For New Designs | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Actuator Seal Boot | 425 ~ 1106gf | 283gf | 1.369" (34.8mm) | 0.078" (2.0mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|

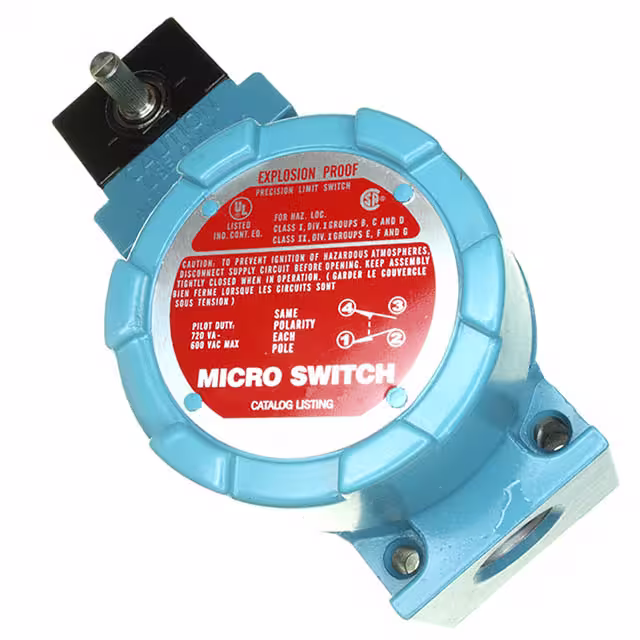

LSXA3KSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
51.451RFOOT SWITCHFL1U1USTDCLRGD 1NO/1N |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1SE3-12SWITCH SNAP ACT SPST-NO 7A 28V |
0 |
|
Datasheet |
SE | Bulk | Active | SPST-NO | Off-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -53°C ~ 105°C |
|
|
GLAA22CSWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCMD4116L5EXSWITCH LIMIT 4PST 0.75A 240V |
0 |
|
Datasheet |
XC | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 750mA (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
|
BAF3-2RN18-LHPGSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
- |
BAF3 | Bulk | Not For New Designs | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | 0°C ~ 70°C |
|
|
BAF3-2RN18-RHPGSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
- |
BAF3 | Bulk | Not For New Designs | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | 0°C ~ 70°C |
|
|
612.1835.833SWITCH LIMIT DPST-NC 10A 240V |
0 |
|
Datasheet |
- | Bulk | Active | DPST-NC | On-Mom | 10A (AC) | 240 V | - | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -30°C ~ 80°C |
|
|
MD3211Q5SWITCH WHEEL PLUNGER ASSMBLY |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3SE51140CH011AC5SWITCH LIMIT DPST 4A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 4A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
D4C-2503SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m, Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4C-2702SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m, Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4C-3301SWITCH SNAP ACTION SPDT 4A 30V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 4A (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 5m, Status Indicator | 1200gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
