Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4C-3503SWITCH SNAP ACTION SPDT 4A 30V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 4A (DC) | - | 30 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m, Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4C-4224SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m | 580gf | 150gf | - | 10° | 3° | 50° | -10°C ~ 70°C |
|
|
D4C-4320SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 5m | 580gf | 150gf | - | 25° | 3° | 40° | -10°C ~ 70°C |
|
|
D4C-4333SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 5m | 1800gf | 450gf | 1.350" (34.3mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4C-6350SWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Spring, Rod | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 5m, Status Indicator | 150gf | - | - | 15° | - | - | -10°C ~ 70°C |
|
|
D4CC-3041SWITCH SNAP ACTION SPDT 1A 30V |
0 |
|
Datasheet |
D4CC | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Round (Pin Plunger) | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 450gf | 1.228" (31.2mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4CC-3043SWITCH SNAP ACTION SPDT 1A 30V |
0 |
|
Datasheet |
D4CC | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Cross Roller Plunger | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 450gf | 1.449" (36.8mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4CC-4010SWITCH SNAP ACTION SPDT 1A 30V |
0 |
|
Datasheet |
D4CC | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Bevel Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4C-1620-RSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 580gf | 150gf | - | 25° | 3° | 40° | -10°C ~ 70°C |
|
|
D4C-2260SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m, Status Indicator | 680gf | 150gf | - | 10° | 3° | 50° | -10°C ~ 70°C |
|
|
D4C-2301SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 5m, Status Indicator | 1200gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4C-2332SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 5m, Status Indicator | 1800gf | 450gf | 1.350" (34.3mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4C-2602SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m, Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
HL-5000-GSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
HL-5000 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC/DC) | 125 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 750gf | 100gf | - | 20° | 12° | 50° | -5°C ~ 60°C |
|
|
WLCA2-P1-NSWITCH LIMIT ROLLER LEVER |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSA6B1SWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | Clockwise Rotation | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
4SE1-6SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SE | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | Waterproof | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -54°C ~ 105°C |
|

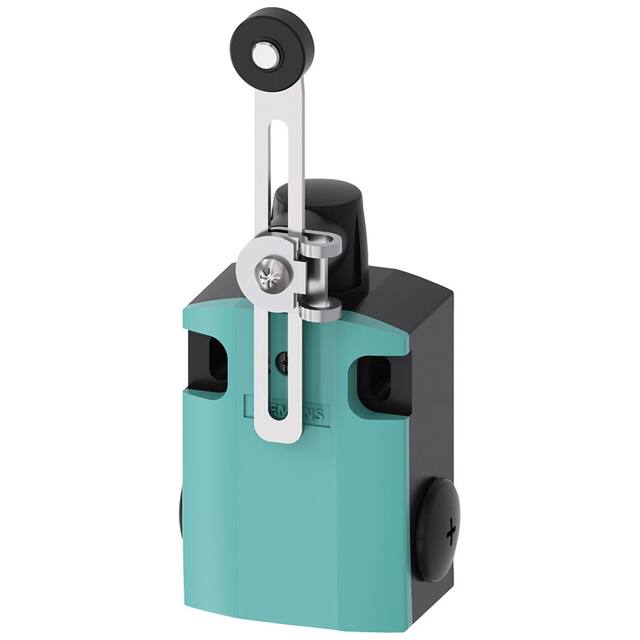

3SE51220LH50SWITCH LIMIT 3PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51220KH01SWITCH LIMIT 3PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51120KH01SWITCH LIMIT 3PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
